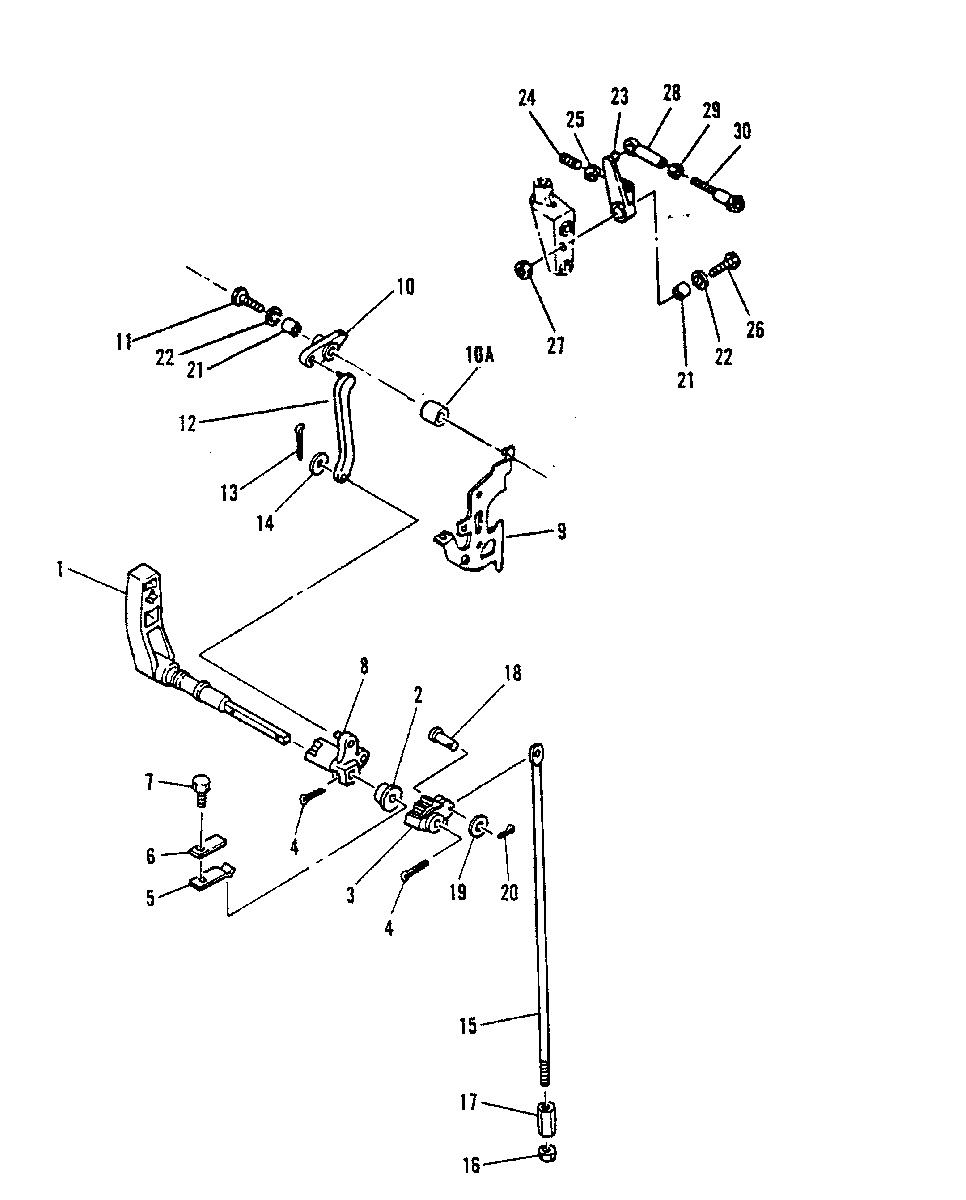

GEAR SHIFT LINKAGE для Mariner - 15C M-684-000101 AND UP
-
№АртикулНазвание
-
184005M GEAR SHIFT HANDLE (MANUAL)GEAR SHIFT HANDLE (MANUAL)
-
184093M GEAR SHIFT HANDLE (ELECTRIC)GEAR SHIFT HANDLE (ELECTRIC)
-
223-84013M BUSHINGBUSHING
-
384009M SHIFT ROD LEVERSHIFT ROD LEVER
-
418-84301M COTTER PINCOTTER PIN
-
584302M SPRING PLATESPRING PLATE
-
684007M BRACKETBRACKET
-
710-91772M BOLTBOLT
-
894565M SHIFT ROD LEVER
(M-002436 ML-303201 E-250236 EL-550596 & Up)SHIFT ROD LEVER
(M-002436 ML-303201 E-250236 EL-550596 & Up) -
8NLA SHIFT ROD LEVER
(M-002435 ML-303200 E-250235 EL-550595 & Below)SHIFT ROD LEVER
(M-002435 ML-303200 E-250235 EL-550595 & Below) -
996612M BRACKET
(M-003636 ML-304901 E-250461 EL-550801 & Up)BRACKET
(M-003636 ML-304901 E-250461 EL-550801 & Up) -
1096613M STOPPER
(M-003636 ML-304901 E-250461 EL-550801 & Up)STOPPER
(M-003636 ML-304901 E-250461 EL-550801 & Up) -
10A23-83310M COLLAR
(M-003636 ML-304901 E-250461 EL-550801 & Up)COLLAR
(M-003636 ML-304901 E-250461 EL-550801 & Up) -
1110-84058M BOLT
(M-003636 ML-304901 E-250461 EL-550801 & Up)BOLT
(M-003636 ML-304901 E-250461 EL-550801 & Up) -
1296614M LINK
(M-003636 ML-304901 E-250461 EL-550801 & Up)LINK
(M-003636 ML-304901 E-250461 EL-550801 & Up) -
994566M BRACKET
(M-003635 ML-304900 E-250460 EL-550800 & Below)BRACKET
(M-003635 ML-304900 E-250460 EL-550800 & Below) -
1083968M STOPPER
(M-003635 ML-304900 E-250460 EL-550800 & Below)STOPPER
(M-003635 ML-304900 E-250460 EL-550800 & Below) -
10A23-84055M COLLAR
(M-003635 ML-304900 E-250460 EL-550800 & Below)COLLAR
(M-003635 ML-304900 E-250460 EL-550800 & Below) -
1110-94544M BOLT
(M-003635 ML-304900 E-250460 EL-550800 & Below)BOLT
(M-003635 ML-304900 E-250460 EL-550800 & Below) -
1284011M LINK
(M-003635 ML-304900 E-250460 EL-550800 & Below)LINK
(M-003635 ML-304900 E-250460 EL-550800 & Below) -
1318-82127M COTTER PINCOTTER PIN
-
1412-82211M WASHERWASHER
-
1584015M SHIFT RODSHIFT ROD
-
1611-82390M NUTNUT
-
1711-81763M NUTNUT
-
1817-84304M CLEVIS PINCLEVIS PIN
-
1912-82211M WASHERWASHER
-
2018-82125M COTTER PINCOTTER PIN
-
2123-83310M COLLARCOLLAR
-
2212-94524M WASHERWASHER
-
2396615M MAGNETO CONTROL LEVERMAGNETO CONTROL LEVER
-
2416-91649M STUDSTUD
-
2511-83763M NUTNUT
-
2610-84058M BOLTBOLT
-
2711-82390M NUTNUT
-
2884100M LINKLINK
-
2911-83763M NUTNUT
-
3084101M LINKLINK
