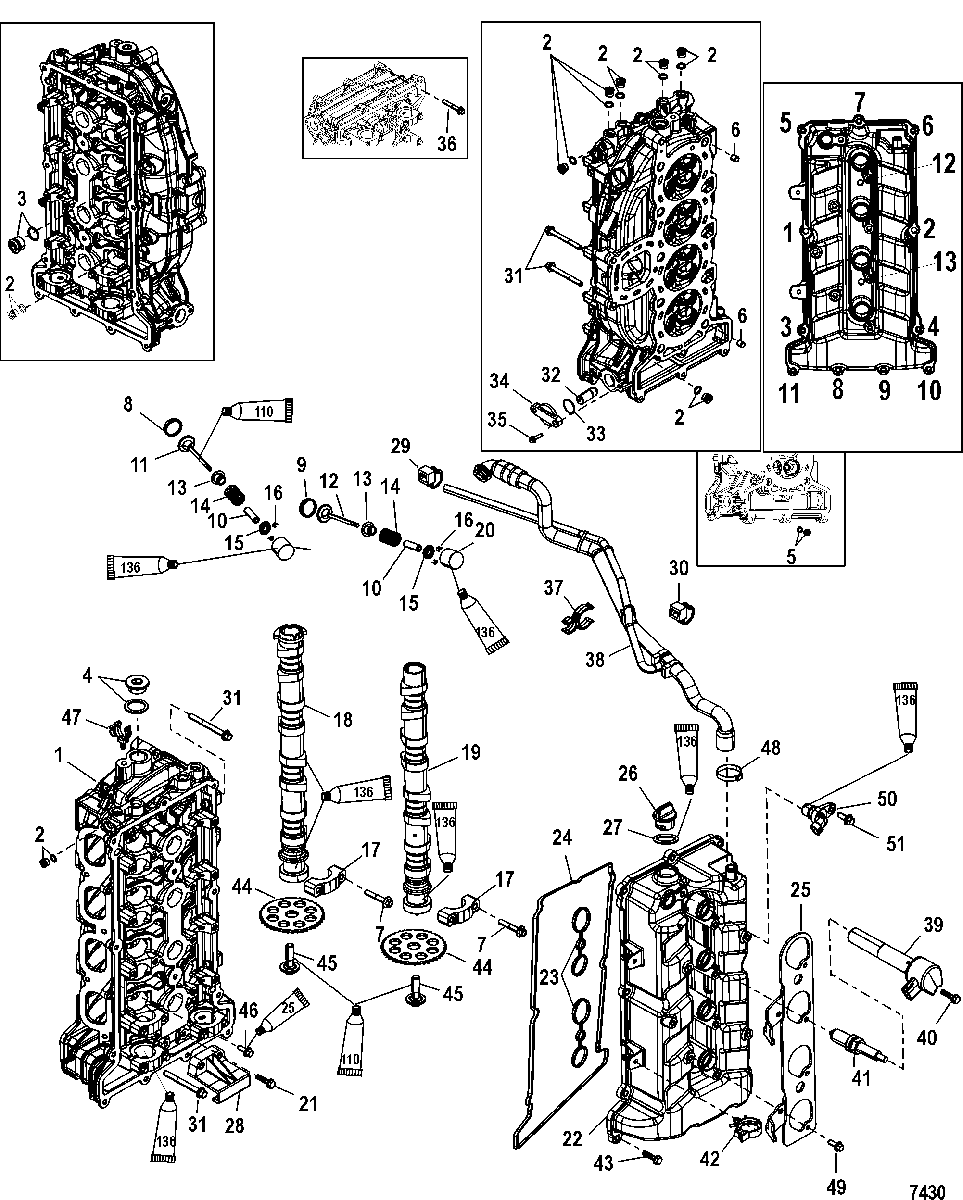

Cylinder Head and Camshaft для Mariner - 175 VERADO (4-STROKE)(4 CYL.) 1B227000 THRU 1B381711
-
№АртикулНазвание
-
-900-880534A08 CYLINDER HEAD ASSEMBLY, CompleteCYLINDER HEAD ASSEMBLY, Complete
-
1900-8M0110154 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
219-889767 PLUG, (12 mm)PLUG, (12 mm)
-
319-891953 PLUG, (18 mm)PLUG, (18 mm)
-
419-896951 PLUG, (24 mm)PLUG, (24 mm)
-
519-8M0087446 PLUG, (10 mm)PLUG, (10 mm)
-
617-880524 PIN, Dowel (14 mm)PIN, Dowel (14 mm)
-
710-892454035 BOLT, (M6 x 36)BOLT, (M6 x 36)
-
8880533 SEAT, Intake ValveSEAT, Intake Valve
-
98M0089477 SEAT, Exhaust ValveSEAT, Exhaust Valve
-
10880537 GUIDE, Intake and Exhaust ValvesGUIDE, Intake and Exhaust Valves
-
1120-898907 VALVE, IntakeVALVE, Intake
-
1220-898908 VALVE, ExhaustVALVE, Exhaust
-
1326-896880 SEAL, ValveSEAL, Valve
-
1424-8M0103092 SPRING, Intake and Exhaust ValveSPRING, Intake and Exhaust Valve
-
158M0908500 RETAINER ASSEMBLY, ValvesRETAINER ASSEMBLY, Valves
-
1628-880543 KEYKEY
-
17NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
18400-892861T02 CAMSHAFT ASSEMBLY, IntakeCAMSHAFT ASSEMBLY, Intake
-
19400-892862T03 CAMSHAFT ASSEMBLY, ExhaustCAMSHAFT ASSEMBLY, Exhaust
-
20899912001 TAPPET
(2.996)TAPPET
(2.996) -
20899912002 TAPPET
(3.021)TAPPET
(3.021) -
20899912003 TAPPET
(3.046)TAPPET
(3.046) -
20899912004 TAPPET
(3.071)TAPPET
(3.071) -
20899912005 TAPPET
(3.096)TAPPET
(3.096) -
20899912006 TAPPET
(3.118)TAPPET
(3.118) -
20899912007 TAPPET
(3.138)TAPPET
(3.138) -
20899912008 TAPPET
(3.158)TAPPET
(3.158) -
20899912009 TAPPET
(3.178)TAPPET
(3.178) -
20899912010 TAPPET
(3.198)TAPPET
(3.198) -
20899912011 TAPPET
(3.218)TAPPET
(3.218) -
20899912012 TAPPET
(3.238)TAPPET
(3.238) -
20899912013 TAPPET
(3.258)TAPPET
(3.258) -
20899912014 TAPPET
(3.278)TAPPET
(3.278) -
20899912015 TAPPET
(3.298)TAPPET
(3.298) -
20899912016 TAPPET
(3.318)TAPPET
(3.318) -
20899912017 TAPPET
(3.338)TAPPET
(3.338) -
20899912018 TAPPET
(3.358)TAPPET
(3.358) -
20899912019 TAPPET
(3.378)TAPPET
(3.378) -
20899912020 TAPPET
(3.398)TAPPET
(3.398) -
20899912021 TAPPET
(3.418)TAPPET
(3.418) -
20899912022 TAPPET
(3.438)TAPPET
(3.438) -
20899912023 TAPPET
(3.458)TAPPET
(3.458) -
20899912024 TAPPET
(3.478)TAPPET
(3.478) -
20899912025 TAPPET
(3.498)TAPPET
(3.498) -
20899912026 TAPPET
(3.518)TAPPET
(3.518) -
20899912027 TAPPET
(3.538)TAPPET
(3.538) -
20899912028 TAPPET
(3.558)TAPPET
(3.558) -
20899912029 TAPPET
(3.578)TAPPET
(3.578) -
20899912030 TAPPET
(3.598)TAPPET
(3.598) -
20899912031 TAPPET
(3.621)TAPPET
(3.621) -
20899912032 TAPPET
(3.646)TAPPET
(3.646) -
20899912033 TAPPET
(3.671)TAPPET
(3.671) -
20899912034 TAPPET
(3.696)TAPPET
(3.696) -
20899912035 TAPPET
(3.721)TAPPET
(3.721) -
2110-892454030 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
22880553A07 COVER ASSEMBLY, CamCOVER ASSEMBLY, Cam
-
23892584 SEALSEAL
-
24892893 SEALSEAL
-
258M0010625 PLATE, CoilPLATE, Coil
-
26859578A1 PLUG ASSEMBLY, OilPLUG ASSEMBLY, Oil
-
2725-90196 O-RING, (.921 x .139)O-RING, (.921 x .139)
-
28880558 GUIDE, ShortGUIDE, Short
-
2954-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
3054-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
3110-8M0103817 SCREW, (M8 x 60)SCREW, (M8 x 60)
-
32898463A01 TENSIONER ASSEMBLYTENSIONER ASSEMBLY
-
3325-898836 O-RING, Orange (Also part of Complete Cylinder Head)O-RING, Orange (Also part of Complete Cylinder Head)
-
341100-8M0064752 END CAP, TensionerEND CAP, Tensioner
-
3510-8M0103807 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
3610-8M0103809 SCREW, (M6 x 40) Stainless SteelSCREW, (M6 x 40) Stainless Steel
-
3754-892833 CLIPCLIP
-
3832-892812A03 HOSE ASSEMBLY, BreatherHOSE ASSEMBLY, Breather
-
39339-880615T01 COIL ASSEMBLYCOIL ASSEMBLY
-
4010-8M0103807 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
4133-889246Q39 SPARK PLUG, NGK-ILFR6GSPARK PLUG, NGK-ILFR6G
-
4254-858954 CLIP, (.625)CLIP, (.625)
-
4310-8M0103807 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
4443-880550 SPROCKET, Cam DriveSPROCKET, Cam Drive
-
4510-8M0021532 SCREW, (M12 x 40) (Left Hand)SCREW, (M12 x 40) (Left Hand)
-
4610-8M0103804 SCREW, (M6 x 12) Stainless SteelSCREW, (M6 x 12) Stainless Steel
-
4754-889746001 CLIPCLIP
-
4854-888988019 CLAMP, (22.6 mm)CLAMP, (22.6 mm)
-
4910-8M0103804 SCREW, (M6 x 12) Stainless SteelSCREW, (M6 x 12) Stainless Steel
-
508M0011987 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
5110-8M0103805 SCREW, (M6 x 16) Stainless SteelSCREW, (M6 x 16) Stainless Steel
-
-27-896142A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-8M0055433 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
