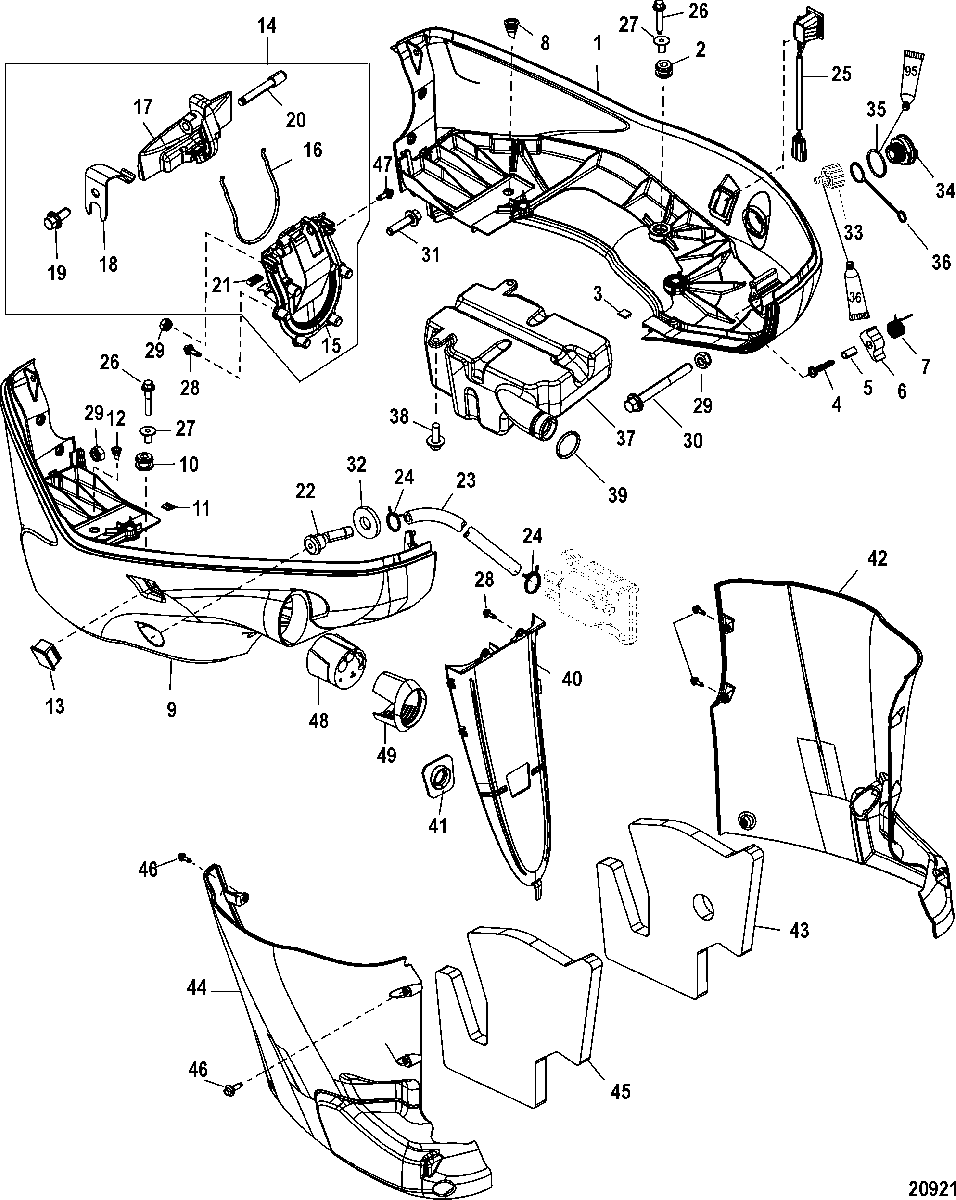

Rear Cowl для Mariner - 175 VERADO (4-STROKE)(4 CYL.) 1B227000 THRU 1B381711

№

Артикул

Название
-

NSS NOT SOLD SEPARATE, Pan Assembly-Complete

NOT SOLD SEPARATE, Pan Assembly-Complete

0 ₽
1

895846A08 PAN ASSEMBLY, Port

PAN ASSEMBLY, Port

165 830 ₽
2

25-896671 GROMMET

GROMMET

90 ₽
3

896865 SEAL, Front

SEAL, Front

530 ₽
4

10-888950020 SCREW, (M4 x 20 mm)

SCREW, (M4 x 20 mm)

500 ₽
5

23-898408 SPACER

SPACER

2 260 ₽
6

898354 PAWL

PAWL

4 540 ₽
7

24-898353 SPRING

SPRING

1 350 ₽
8

888819002 DRAIN, Cowl

DRAIN, Cowl

110 ₽
9

895846A08 PAN ASSEMBLY, Starboard

PAN ASSEMBLY, Starboard

165 830 ₽
10

25-896671 GROMMET

GROMMET

90 ₽
11

896974 SEAL, Back

SEAL, Back

290 ₽
12

888819002 DRAIN, Cowl

DRAIN, Cowl

110 ₽
13

19-897203 PLUG

PLUG

610 ₽
14

NSS NOT SOLD SEPARATE, Latch Assembly-Complete

NOT SOLD SEPARATE, Latch Assembly-Complete

0 ₽
15

8M0113897 PANEL ASSEMBLY, Access

PANEL ASSEMBLY, Access

30 050 ₽
16

896927 SEAL

SEAL

1 110 ₽
17

896928A01 LEVER ASSEMBLY, Rail Latch

LEVER ASSEMBLY, Rail Latch

6 100 ₽
18

24-896933 SPRING, Leaf

SPRING, Leaf

1 150 ₽
19

10-88552514 SCREW, (M6 x 14) Stainless Steel

SCREW, (M6 x 14) Stainless Steel

320 ₽
20

17-896932 PIN, Lever

PIN, Lever

4 890 ₽
21

898476 BUTTON, Latch

BUTTON, Latch

560 ₽
22

22-895797001 FITTING

FITTING

340 ₽
23

32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 21 Inches)

HOSE, (57.00 Inches Bulk) (Cut to 21 Inches)

5 260 ₽
24

54-895851 CLAMP, (8.00 Inches)

CLAMP, (8.00 Inches)

150 ₽
25

87-8M0042300 SWITCH, Trim

SWITCH, Trim

10 650 ₽
26

10-897964 SCREW, (M6)

SCREW, (M6)

480 ₽
27

23-8M8023048 BUSHING

BUSHING

1 590 ₽
28

10-892073002 SHOULDER SCREW, (M6)

SHOULDER SCREW, (M6)

210 ₽
29

11-401386 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel

330 ₽
30

10-897657055 SCREW, (M6 x 55)

SCREW, (M6 x 55)

1 280 ₽
31

10-897657025 SCREW, (M6 x 25)

SCREW, (M6 x 25)

490 ₽
32

23-892427 SPACER

SPACER

560 ₽
33

22-885361A01 FITTING ASSEMBLY, Flush

FITTING ASSEMBLY, Flush

520 ₽
34

22-888958001 PLUG

PLUG

950 ₽
35

25-888957 O-RING

O-RING

110 ₽
36

889823001 TETHER

TETHER

130 ₽
37

896925A01 PLENUM, Exhaust
(Mounting tabs have 15mm outside diameter)

PLENUM, Exhaust
(Mounting tabs have 15mm outside diameter)

6 970 ₽
37

896925A01 PLENUM KIT, Exhaust
(Mounting tabs have 18mm outside diameter)

PLENUM KIT, Exhaust
(Mounting tabs have 18mm outside diameter)

6 970 ₽
38

10-892073002 SHOULDER SCREW, (M6)
(Use with exhaust plenum that has mounting tabs of 18mm outside diameter)

SHOULDER SCREW, (M6)
(Use with exhaust plenum that has mounting tabs of 18mm outside diameter)

210 ₽
38

10-4010620 SCREW, (M6 x 20) Stainless Steel
(Use with exhaust plenum that has mounting tabs of 15mm outside diameter)

SCREW, (M6 x 20) Stainless Steel
(Use with exhaust plenum that has mounting tabs of 15mm outside diameter)

210 ₽
39

25-889828 O-RING, (.924 x .103)

O-RING, (.924 x .103)

130 ₽
40

896618A02 COVER ASSEMBLY, Rear

COVER ASSEMBLY, Rear

6 200 ₽
41

896924 BOOT, Idle Exhaust

BOOT, Idle Exhaust

1 860 ₽
-

NSS NOT SOLD SEPARATE, Chap Assembly (Starboard and Port)

NOT SOLD SEPARATE, Chap Assembly (Starboard and Port)

0 ₽
42

897593T02 CHAP ASSEMBLY, Port

CHAP ASSEMBLY, Port

48 510 ₽
43

897204 SOUND BLANKET, Starboard

SOUND BLANKET, Starboard

6 920 ₽
44

897593T02 CHAP ASSEMBLY, Starboard

CHAP ASSEMBLY, Starboard

48 510 ₽
45

897205 SOUND BLANKET, Port

SOUND BLANKET, Port

6 820 ₽
46

10-892073002 SHOULDER SCREW, (M6)

SHOULDER SCREW, (M6)

210 ₽
47

8M0005773 SCREW, (M6)

SCREW, (M6)

170 ₽
48

25-897169 GROMMET

GROMMET

680 ₽
49

8M0043519 ADAPTOR

ADAPTOR

800 ₽
