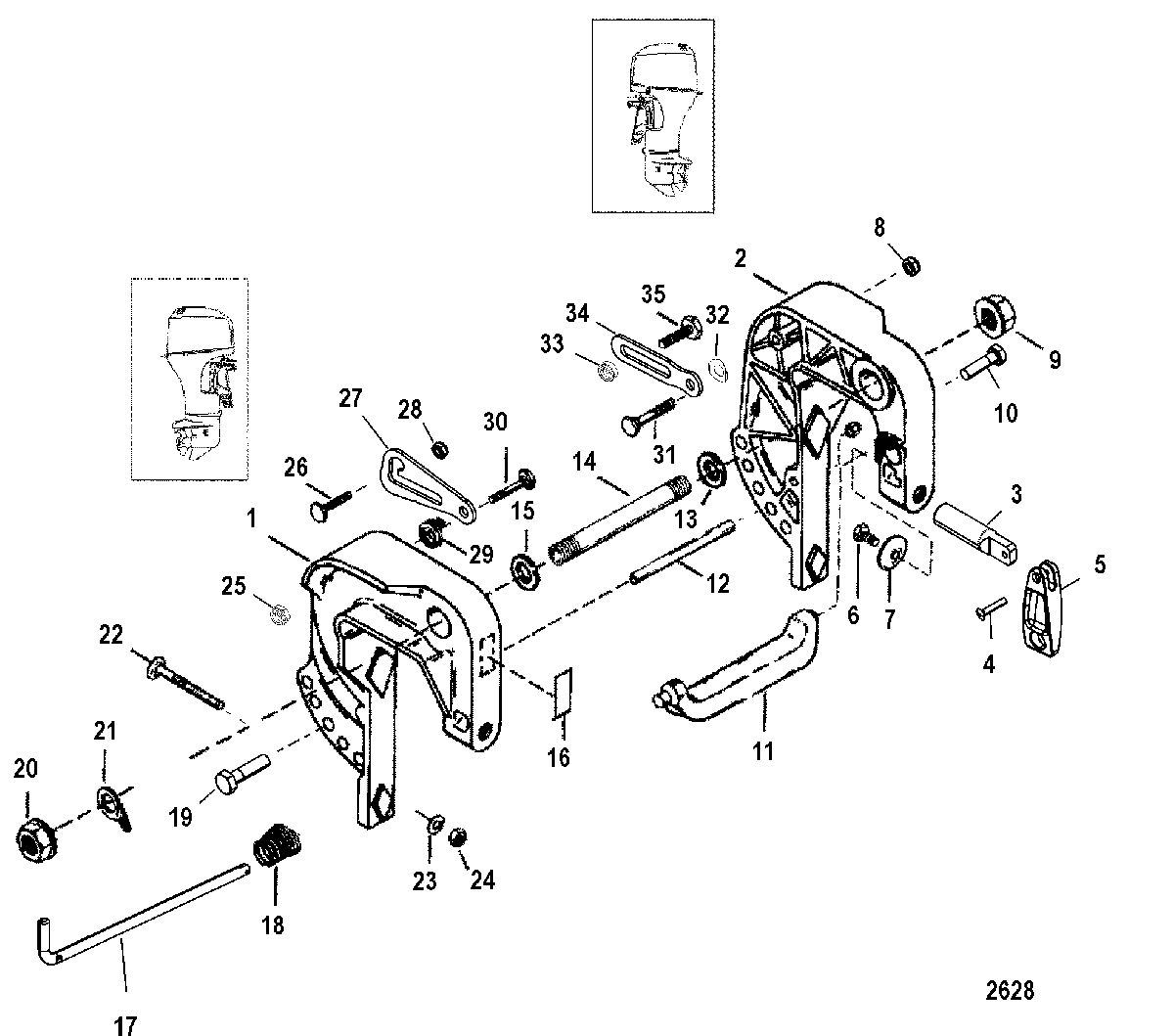

Clamp Bracket Assembly для Mariner - 20 JET 9807909 THRU 0P016999
-
№АртикулНазвание
-
11497-8796A7 BRACKET ASSEMBLY, Transom
(STBD.) (BLACK)BRACKET ASSEMBLY, Transom
(STBD.) (BLACK) -
11497-8796A7 BRACKET ASSEMBLY, Transom
(STBD.) (GRAY)BRACKET ASSEMBLY, Transom
(STBD.) (GRAY) -
11497-8796A7 BRACKET ASSEMBLY, Transom
(STBD.) (TRACKER GRAPHITE GRAY)BRACKET ASSEMBLY, Transom
(STBD.) (TRACKER GRAPHITE GRAY) -
21497-8794A9 BRACKET ASSEMBLY, Transom
(PORT) (BLACK)BRACKET ASSEMBLY, Transom
(PORT) (BLACK) -
21497-8794A9 BRACKET ASSEMBLY, Transom
(PORT) (GRAY)BRACKET ASSEMBLY, Transom
(PORT) (GRAY) -
21497-8794A9 BRACKET ASSEMBLY, Transom
(PORT) (TRACKER GRAPHITE GRAY)BRACKET ASSEMBLY, Transom
(PORT) (TRACKER GRAPHITE GRAY) -
310-92767A3 THUMB SCREW ASSEMBLY, (16 mm)THUMB SCREW ASSEMBLY, (16 mm)
-
4NSS NOT SOLD SEPARATE, RivetNOT SOLD SEPARATE, Rivet
-
5NSS NOT SOLD SEPARATE, HandleNOT SOLD SEPARATE, Handle
-
610-768042 SHOULDER SCREW, HexSHOULDER SCREW, Hex
-
712-818884 WASHERWASHER
-
811-826709109 NUT, (.250-28)NUT, (.250-28)
-
911-93164 NUT, (.875)NUT, (.875)
-
1010-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1141042 HANDLEHANDLE
-
1223-818538 SPACERSPACER
-
1312-71421 WASHER, NylonWASHER, Nylon
-
148M0035075 TILT TUBETILT TUBE
-
1512-71421 WASHER, NylonWASHER, Nylon
-
1637-8237011 DECAL, Co-PilotDECAL, Co-Pilot
-
1717-56373A2 PIN ASSEMBLY, TiltPIN ASSEMBLY, Tilt
-
1824-92995 SPRINGSPRING
-
1910-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
2011-93164 NUT, (.875)NUT, (.875)
-
2154-8M0085928 CLIPCLIP
-
2210-814945 SCREW, (.312-18 x 3.500) Stainless SteelSCREW, (.312-18 x 3.500) Stainless Steel
-
2312-67981 WASHERWASHER
-
2411-815848 NUT, (.312)NUT, (.312)
-
2511-826709109 NUT, (.250-28)NUT, (.250-28)
-
2610-41523 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
2796965 LEVER, STARBOARD SIDELEVER, STARBOARD SIDE
-
2811-826709109 NUT, (.250-28)NUT, (.250-28)
-
2924-44581 SPRINGSPRING
-
3010-41524 SCREW, (.250-28 x 1.75)SCREW, (.250-28 x 1.75)
-
3110-41524 SCREW, (.250-28 x 1.75)SCREW, (.250-28 x 1.75)
-
3213-31030 WAVE WASHERWAVE WASHER
-
3311-826709109 NUT, (.250-28)NUT, (.250-28)
-
3490901 STRAP, PORT SIDESTRAP, PORT SIDE
-
3510-41523 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
