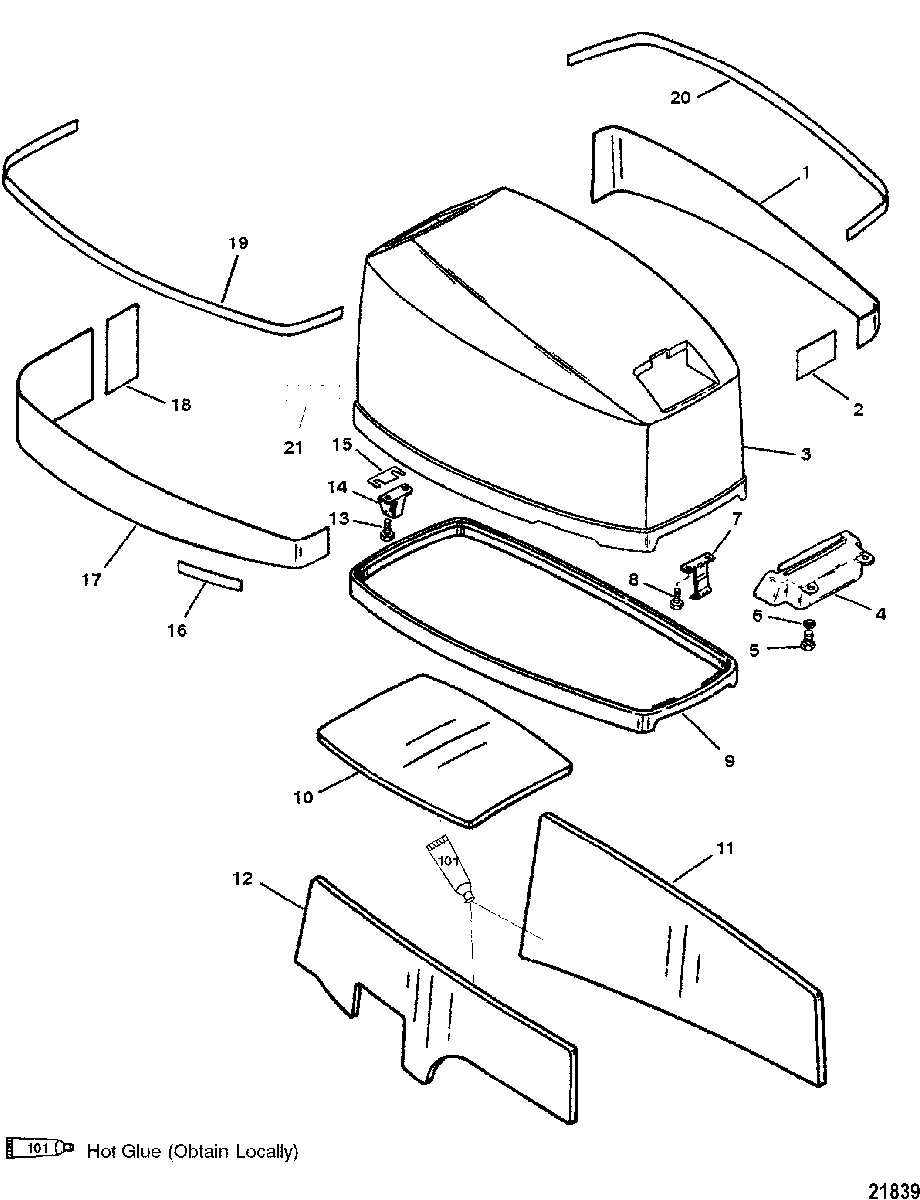

Top Cowl для Mariner - 20 JET 9807909 THRU 0P016999
-
№АртикулНазвание
-
1NSS NOT SOLD SEPARATE, Decal - Component of Decal SetNOT SOLD SEPARATE, Decal - Component of Decal Set
-
2NSS NOT SOLD SEPARATE, Decal - Component of Decal SetNOT SOLD SEPARATE, Decal - Component of Decal Set
-
32190-9163T19 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
32190-9163T21 TOP COWL ASSEMBLY
(SILVER)TOP COWL ASSEMBLY
(SILVER) -
32190-9163T20 TOP COWL ASSEMBLY
(GRAPHITE GRAY)TOP COWL ASSEMBLY
(GRAPHITE GRAY) -
444311F3 SHIELD (REAR)
(BLACK)SHIELD (REAR)
(BLACK) -
444311F3 SHIELD (REAR)
(GRAY)SHIELD (REAR)
(GRAY) -
444311F3 SHIELD (REAR)
(SILVER)SHIELD (REAR)
(SILVER) -
444311F4 SHIELD (REAR)
(GRAPHITE GRAY)SHIELD (REAR)
(GRAPHITE GRAY) -
510-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
612-73288 WASHER, (.220 x .500 x .030) Stainless SteelWASHER, (.220 x .500 x .030) Stainless Steel
-
717221 LATCH, CowlLATCH, Cowl
-
810-400033 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
98M0043411 SEAL, CowlSEAL, Cowl
-
10NSS NOT SOLD SEPARATE, Sound Blanket-Top-Part of Reference #12NOT SOLD SEPARATE, Sound Blanket-Top-Part of Reference #12
-
11NSS NOT SOLD SEPARATE, Sound Blanket-Port-Part of Reference #12NOT SOLD SEPARATE, Sound Blanket-Port-Part of Reference #12
-
12815625A02 SOUND BLANKET KITSOUND BLANKET KIT
-
1310-400033 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
14812413A1 BRACKET ASSEMBLY, RollerBRACKET ASSEMBLY, Roller
-
1518517 SHIM, Cowl LatchSHIM, Cowl Latch
-
1637-111851 SHIFT DECAL (Use where Applicable)
(BLACK)SHIFT DECAL (Use where Applicable)
(BLACK) -
1637-82408812 DECAL, Shift (Use where Applicable)
(GRAY)DECAL, Shift (Use where Applicable)
(GRAY) -
17NSS NOT SOLD SEPARATE, Decal - Component of Decal SetNOT SOLD SEPARATE, Decal - Component of Decal Set
-
18NSS NOT SOLD SEPARATE, Decal - Component of Decal SetNOT SOLD SEPARATE, Decal - Component of Decal Set
-
19NSS NOT SOLD SEPARATE, Decal-Bottom Stripe
(MARINER)NOT SOLD SEPARATE, Decal-Bottom Stripe
(MARINER) -
20NSS NOT SOLD SEPARATE, Decal-Top Stripe
(MARINER)NOT SOLD SEPARATE, Decal-Top Stripe
(MARINER) -
2137-855577A5 DECAL, EPA Label Information (INSIDE TOP COWL)
(1998 - USA)DECAL, EPA Label Information (INSIDE TOP COWL)
(1998 - USA) -
2137-855920 DECAL, EPA Label Information (INSIDE TOP COWL)
(1998 - EXPORT)DECAL, EPA Label Information (INSIDE TOP COWL)
(1998 - EXPORT)
