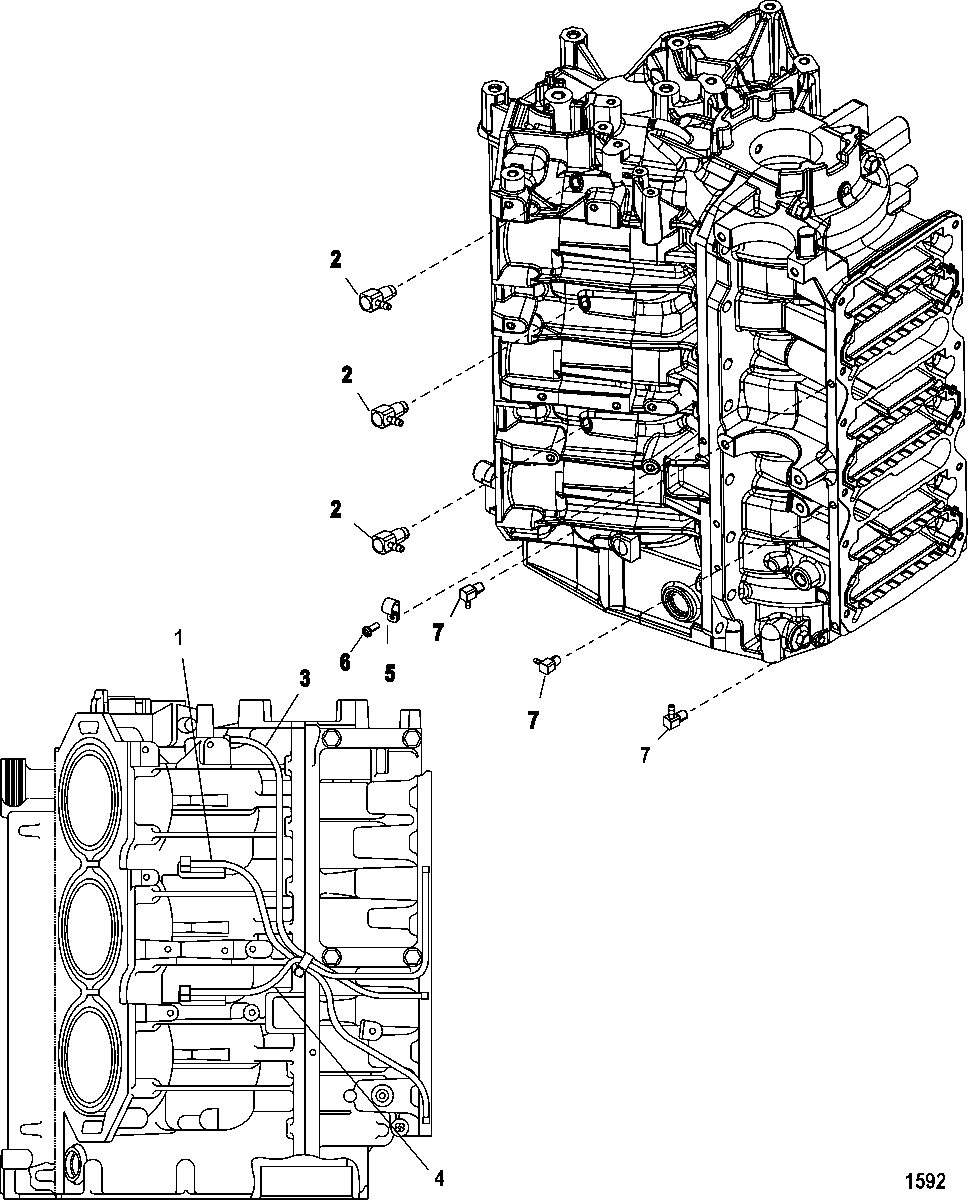

Starboard Center Main Oiling System для Mariner - 200 (DFI) 3.0L 1B417702 THRU 1B504988
-
№АртикулНазвание
-
132-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 15-1/2 Inches)TUBING, (38.00 Inches Bulk) (Cut to 15-1/2 Inches)
-
221-8592352 CHECK VALVE, 90 Degree (.0625-27)CHECK VALVE, 90 Degree (.0625-27)
-
332-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 16-1/2 Inches)TUBING, (38.00 Inches Bulk) (Cut to 16-1/2 Inches)
-
432-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 15 Inches)TUBING, (38.00 Inches Bulk) (Cut to 15 Inches)
-
554-23567 CLIPCLIP
-
610-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
722-887801 FITTING, Elbow 90 Degree (.0625-27)FITTING, Elbow 90 Degree (.0625-27)
-
-854198A07 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-877869A07 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225)
