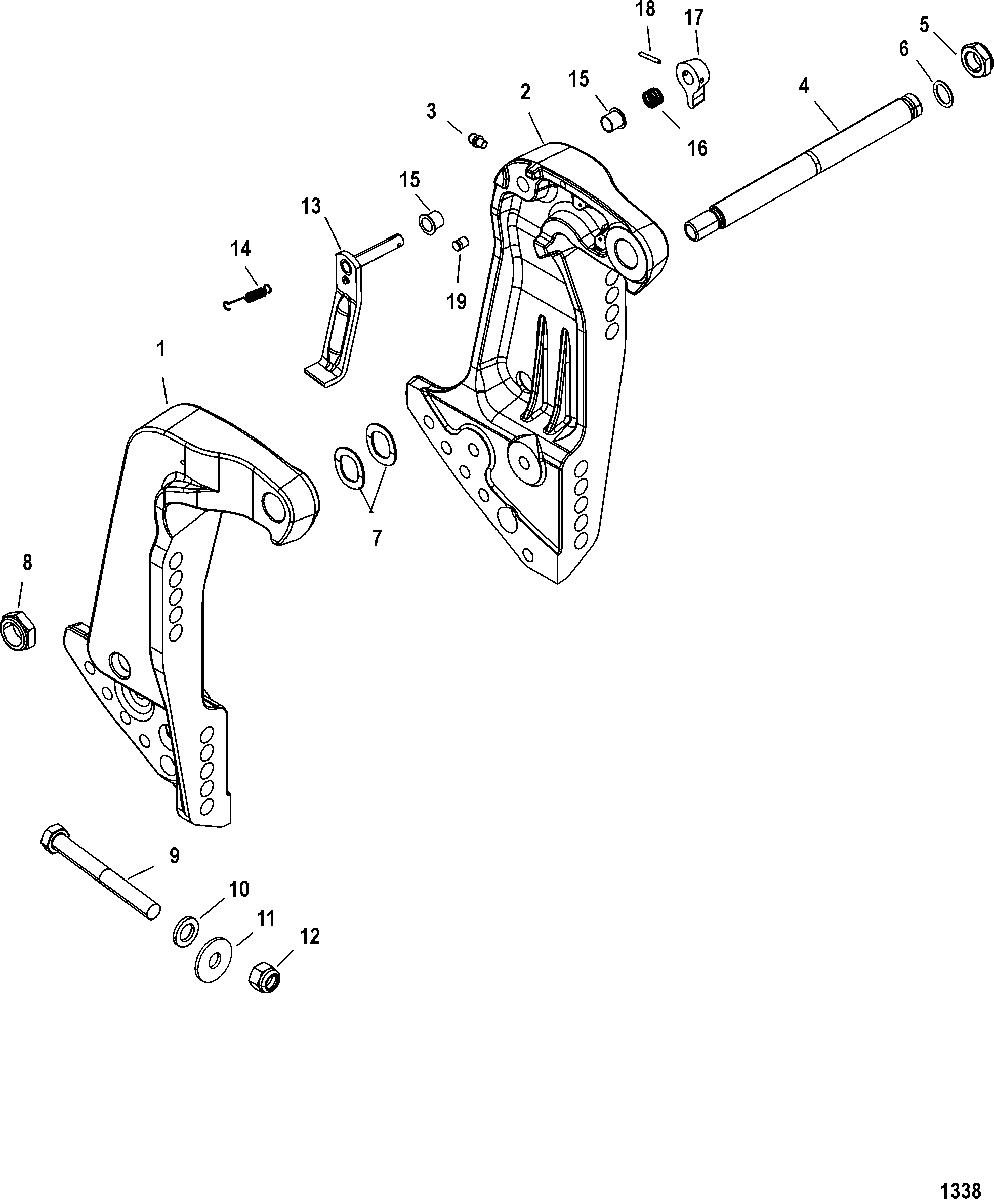

Transom Brackets для Mariner - 200 (DFI) 3.0L 1B417702 THRU 1B504988
-
№АртикулНазвание
-
13426-828334T03 BRACKET ASSEMBLY, Transom-StarboardBRACKET ASSEMBLY, Transom-Starboard
-
23425-828333T08 BRACKET ASSEMBLY, Transom-PortBRACKET ASSEMBLY, Transom-Port
-
322-98727 FITTING, Grease, PortFITTING, Grease, Port
-
4826125A1 TILT TUBETILT TUBE
-
511-826135 NUT, (1.00-14) Nylon InsertNUT, (1.00-14) Nylon Insert
-
625-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
713-88750 WASHERWASHER
-
811-826164 NUT, (.875-14)NUT, (.875-14)
-
910-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
910-8M0071543 SCREW, (.500-20 x 5 Inches)SCREW, (.500-20 x 5 Inches)
-
1012-54012 WASHER, (.530 x .870 x .105) Stainless SteelWASHER, (.530 x .870 x .105) Stainless Steel
-
1112-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1211-82671117 NUT, (.500-20)NUT, (.500-20)
-
138M0115104 LEVER ASSEMBLY, Tilt LockLEVER ASSEMBLY, Tilt Lock
-
1424-830899 SPRING, TensionSPRING, Tension
-
1523-65830 NYLINERNYLINER
-
1624-830900 SPRING, CompressionSPRING, Compression
-
1799633 KNOBKNOB
-
1817-99615 PIN, GroovePIN, Groove
-
1917-893709 PINPIN
