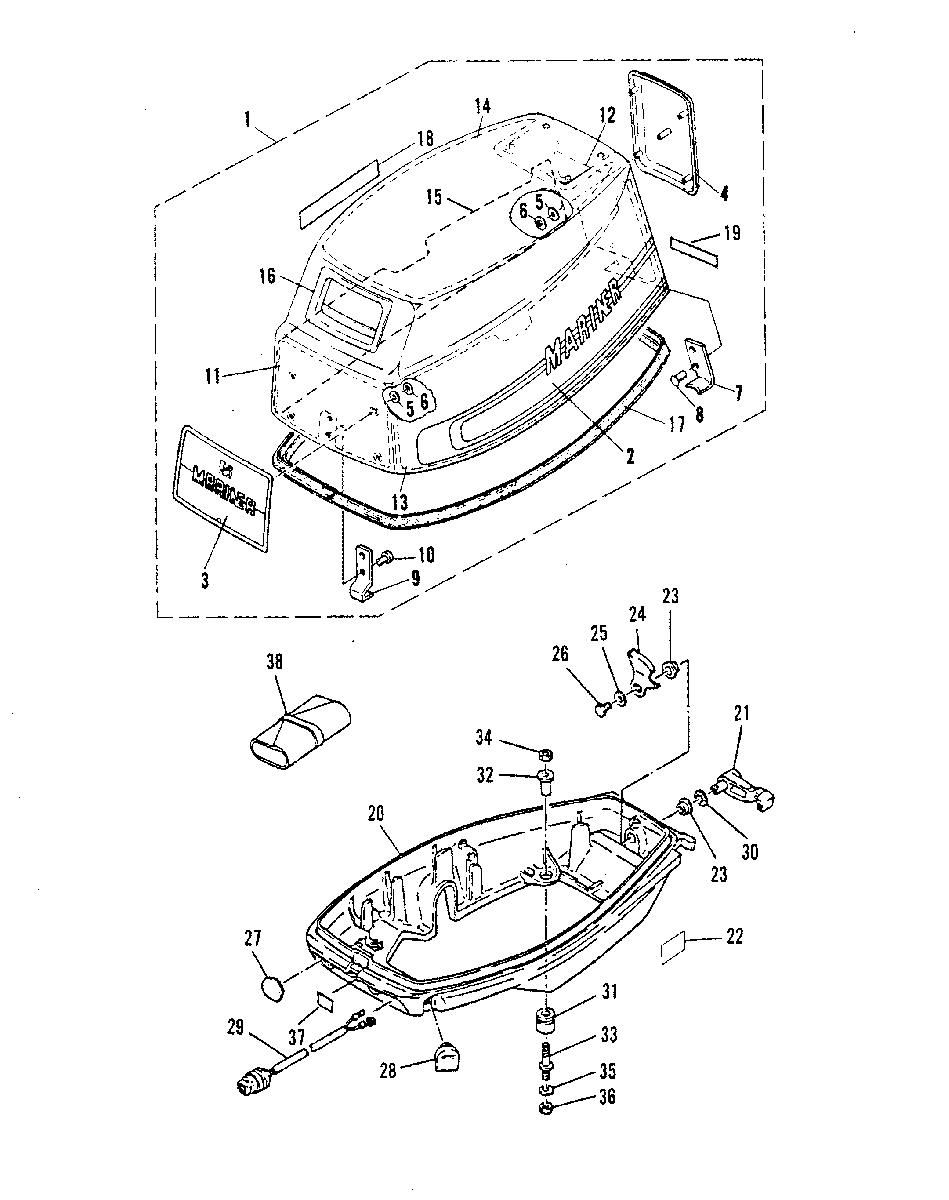

COWLING для Mariner - 20C (THRU PROP. EXHAUST) 6A9-300101 THRU 306542
-
№АртикулНазвание
-
12168-9290M TOP COWL ASS'Y
SERIAL 00002351-09999999TOP COWL ASS'Y
SERIAL 00002351-09999999 -
12168-6878M TOP COWL ASS'Y
SERIAL 00000000-00002350TOP COWL ASS'Y
SERIAL 00000000-00002350 -
237-95640M DECAL, SIDE AND REAR SET
SERIAL 00002351-09999999DECAL, SIDE AND REAR SET
SERIAL 00002351-09999999 -
237-81114M DECAL, SIDE SET
SERIAL 00000000-00002350DECAL, SIDE SET
SERIAL 00000000-00002350 -
337-95641M EMBLEM, FRONT
SERIAL 00002351-09999999EMBLEM, FRONT
SERIAL 00002351-09999999 -
382898M APPLIQUE, FRONT
SERIAL 00000000-00002350APPLIQUE, FRONT
SERIAL 00000000-00002350 -
482902M APPLIQUE, REAR
SERIAL 00000000-00008215APPLIQUE, REAR
SERIAL 00000000-00008215 -
512-80884M WASHER, APPLIQUE NUT
SERIAL 00000000-00002350WASHER, APPLIQUE NUT
SERIAL 00000000-00002350 -
611-82927M MUT, APPLIQUE ATTACHING
SERIAL 00000000-00002350MUT, APPLIQUE ATTACHING
SERIAL 00000000-00002350 -
783212M HOLDER, CLAMP BANDHOLDER, CLAMP BAND
-
817-84903M RIVETRIVET
-
983137M HOOKHOOK
-
1017-83140M RIVETRIVET
-
1184323M SOUND BLANKETSOUND BLANKET
-
1284323M SOUND BLANKETSOUND BLANKET
-
1383125M SOUND BLANKETSOUND BLANKET
-
1483232M SOUND BLANKETSOUND BLANKET
-
1583125M SOUND BLANKET
SERIAL 00008216-09999999SOUND BLANKET
SERIAL 00008216-09999999 -
1680601M SEAL, RUBBER-STARTERSEAL, RUBBER-STARTER
-
1784901M SEAL, TOP COWLSEAL, TOP COWL
-
1837-81202M INDICATOR, SHIFTINDICATOR, SHIFT
-
1937-95547M DECAL, ELECTRIC MODEL
SERIAL 00250541-09999999DECAL, ELECTRIC MODEL
SERIAL 00250541-09999999 -
202168-9349M BOTTOM COWLBOTTOM COWL
-
2184913M LEVER, COWL CLAMPLEVER, COWL CLAMP
-
2237-83054M GRAPHIC, SIDE (HP)GRAPHIC, SIDE (HP)
-
2323-81949M BUSHING,COWL CLAMP LEVERBUSHING,COWL CLAMP LEVER
-
2454-84914M CLAMP, COWLCLAMP, COWL
-
2512-81794M WASHERWASHER
-
2610-84088M BOLTBOLT
-
2725-83988M GROMMET, BOTTOM COWL (MANUAL)GROMMET, BOTTOM COWL (MANUAL)
-
2825-826981M GROMMET, BOTTOM COWLGROMMET, BOTTOM COWL
-
2987-93102M STOP SWITHCH(MANUAL)STOP SWITHCH(MANUAL)
-
3013-81869M WASHER, WAVEWASHER, WAVE
-
3125-84910M GROMMETGROMMET
-
3223-84911M COLLARCOLLAR
-
3316-95505M BOLT, SPECIALBOLT, SPECIAL
-
3411-82383M NUTNUT
-
3512-82217M WASHERWASHER
-
3611-82383M NUTNUT
-
3737-95570M DECAL
SERIAL 00008216-09999999DECAL
SERIAL 00008216-09999999 -
3891-803581 TOOL KITTOOL KIT
