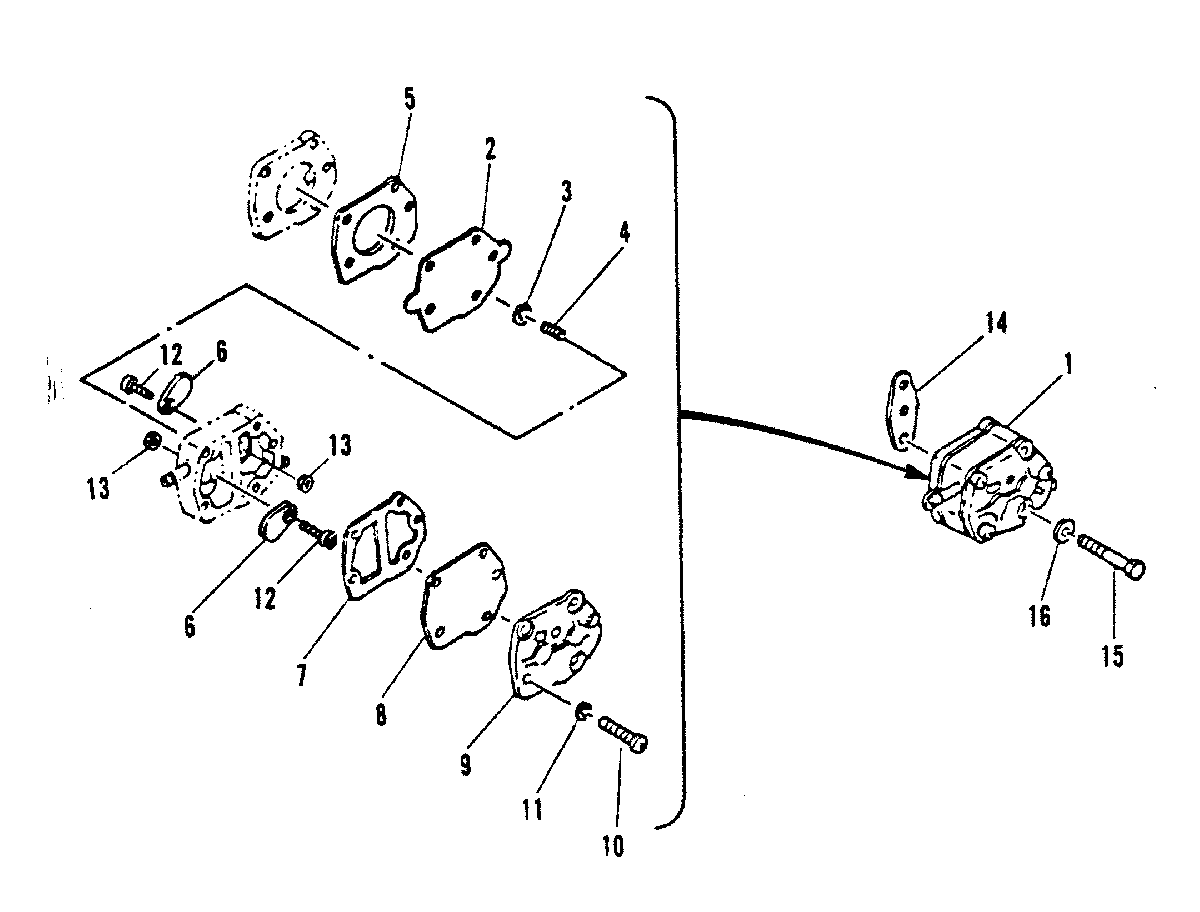

FUEL PUMP для Mariner - 20C (THRU PROP. EXHAUST) 6A9-300101 THRU 306542
-
№АртикулНазвание
-
143113T FUEL PUMP ASS'YFUEL PUMP ASS'Y
-
280606M DIAPHRAGMDIAPHRAGM
-
380611M PLATE, SPRING GUIDEPLATE, SPRING GUIDE
-
424-80610M SPRINGSPRING
-
527-80613 GASKET, BODY TO BASEGASKET, BODY TO BASE
-
621-41888M CHECK VALVE
SERIAL 00002351-09999999CHECK VALVE
SERIAL 00002351-09999999 -
621-41888M CHECK VALVE
SERIAL 00000000-00002350CHECK VALVE
SERIAL 00000000-00002350 -
727-80614 GASKET, BODY TO COVERGASKET, BODY TO COVER
-
884141M DIAPHRAGMDIAPHRAGM
-
980607M COVERCOVER
-
1010-82522M SCREWSCREW
-
1113-82186M WASHER, LOCKWASHER, LOCK
-
1210-41889M SCREW
SERIAL 00002351-09999999SCREW
SERIAL 00002351-09999999 -
1210-813484M SCREW
SERIAL 00000000-00002350SCREW
SERIAL 00000000-00002350 -
1311-82537M NUTNUT
-
1427-80757 GASKET, FUEL PUMP TO CRANKCASEGASKET, FUEL PUMP TO CRANKCASE
-
1510-827043M BOLTBOLT
-
1612-82214M WASHER, LOCKWASHER, LOCK
