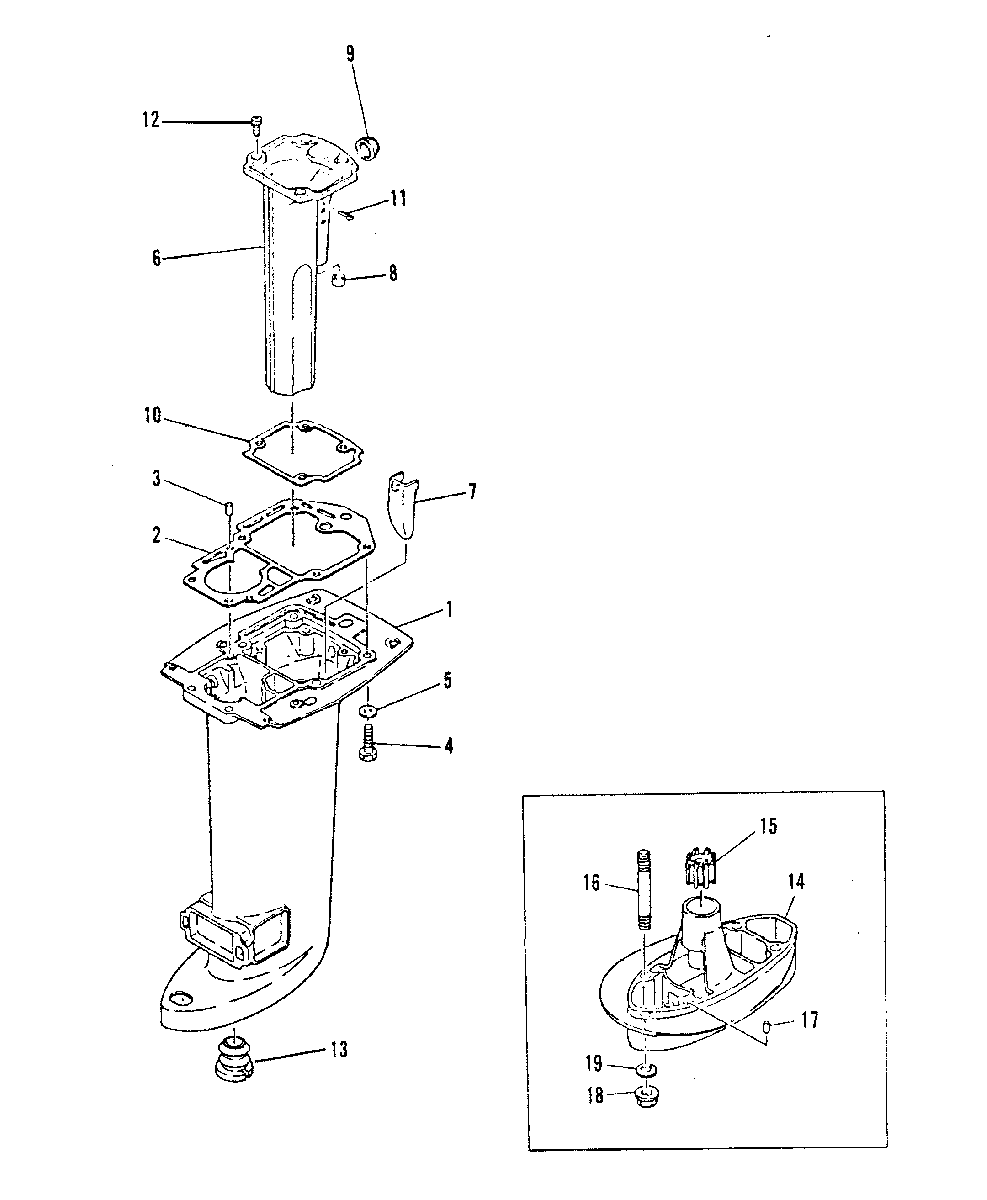

DRIVESHAFT HOUSING для Mariner - 20C (THRU PROP. EXHAUST) 6A9-550101 THRU 550693
-
№АртикулНазвание
-
11587-9244M DRIVESHAFT HOUSING(SHORT SHAFT)
SERIAL 00008216-09999999DRIVESHAFT HOUSING(SHORT SHAFT)
SERIAL 00008216-09999999 -
11587-7842M DRIVESHAFT HOUSING(SHORT SHAFT)
SERIAL 00000000-00008215DRIVESHAFT HOUSING(SHORT SHAFT)
SERIAL 00000000-00008215 -
11587-7843M DRIVESHAFT HOUSING (LONG AND ULTRA LOND SHAFT)DRIVESHAFT HOUSING (LONG AND ULTRA LOND SHAFT)
-
227-84775 GASKETGASKET
-
317-82364M PIN, DOWELPIN, DOWEL
-
410-95416M BOLTBOLT
-
512-82217M WASHERWASHER
-
683306M MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
784776M EXHAUST GUIDE (SHORT SHAFT)EXHAUST GUIDE (SHORT SHAFT)
-
784777M EXHAUST GUIDE (LONG AND ULTRA LONG SHAFT)EXHAUST GUIDE (LONG AND ULTRA LONG SHAFT)
-
826-81574M GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
926-81572M GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
1027-826991M GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
1118-82132M PIN, COTTERPIN, COTTER
-
1210-83870M SCREWSCREW
-
1326-43114M SEAL
SERIAL 00008216-09999999SEAL
SERIAL 00008216-09999999 -
1484783M EXTENSION (ULTRA LONG SHAFT) ( SEE NOTE)
OPTIONAL PARTSEXTENSION (ULTRA LONG SHAFT) ( SEE NOTE)
OPTIONAL PARTS -
1523-84784M BUSHING
OPTIONAL PARTSBUSHING
OPTIONAL PARTS -
1616-84785M STUD
OPTIONAL PARTSSTUD
OPTIONAL PARTS -
1717-82364M PIN,DOWEL
OPTIONAL PARTSPIN,DOWEL
OPTIONAL PARTS -
1811-84786M NUT
OPTIONAL PARTSNUT
OPTIONAL PARTS -
1912-82220M WASHER
OPTIONAL PARTSWASHER
OPTIONAL PARTS
