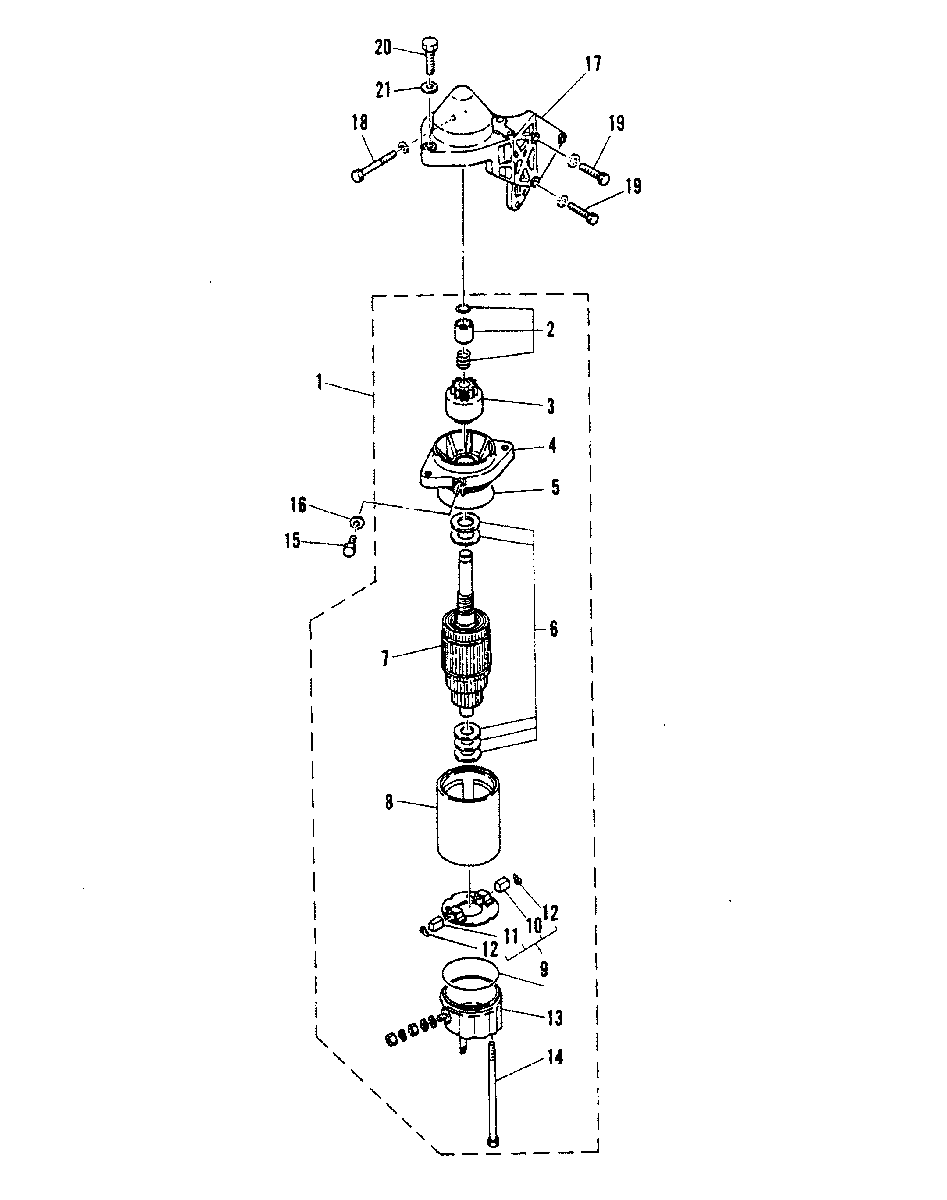

ELECTRIC START MOTOR для Mariner - 20C (THRU PROP. EXHAUST) 6A9-550101 THRU 550693
-
№АртикулНазвание
-
150-97693M ELECTRIC MOTOR ASS'Y
SERIAL 00002351-09999999ELECTRIC MOTOR ASS'Y
SERIAL 00002351-09999999 -
150-97693M ELECTRIC MOTOR ASS'Y
SERIAL 00000000-00002350ELECTRIC MOTOR ASS'Y
SERIAL 00000000-00002350 -
296360M PINION STOPPER SETPINION STOPPER SET
-
397694T PINION ASS'YPINION ASS'Y
-
496362M FRONT COVER ASS'YFRONT COVER ASS'Y
-
525-96363M O-RINGO-RING
-
612-96364M WASHER KITWASHER KIT
-
796365M ARMATURE ASS'YARMATURE ASS'Y
-
896366M STATOR ASS'YSTATOR ASS'Y
-
996367M BRUSH HOLDER ASS'YBRUSH HOLDER ASS'Y
-
1096368M BRUSH(+)BRUSH(+)
-
1196369M BRUSH(-)BRUSH(-)
-
1224-84927M SPRING, BRUSHSPRING, BRUSH
-
1396370M REAR COVER ASS'YREAR COVER ASS'Y
-
1410-84929M BOLTBOLT
-
1510-96371M BOLTBOLT
-
1612-82217M WASHERWASHER
-
1792609M BRACKETBRACKET
-
1810-84931M BOLTBOLT
-
1910-83285M BOLTBOLT
-
2010-95416M BOLTBOLT
-
2112-82217M WASHERWASHER
