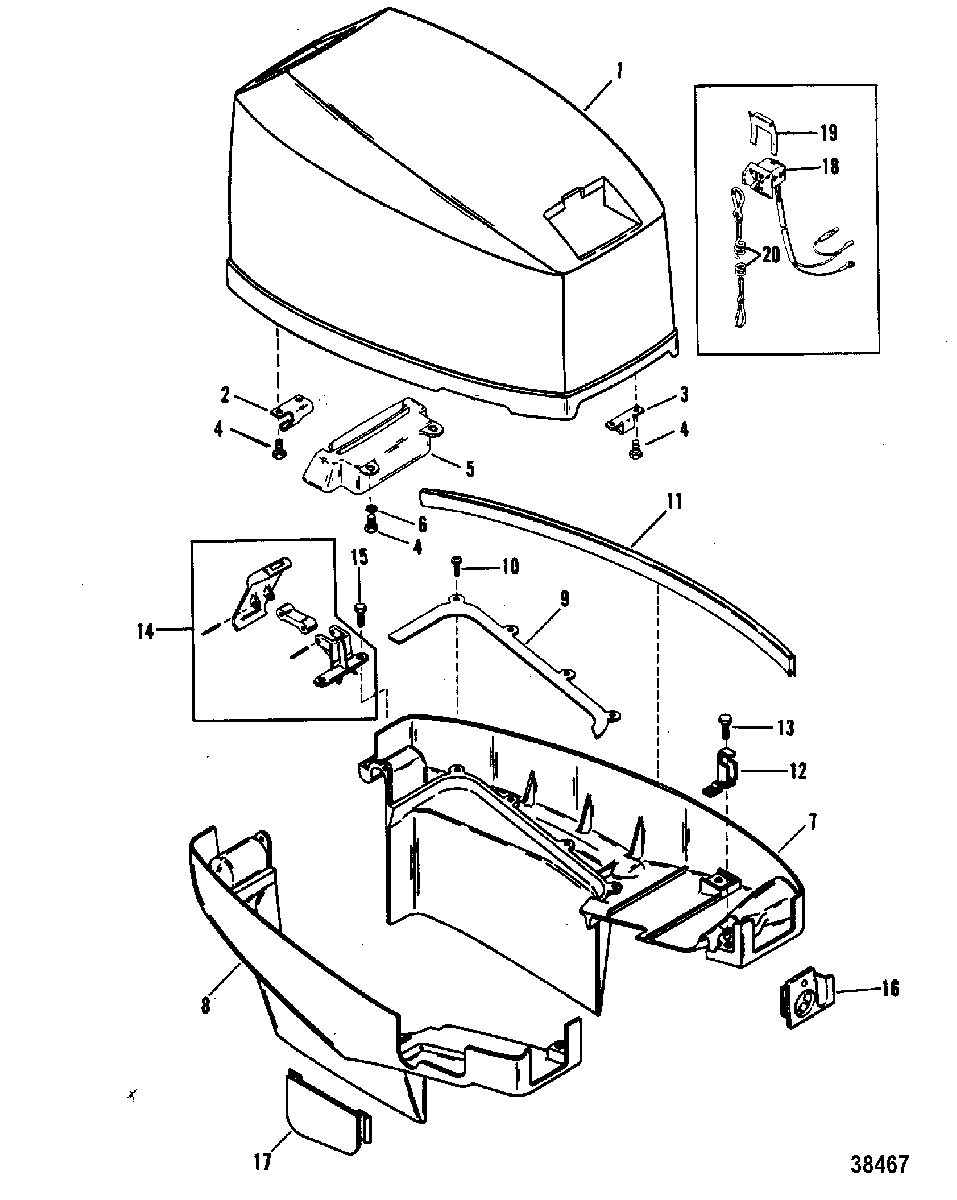

COWLS(MARINER) для Mariner - 20XD (2 CYL.) 9415101 THRU 9507380
-
№АртикулНазвание
-
12190-9163A8 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
243515 HINGE, COWL LATCHHINGE, COWL LATCH
-
343555 BRACKET, TOP COWLBRACKET, TOP COWL
-
410-400018 SCREW, (M5 x 12), HINGE TO TOP COWLSCREW, (M5 x 12), HINGE TO TOP COWL
-
544311F3 SHIELD, TOP COWLSHIELD, TOP COWL
-
612-73288 WASHER, SHIELD SCREWWASHER, SHIELD SCREW
-
72176-9107A4 BOTTOM COWL, PORT
(DARK GRAY)BOTTOM COWL, PORT
(DARK GRAY) -
72176-9107A4 BOTTOM COWL, PORT
(LIGHT GRAY)BOTTOM COWL, PORT
(LIGHT GRAY) -
82176-9108A3 BOTTOM COWL, STARBOARDBOTTOM COWL, STARBOARD
-
915865 PLATE, BOTTOM COWLPLATE, BOTTOM COWL
-
1010-95700 SCREW, (#10-16 x .500), PLATE TO BOTTOM COWLSCREW, (#10-16 x .500), PLATE TO BOTTOM COWL
-
1115067A1 SEAL, BOTTOM COWLSEAL, BOTTOM COWL
-
1243514 LATCH, BOTTOM COWLLATCH, BOTTOM COWL
-
1310-400018 SCREW, (M5 x 12), LATCH TO BOTTOM COWLSCREW, (M5 x 12), LATCH TO BOTTOM COWL
-
1443554A5 LATCH, COWL-REARLATCH, COWL-REAR
-
1510-400018 SCREW, (M5 x 12), BRACKET TO BOTTOM COWLSCREW, (M5 x 12), BRACKET TO BOTTOM COWL
-
1611281 COVER, FUEL INLETCOVER, FUEL INLET
-
1725-416052 PLATE, BOTTOM COWL
(WITHOUT STOP SWITCH)PLATE, BOTTOM COWL
(WITHOUT STOP SWITCH) -
1725-416051 PLATE, BOTTOM COWL
(WITH STOP SWITCH)(LIGHT GRAY)PLATE, BOTTOM COWL
(WITH STOP SWITCH)(LIGHT GRAY) -
1887-11083A6 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
198M0032846 RETANER, STOP SWITCHRETANER, STOP SWITCH
-
208M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
