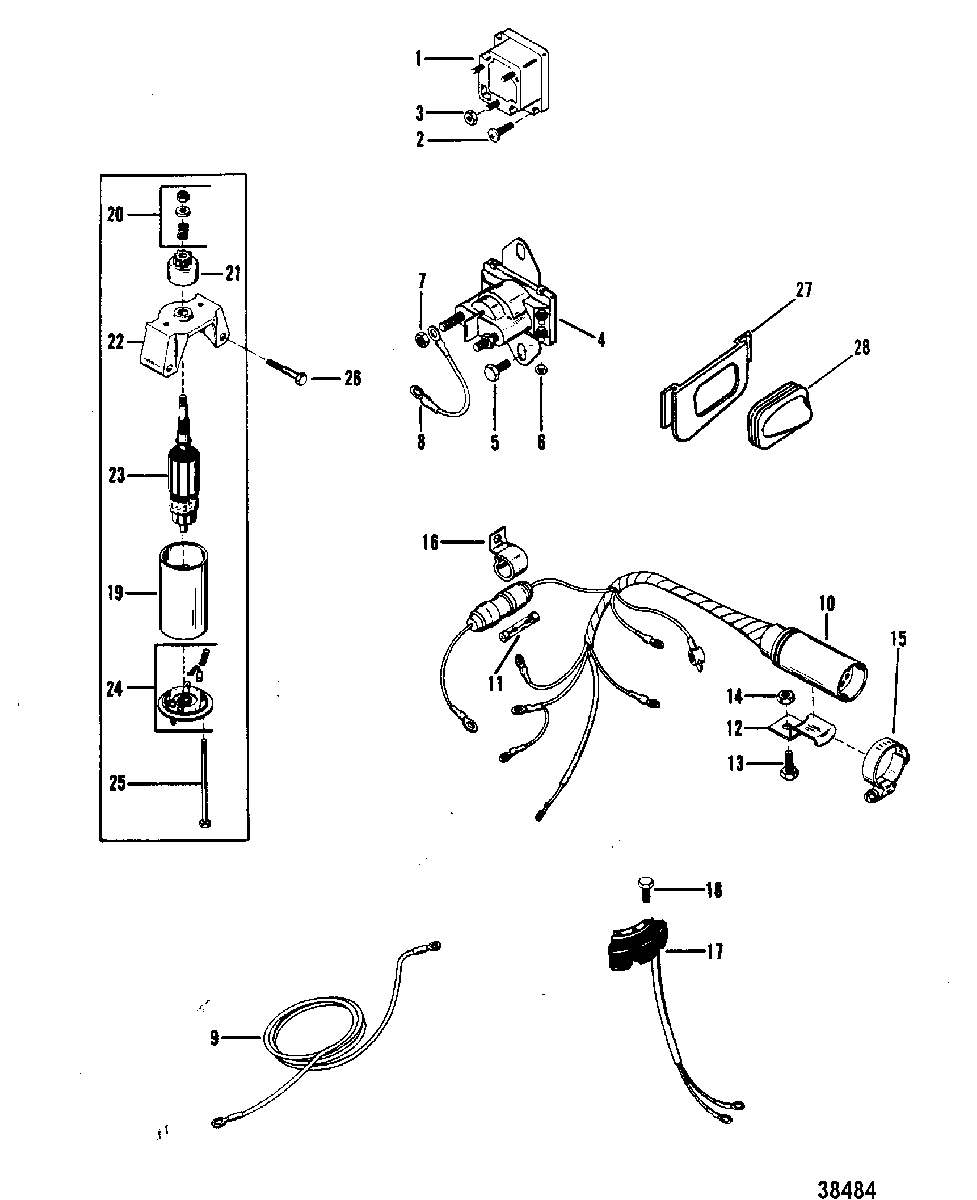

ELECTRIC COMPONENTS для Mariner - 20XD (2 CYL.) 9415101 THRU 9507380
-
№АртикулНазвание
-
18M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
210-48409 SCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCKSCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCK
-
311-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALSNUT, (#10-32) Brass, RECTIFIER TERMINALS
-
489-96054T SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
510-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
611-26419 NUT, (#8-32) Brass, STARTER SOLENOID TERMINALNUT, (#8-32) Brass, STARTER SOLENOID TERMINAL
-
711-64015 NUT, (.250-20), STARTER SOLENOID TERMINALNUT, (.250-20), STARTER SOLENOID TERMINAL
-
884-88809A5 WIRE ASSEMBLY, YELLOWWIRE ASSEMBLY, YELLOW
-
984-88439A27 CABLE ASSEMBLY, Battery, REDCABLE ASSEMBLY, Battery, RED
-
984-88439A28 CABLE ASSEMBLY, Battery, BLACKCABLE ASSEMBLY, Battery, BLACK
-
1084-92436A5 HARNESS ASSEMBLY, ENGINEHARNESS ASSEMBLY, ENGINE
-
1188-95085 FUSEFUSE
-
1292439 BRACKET, WIRING HARNESSBRACKET, WIRING HARNESS
-
1310-4000327 SCREW, (M6 x 14), BRACKETSCREW, (M6 x 14), BRACKET
-
1411-401386 NUT, (M6), BRACKET SCREWNUT, (M6), BRACKET SCREW
-
1554-815504310 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1654-55098 J CLIP, WIRING HARNESSJ CLIP, WIRING HARNESS
-
1786704A10 STATOR ASSEMBLY, AUXILIARYSTATOR ASSEMBLY, AUXILIARY
-
1810-4000123 SCREW, (M5 x 30), STATOR ATTACHINGSCREW, (M5 x 30), STATOR ATTACHING
-
1950-8M0033984 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2096561 DRIVE KITDRIVE KIT
-
2196562 DRIVEDRIVE
-
2296563T END CAPEND CAP
-
2396565 ARMATUREARMATURE
-
2496564T END CAP, CUMMUTATOR W/SPRINGS AND BRUSHESEND CAP, CUMMUTATOR W/SPRINGS AND BRUSHES
-
2510-96566 THRU BOLTTHRU BOLT
-
2610-421251 SCREW, (M8 x 55), STARTER MOTOR ATTACHINGSCREW, (M8 x 55), STARTER MOTOR ATTACHING
-
2725-416042 PLATE, BOTTOM COWL
(MERCURY)PLATE, BOTTOM COWL
(MERCURY) -
2725-416042 PLATE, BOTTOM COWL
(MARINER)PLATE, BOTTOM COWL
(MARINER) -
2825-93527002 GROMMET, BOTTOM COWL (RUBBER)GROMMET, BOTTOM COWL (RUBBER)
