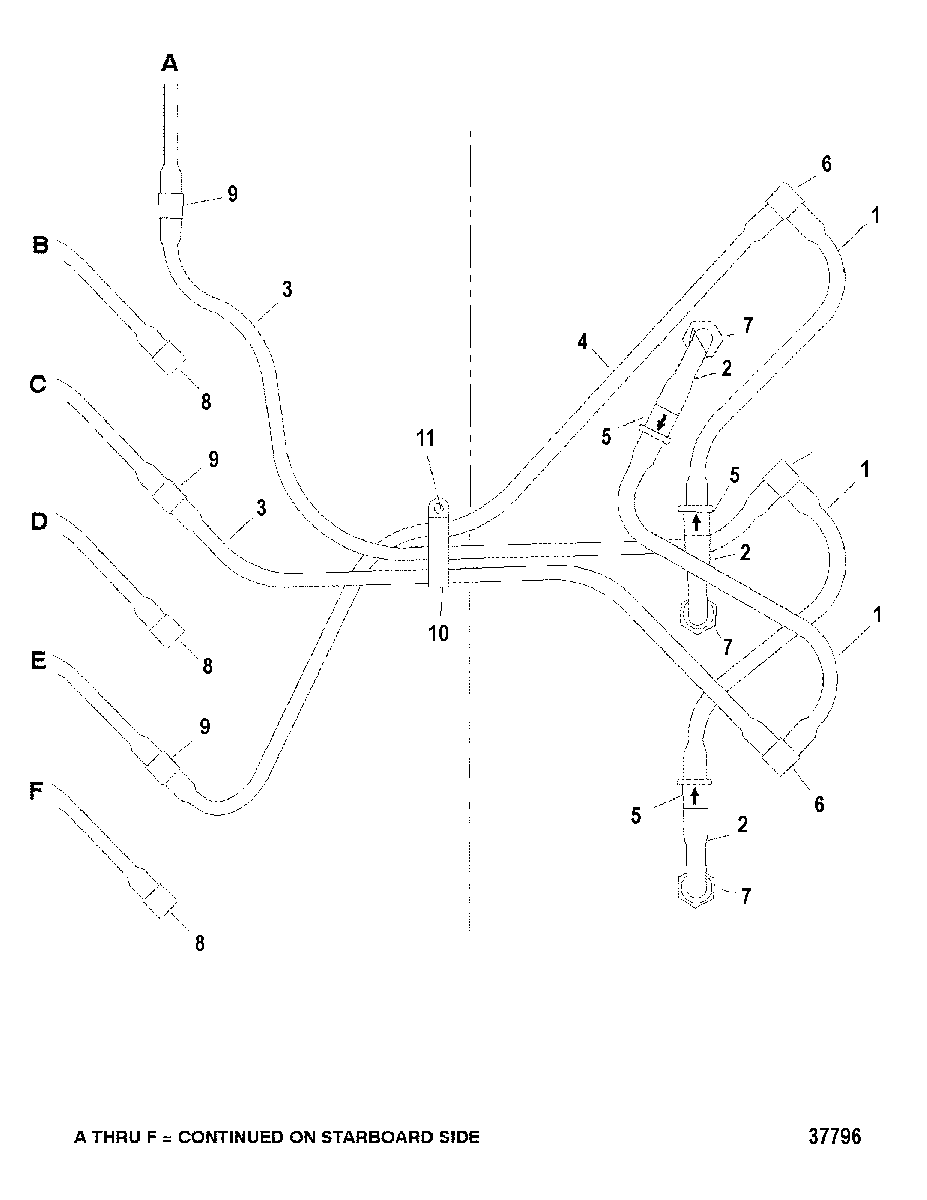

BLEED SYSTEM(PORT)(S/N-0G485989 AND UP) для Mariner - 225 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
132-892024122 TUBING, (20.00 Feet Bulk) (6 IN.)TUBING, (20.00 Feet Bulk) (6 IN.)
-
232-892024122 TUBING, (20.00 Feet Bulk) (3 IN.)TUBING, (20.00 Feet Bulk) (3 IN.)
-
332-892024122 TUBING, (20.00 Feet Bulk) (13-1/4 IN.)TUBING, (20.00 Feet Bulk) (13-1/4 IN.)
-
432-892024122 TUBING, (20.00 Feet Bulk) (16 IN.)TUBING, (20.00 Feet Bulk) (16 IN.)
-
521-149125 CHECK VALVECHECK VALVE
-
622-8243561 FITTINGFITTING
-
722-8245021 CONNECTOR
(REF. #8 ON "CYLINDER BLOCK AND END CAP")CONNECTOR
(REF. #8 ON "CYLINDER BLOCK AND END CAP") -
821-8282182 CHECK VALVE
(REF. #13 ON "CYLINDER BLOCK AND END CAP")CHECK VALVE
(REF. #13 ON "CYLINDER BLOCK AND END CAP") -
921-8348041 CHECK VALVE
(REF. #12 ON "CYLINDER BLOCK AND END CAP")CHECK VALVE
(REF. #12 ON "CYLINDER BLOCK AND END CAP") -
1054-22875 CLIPCLIP
-
1110-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
-809794R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
