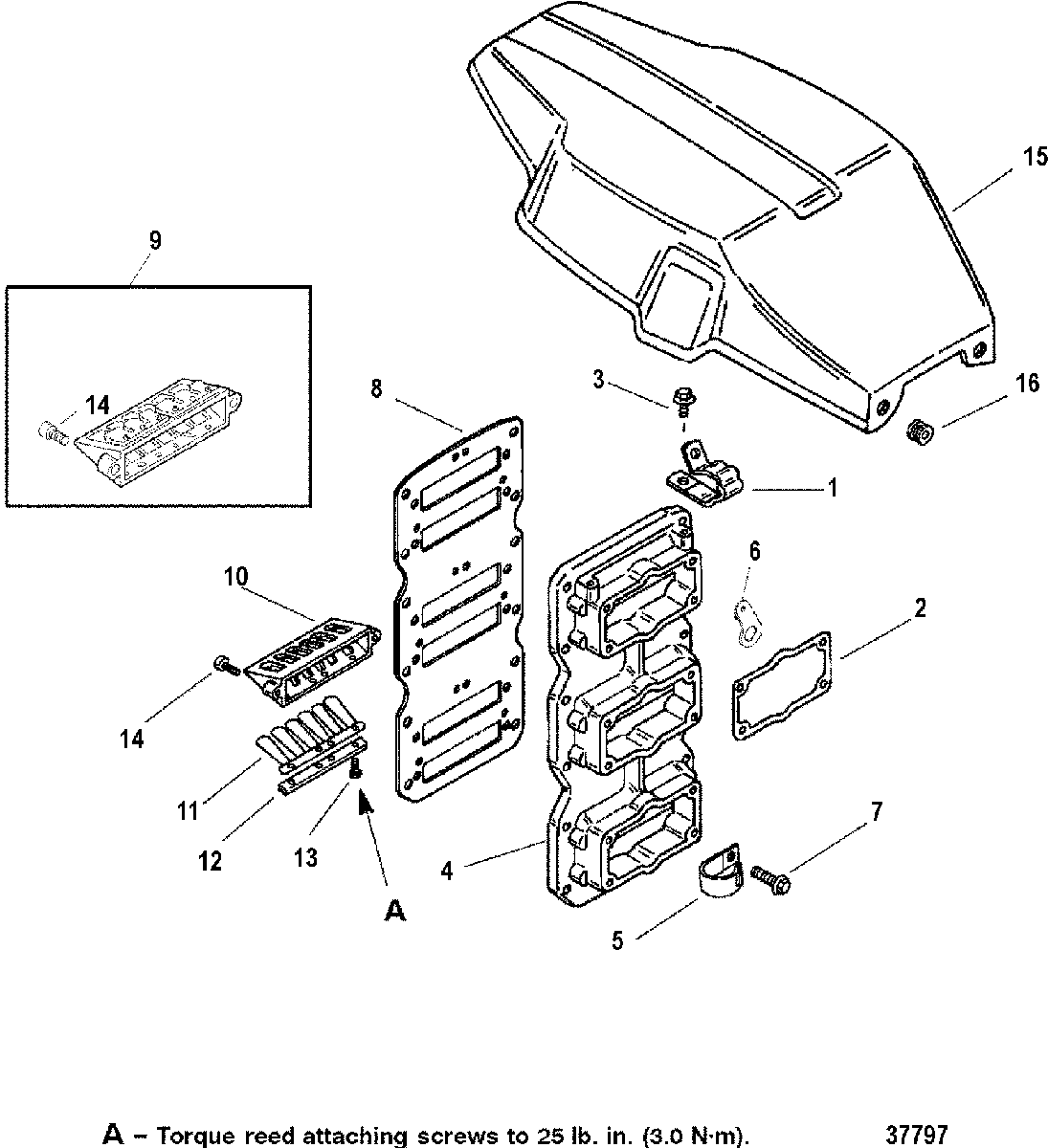

REED BLOCK/FLYWHEEL COVER для Mariner - 225 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
154-49542 CLAMPCLAMP
-
227-825815 GASKETGASKET
-
310-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
4825178T5 ADAPTOR PLATE
SN# 0G438000 & UpADAPTOR PLATE
SN# 0G438000 & Up -
4825178T5 ADAPTOR PLATE
SN# 0G437999 & BelowADAPTOR PLATE
SN# 0G437999 & Below -
554-859172 CLAMP
SN# 0G303045 & BelowCLAMP
SN# 0G303045 & Below -
6827507 RETAINER
SN# 0G303046 & UpRETAINER
SN# 0G303046 & Up -
710-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
827-8141951 GASKETGASKET
-
9828623T6 REED BLOCK
1 PIECE SN# 0G438000 & UpREED BLOCK
1 PIECE SN# 0G438000 & Up -
10816032T1 REED BLOCK
SN# 0G338134 THRU 0G437999REED BLOCK
SN# 0G338134 THRU 0G437999 -
10816032T1 REED BLOCK
SN# 0G338133 & BelowREED BLOCK
SN# 0G338133 & Below -
1134-816107A1 REED SET
SN# 0G437999 & BelowREED SET
SN# 0G437999 & Below -
12816032T1 CLAMP, Reed
SN# 0G338133 & BelowCLAMP, Reed
SN# 0G338133 & Below -
128161082 CLAMP, Reed
SN# 0G338134 THRU 0G437999CLAMP, Reed
SN# 0G338134 THRU 0G437999 -
1310-8211108 SCREW (M4 X .7)
SN# 0G338133 & BelowSCREW (M4 X .7)
SN# 0G338133 & Below -
1310-8211108 SCREW (M4 X .7)
SN# 0G338134 THRU 0B437999SCREW (M4 X .7)
SN# 0G338134 THRU 0B437999 -
1410-4007420 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
15825832 FLYWHEEL COVERFLYWHEEL COVER
-
1625-821555001 GROMMETGROMMET
-
-27-814195A93 GASKET SETGASKET SET
-
-809794R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
