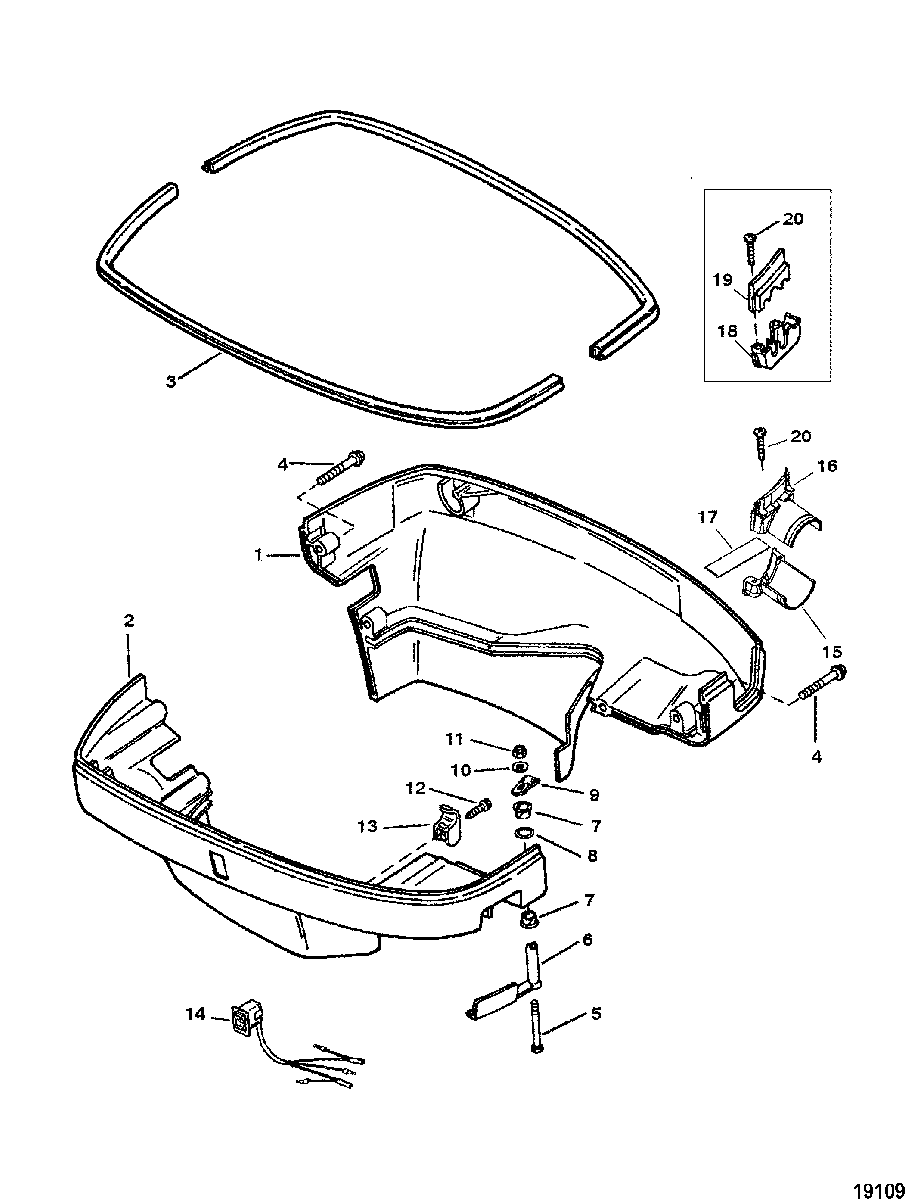

Bottom Cowl для Mariner - 225 (3.0L EFI) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
14009-818448A1 BOTTOM COWL
(PORT)BOTTOM COWL
(PORT) -
24009-818447A1 BOTTOM COWL
(STBD.)BOTTOM COWL
(STBD.) -
38M0109217 SEAL, Cowl (41.00 Inches)SEAL, Cowl (41.00 Inches)
-
410-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
510-824868 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
6889740A02 FRONT HANDLE, BlackFRONT HANDLE, Black
-
723-335891 BUSHINGBUSHING
-
825-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
98219423 PAWLPAWL
-
1012-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
1111-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1210-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1354-822873 CLIPCLIP
-
1487-8M0042301 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
15859435T INSERT (LOWER)
SN# 0G960500 & UpINSERT (LOWER)
SN# 0G960500 & Up -
16859434T INSERT (UPPER)
SN# 0G960500 & UpINSERT (UPPER)
SN# 0G960500 & Up -
17859343 FOAM
SN# 0G960500 & UpFOAM
SN# 0G960500 & Up -
1854-822024 CLAMP (LOWER)
SN# 0G960499 & BelowCLAMP (LOWER)
SN# 0G960499 & Below -
1954-822023 CLAMP (UPPER)
SN# 0G960499 & BelowCLAMP (UPPER)
SN# 0G960499 & Below -
2010-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
