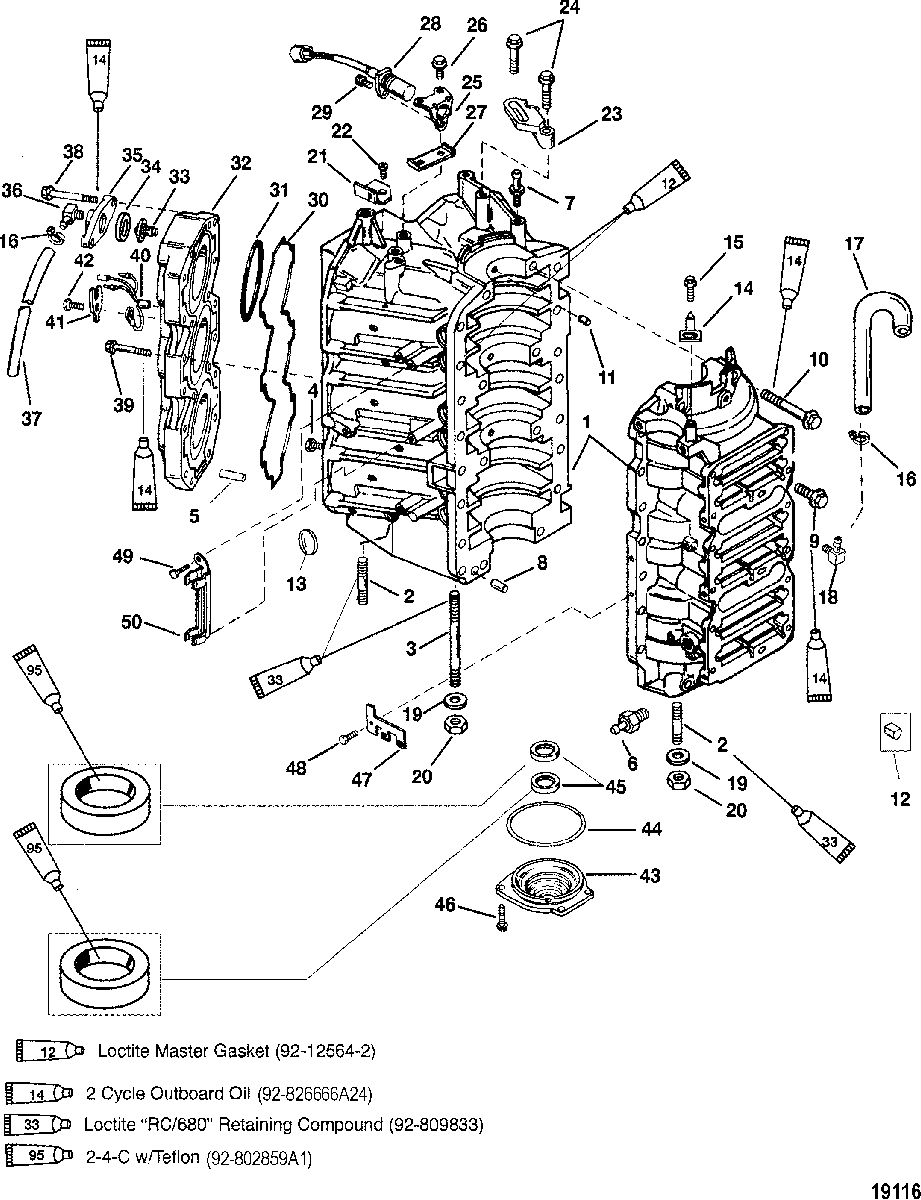

Cyliner Block and End Caps для Mariner - 225 (3.0L EFI) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
1885-9811A57 CYLINDER BLOCK
(225) SN# 0G960500 & UpCYLINDER BLOCK
(225) SN# 0G960500 & Up -
1885-9811A58 CYLINDER BLOCK
(250) SN# 0G960500 & UpCYLINDER BLOCK
(250) SN# 0G960500 & Up -
1885-9811A19 CYLINDER BLOCK
SN# 0G960499 & BelowCYLINDER BLOCK
SN# 0G960499 & Below -
216-903509 STUD, (M10 x 1.5 x 64)STUD, (M10 x 1.5 x 64)
-
316-8154431 STUD, (M10 x 1.5 x 155)STUD, (M10 x 1.5 x 155)
-
422-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
58248577 DEFLECTOR, WaterDEFLECTOR, Water
-
621-8781051 CHECK VALVECHECK VALVE
-
78215832 PINPIN
-
817-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
910-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1010-82446180 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
1117-8M0036405 PINPIN
-
1219-850309001 PLUGPLUG
-
13NSS NOT SOLD SEPARATE, Plug-Serial NumberNOT SOLD SEPARATE, Plug-Serial Number
-
148217621 TIMING POINTERTIMING POINTER
-
1510-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
1654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1732-826544A1 TUBING KITTUBING KIT
-
1822-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
1912-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
2011-4013610 NUT, (M10) Stainless SteelNUT, (M10) Stainless Steel
-
218256751 BRACKETBRACKET
-
2210-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
238211051 BRACKET, AlternatorBRACKET, Alternator
-
2410-81893450 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
258212251 BRACKETBRACKET
-
2610-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
27822486 BRACKET, GuideBRACKET, Guide
-
28821909 SENSORSENSOR
-
2910-82104510 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
30818574 SEAL, Cylinder HeadSEAL, Cylinder Head
-
3125-818573 O-RINGO-RING
-
32812851A16 CYLINDER HEAD
SN# 0G960500 & UpCYLINDER HEAD
SN# 0G960500 & Up -
32812851A2 CYLINDER HEAD
SN# 0G960499 & BelowCYLINDER HEAD
SN# 0G960499 & Below -
33833072003 THERMOSTAT, 62A° Celsius (143A° Fahrenheit)THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
-
3427-62386001 GASKET, ThermostatGASKET, Thermostat
-
3519801A1 THERMOSTAT COVERTHERMOSTAT COVER
-
3622-8167811 ELBOWELBOW
-
3732-77653101 HOSE, (48.00 Inches Bulk) (19 IN.)
(PORT)HOSE, (48.00 Inches Bulk) (19 IN.)
(PORT) -
3732-77653101 HOSE, (48.00 Inches Bulk) (20-1/2 IN.)
(STARBOARD)HOSE, (48.00 Inches Bulk) (20-1/2 IN.)
(STARBOARD) -
3810-82446090 SCREW, (M8 x 90)SCREW, (M8 x 90)
-
3910-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
4013536A14 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
41137151 RETAINERRETAINER
-
4210-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
431171-9787A4 END CAP ASSEMBLYEND CAP ASSEMBLY
-
4425-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
4526-8308981 SEALSEAL
-
4610-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
478261211 BRACKETBRACKET
-
4810-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
4910-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
508266241 CLAMPCLAMP
-
-809794R97 POWERHEAD ASSEMBLY
(225/250) SN# 0G960499 & BelowPOWERHEAD ASSEMBLY
(225/250) SN# 0G960499 & Below -
-804799A00 POWERHEAD ASSEMBLY
(225) SN# 0G960500 & UpPOWERHEAD ASSEMBLY
(225) SN# 0G960500 & Up -
-804800R00 POWERHEAD ASSEMBLY
(250) SN# 0G960500 & UpPOWERHEAD ASSEMBLY
(250) SN# 0G960500 & Up
