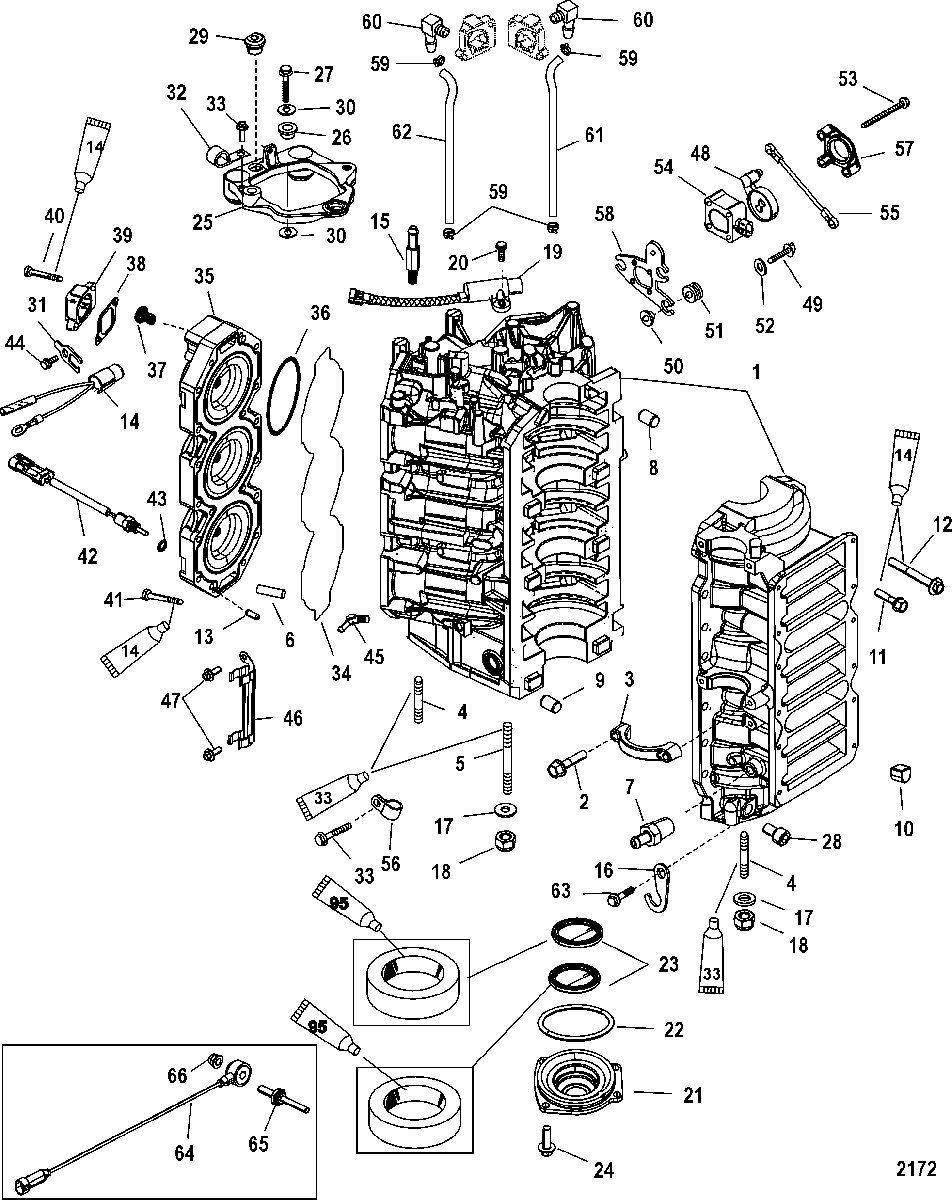

Cyliner Block and End Cap для Mariner - 225 (3.0L EFI) 0T801000 THRU 1B417701

№

Артикул

Название
1

885-899162A06 CYLINDER BLOCK
(225)

CYLINDER BLOCK
(225)

497 610 ₽
1

885-899162A05 CYLINDER BLOCK
(200/3L Work)

CYLINDER BLOCK
(200/3L Work)

486 800 ₽
1

885-899162A07 CYLINDER BLOCK
(250)

CYLINDER BLOCK
(250)

399 370 ₽
2

10-81893440 SCREW, (M8 x 40)

SCREW, (M8 x 40)

260 ₽
3

8M0111325 BRACKET

BRACKET

4 470 ₽
4

16-903509 STUD, (M10 x 1.5 x 64)

STUD, (M10 x 1.5 x 64)

1 440 ₽
5

16-8154431 STUD, (M10 x 1.5 x 155)

STUD, (M10 x 1.5 x 155)

2 890 ₽
6

8248577 DEFLECTOR

DEFLECTOR

190 ₽
7

21-8781051 CHECK VALVE

CHECK VALVE

2 070 ₽
8

17-8M0036405 PIN

PIN

270 ₽
9

17-43044 PIN, Dowel - Without Hole (.375 x .625)

PIN, Dowel - Without Hole (.375 x .625)

200 ₽
10

19-850309001 PLUG
SN# 0T979999 & Below

PLUG
SN# 0T979999 & Below

180 ₽
10

19-850309001 PLUG, Stop
SN# 0T980000 & Up

PLUG, Stop
SN# 0T980000 & Up

180 ₽
11

10-81893435 SCREW, (M8 x 35)

SCREW, (M8 x 35)

230 ₽
12

10-82446180 SCREW, (M10 x 80)

SCREW, (M10 x 80)

890 ₽
13

17-63779 PIN, Dowel (.250 x .625)

PIN, Dowel (.250 x .625)

290 ₽
14

13536A13 SENSOR ASSEMBLY, Temperature

SENSOR ASSEMBLY, Temperature

4 140 ₽
15

17-8405101 PIN

PIN

690 ₽
16

8588641 RETAINER

RETAINER

440 ₽
17

12-856774 WASHER, (.406 x .750 x .105) Stainless Steel

WASHER, (.406 x .750 x .105) Stainless Steel

150 ₽
18

11-4013610 NUT, (M10) Stainless Steel

NUT, (M10) Stainless Steel

490 ₽
19

8M0082988 SENSOR

SENSOR

10 340 ₽
20

10-40011107 SCREW, (M5 x 16) Stainless Steel

SCREW, (M5 x 16) Stainless Steel

110 ₽
21

1171-9787A4 END CAP ASSEMBLY

END CAP ASSEMBLY

7 770 ₽
22

25-62700 O-RING, (3.237 x .103)

O-RING, (3.237 x .103)

400 ₽
23

26-8308981 SEAL

SEAL

2 470 ₽
24

10-82130020 SCREW, (M6 x 20)

SCREW, (M6 x 20)

150 ₽
25

857186T02 PLATE ASSEMBLY

PLATE ASSEMBLY

18 070 ₽
26

23-855729 MOUNT

MOUNT

3 480 ₽
27

10-82130145 SCREW, (M10 x 45)

SCREW, (M10 x 45)

780 ₽
28

10-82130012 SCREW, (M6 x 12)
(Flange Head)

SCREW, (M6 x 12)
(Flange Head)

150 ₽
28

10-82494810 SCREW, (M6 x 10)
(Socket Head)

SCREW, (M6 x 10)
(Socket Head)

130 ₽
29

25-19565002 GROMMET
SN# 0T979999 & Below

GROMMET
SN# 0T979999 & Below

2 650 ₽
29

25-19565002 GROMMET
SN# 0T980000 & Up

GROMMET
SN# 0T980000 & Up

2 650 ₽
30

12-855725 WASHER

WASHER

200 ₽
31

137151 RETAINER

RETAINER

290 ₽
32

54-858951 J CLIP

J CLIP

440 ₽
33

10-82130012 SCREW, (M6 x 12)

SCREW, (M6 x 12)

150 ₽
34

818574 SEAL

SEAL

1 440 ₽
35

812851A27 CYLINDER HEAD ASSEMBLY
(200/225/250)

CYLINDER HEAD ASSEMBLY
(200/225/250)

38 170 ₽
35

812851A26 CYLINDER HEAD
(3L Work)

CYLINDER HEAD
(3L Work)

37 520 ₽
36

884391 SEAL

SEAL

1 900 ₽
37

8M0057307 THERMOSTAT, 54A°C (130A°F) (130 Degrees)
SN# 0T947111 & Below

THERMOSTAT, 54A°C (130A°F) (130 Degrees)
SN# 0T947111 & Below

13 510 ₽
37

8M0057307 THERMOSTAT, 54 Degree C/130 Degree F
SN# 0T947112 & Up

THERMOSTAT, 54 Degree C/130 Degree F
SN# 0T947112 & Up

13 510 ₽
38

27-8503181 GASKET

GASKET

340 ₽
39

8M0039357 COVER, Thermostat

COVER, Thermostat

3 330 ₽
40

10-82130025 SCREW, (M6 x 25)

SCREW, (M6 x 25)

270 ₽
41

10-8M0045380 SCREW, (M8 x 50)

SCREW, (M8 x 50)

610 ₽
42

885342002 SENSOR ASSEMBLY

SENSOR ASSEMBLY

3 370 ₽
43

25-896699 O-RING, (.351 x .072)

O-RING, (.351 x .072)

830 ₽
44

10-81893414 SCREW, (M8 x 14)

SCREW, (M8 x 14)

210 ₽
45

22-782792 FITTING, Elbow 45 Degree (1.25)

FITTING, Elbow 45 Degree (1.25)

490 ₽
46

8266241 CLAMP (Use where applicable)

CLAMP (Use where applicable)

2 270 ₽
47

10-82130012 SCREW, (M6 x 12) (Use where applicable)

SCREW, (M6 x 12) (Use where applicable)

150 ₽
48

8583561 LEVER, TPI

LEVER, TPI

910 ₽
49

10-82130025 SCREW, (M6 x 25)

SCREW, (M6 x 25)

270 ₽
50

23-856954 BUSHING

BUSHING

440 ₽
51

25-834985 GROMMET

GROMMET

200 ₽
52

12-65567 WASHER, (.265 x .750 x .048) Stainless Steel

WASHER, (.265 x .750 x .048) Stainless Steel

200 ₽
53

10-40011113 SCREW, (M5 x 45) Stainless Steel

SCREW, (M5 x 45) Stainless Steel

270 ₽
54

8M6005165 INDICATOR, Throttle Position

INDICATOR, Throttle Position

16 140 ₽
55

8M0084743 LINK

LINK

2 280 ₽
56

54-858902 CLAMP

CLAMP

400 ₽
57

8582261 COVER

COVER

1 450 ₽
58

8544862 BRACKET

BRACKET

1 970 ₽
59

54-855228 CLAMP, (25.6 mm)

CLAMP, (25.6 mm)

270 ₽
60

22-8533394 FITTING

FITTING

1 810 ₽
61

32-8404461 HOSE (Starboard)

HOSE (Starboard)

2 940 ₽
62

32-8404462 HOSE (Port)

HOSE (Port)

3 870 ₽
63

10-81893420 SCREW, (M8 x 20)

SCREW, (M8 x 20)

360 ₽
64

8M6003194 SENSOR ASSEMBLY, Knock
(200/3.0L Work)

SENSOR ASSEMBLY, Knock
(200/3.0L Work)

6 710 ₽
65

16-882781 STUD
(200/3.0L Work)

STUD
(200/3.0L Work)

4 320 ₽
66

11-826292 NUT, (M10) Brass/Nickel Plated
(200/3.0L Work)

NUT, (M10) Brass/Nickel Plated
(200/3.0L Work)

230 ₽
-

27-832934A00 GASKET SET, Powerhead

GASKET SET, Powerhead

14 760 ₽
-

883892A07 POWERHEAD ASSEMBLY
(225)

POWERHEAD ASSEMBLY
(225)

955 930 ₽
-

883893A07 POWERHEAD ASSEMBLY
(3L Work)

POWERHEAD ASSEMBLY
(3L Work)

806 060 ₽
-

883894A07 POWERHEAD ASSEMBLY
(250)

POWERHEAD ASSEMBLY
(250)

984 240 ₽
-

891823A07 POWERHEAD ASSEMBLY
(200)

POWERHEAD ASSEMBLY
(200)

918 410 ₽
