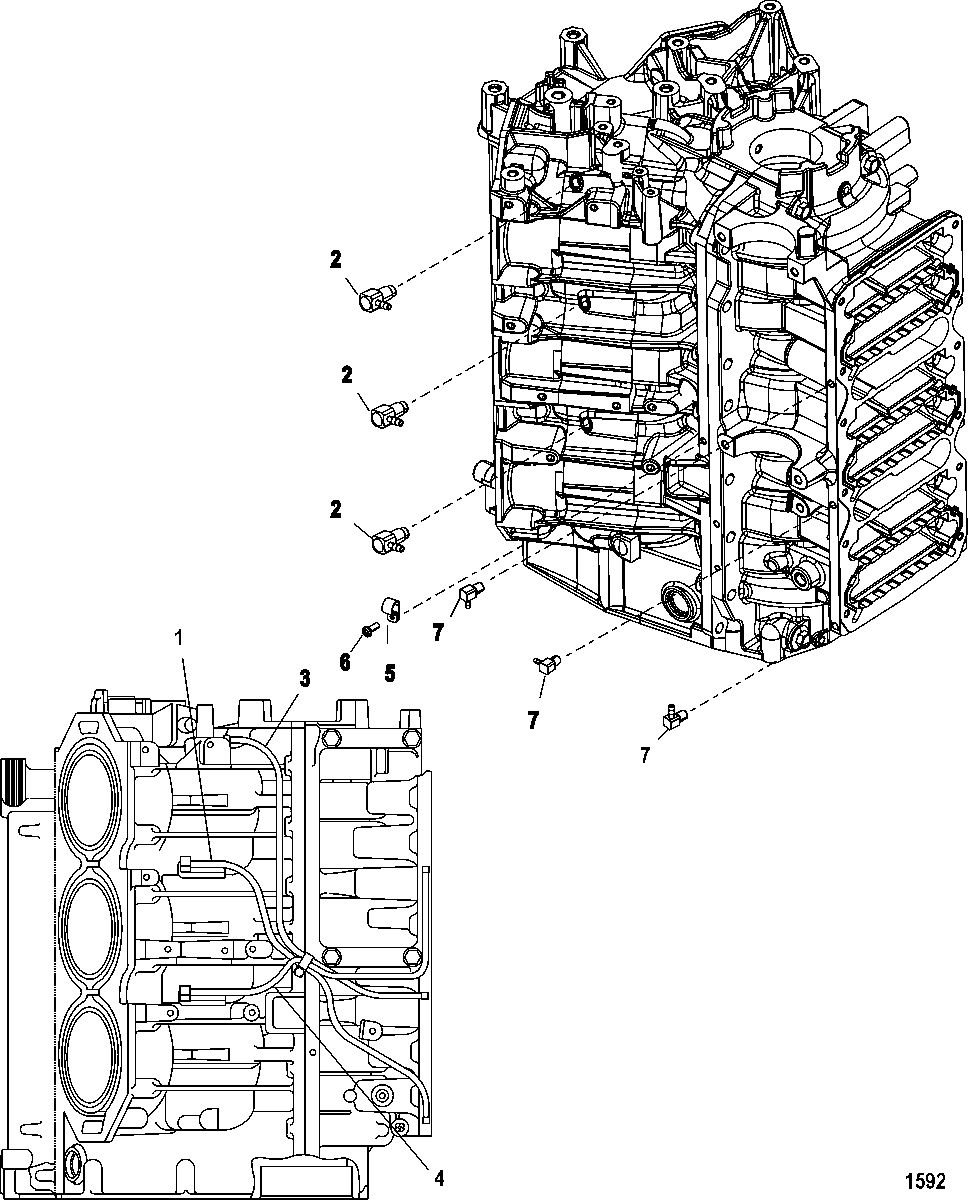

Starboard Bleed System для Mariner - 225 (3.0L EFI) 0T801000 THRU 1B417701
-
№АртикулНазвание
-
132-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 15-1/2 Inches)TUBING, (38.00 Inches Bulk) (Cut to 15-1/2 Inches)
-
221-8592352 CHECK VALVE, 90 Degree (.0625-27)CHECK VALVE, 90 Degree (.0625-27)
-
332-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 16-1/2 Inches)TUBING, (38.00 Inches Bulk) (Cut to 16-1/2 Inches)
-
432-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 15 Inches)TUBING, (38.00 Inches Bulk) (Cut to 15 Inches)
-
554-23567 CLIPCLIP
-
610-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
721-8282182 CHECK VALVECHECK VALVE
-
-883892A07 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225) -
-883893A07 POWERHEAD ASSEMBLY
(3L Work)POWERHEAD ASSEMBLY
(3L Work) -
-883894A07 POWERHEAD ASSEMBLY
(250)POWERHEAD ASSEMBLY
(250) -
-891823A07 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
