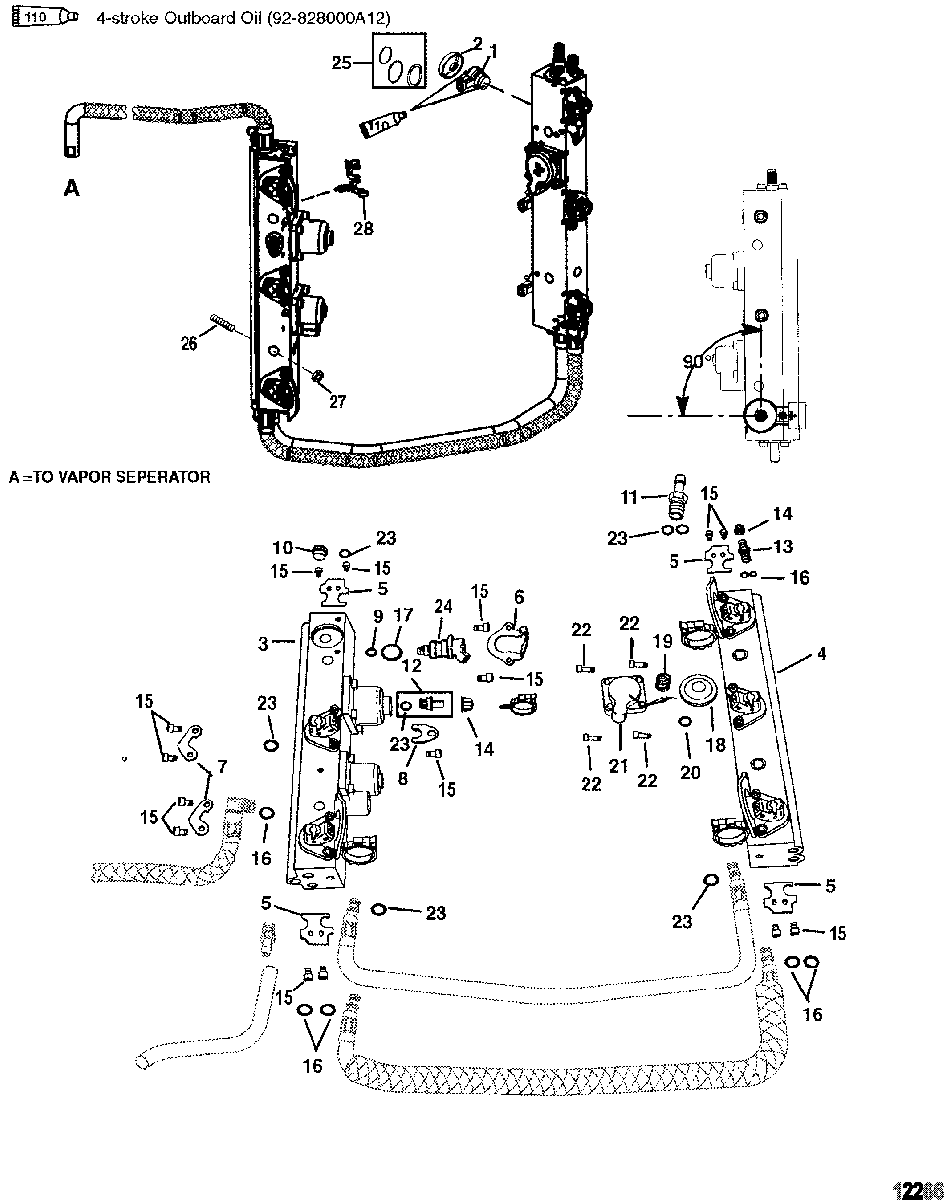

Fuel Rails для Mariner - 225 (DFI) 0G960500 THRU 0T178499
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Fuel Rail AssemlbyNOT SOLD SEPARATE, Fuel Rail Assemlby
-
18M6001743 INJECTORINJECTOR
-
212-828694A1 WASHER ASSEMBLY, CuppedWASHER ASSEMBLY, Cupped
-
3858258A1 FUEL RAIL ASSEMBLY
(Port)FUEL RAIL ASSEMBLY
(Port) -
4884430T06 FUEL RAIL ASSEMBLY
(Starboard)FUEL RAIL ASSEMBLY
(Starboard) -
554-804830 CLAMPCLAMP
-
654-8048311 CLAMPCLAMP
-
754-804832 CLAMPCLAMP
-
854-804833 CLAMPCLAMP
-
925-804529 O-RING KITO-RING KIT
-
1019-804835 PLUGPLUG
-
1122-804836 FITTINGFITTING
-
12804837 VALVE ASSEMBLY, (.5 Inch Diameter)VALVE ASSEMBLY, (.5 Inch Diameter)
-
138M0047053 VALVE KIT, FuelVALVE KIT, Fuel
-
1419-8M0046566 CAPCAP
-
1510-8M0041100 SCREW PACKAGE, (M5 x 8) (2 Per)SCREW PACKAGE, (M5 x 8) (2 Per)
-
1625-804840 O-RING KITO-RING KIT
-
1725-804530 O-RING KITO-RING KIT
-
18804533 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
1924-804534 SPRINGSPRING
-
2025-804536 O-RINGO-RING
-
21804535001 COVERCOVER
-
22804526 SCREW PACKAGE, (M5 x 16) (2 Per)SCREW PACKAGE, (M5 x 16) (2 Per)
-
23804532 O-RING KIT
(16 Per Kit)O-RING KIT
(16 Per Kit) -
24804528 INJECTORINJECTOR
-
2526-804875 SEAL KITSEAL KIT
-
2616-8M0063255 STUD, (M10 x 91)STUD, (M10 x 91)
-
2711-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
2854-859376 CLIP, ConduitCLIP, Conduit
-
-854198R00 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-854199R00 POWERHEAD ASSEMBLY
(225) (Cylinder Heads Have No Casting Number)POWERHEAD ASSEMBLY
(225) (Cylinder Heads Have No Casting Number) -
-877869R00 POWERHEAD ASSEMBLY
(225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)POWERHEAD ASSEMBLY
(225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)
