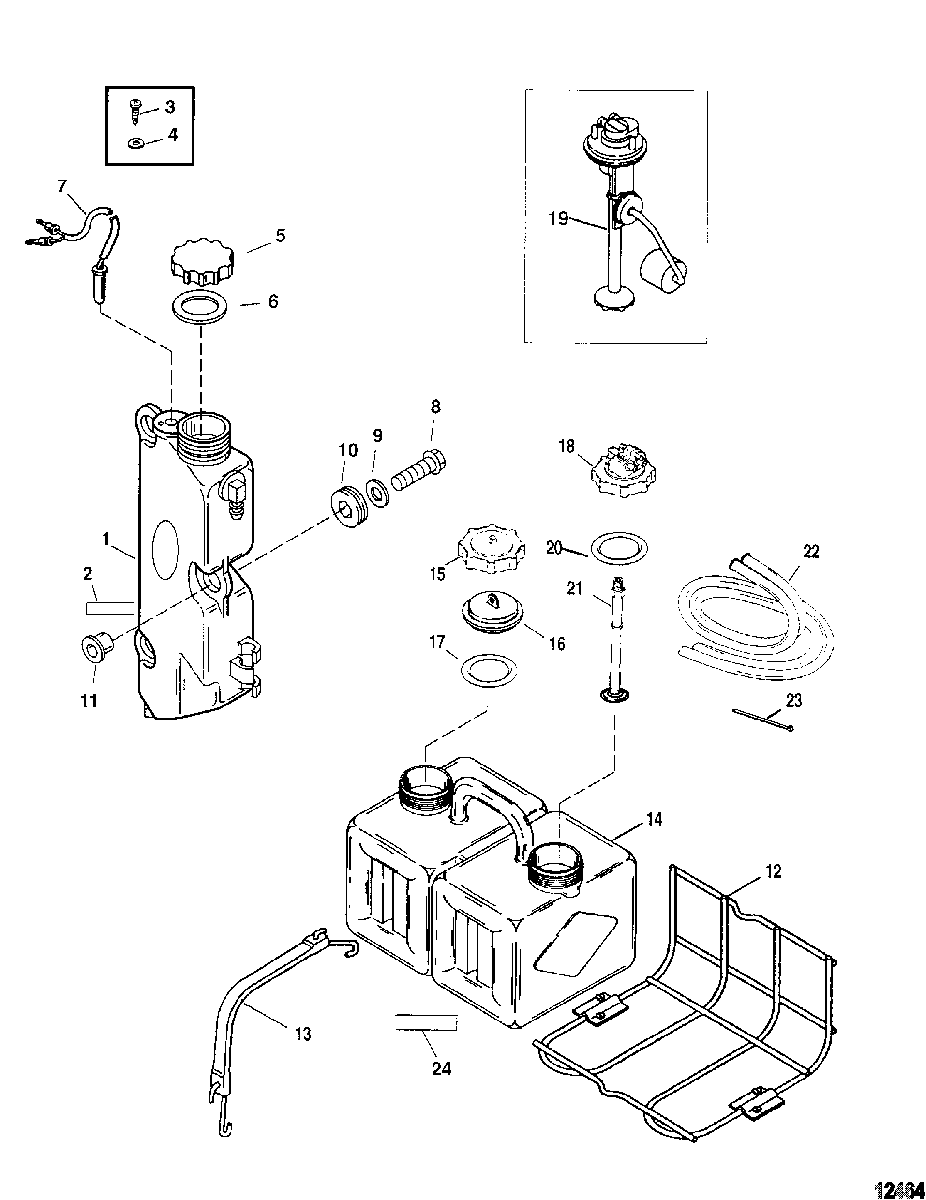

Oil Injection Components для Mariner - 225 (DFI) 0G960500 THRU 0T178499
-
№АртикулНазвание
-
11200-8M0119508 TANK ASSEMBLYTANK ASSEMBLY
-
2NSS NOT SOLD SEPARATE, Decal - ReservoirNOT SOLD SEPARATE, Decal - Reservoir
-
310-58376 SCREW, (.164-18 x .375)SCREW, (.164-18 x .375)
-
412-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
536-814449A3 CAP ASSEMBLYCAP ASSEMBLY
-
627-42999T GASKETGASKET
-
787-856156T02 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
810-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
912-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
1025-855362001 GROMMETGROMMET
-
1123-855364 BUSHINGBUSHING
-
1212335A1 BRACKET KITBRACKET KIT
-
1312323A1 CORD/HOOK KITCORD/HOOK KIT
-
141257-87421 TANKTANK
-
1536-43298A2 CAP ASSEMBLYCAP ASSEMBLY
-
16NSS NOT SOLD SEPARATE, InsertNOT SOLD SEPARATE, Insert
-
1725-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
18816190A4 HOUSING ASSEMBLY, Adapter
(Non-Digital)HOUSING ASSEMBLY, Adapter
(Non-Digital) -
19816190A5 SENDER ASSEMBLY, Oil Level
(Digital)SENDER ASSEMBLY, Oil Level
(Digital) -
2025-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
2132-99802 TUBETUBE
-
2232-99439 HOSE, (114.00 Inches)HOSE, (114.00 Inches)
-
2354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
24NSS NOT SOLD SEPARATE, Decal
(Caution Remove Tank)NOT SOLD SEPARATE, Decal
(Caution Remove Tank)
