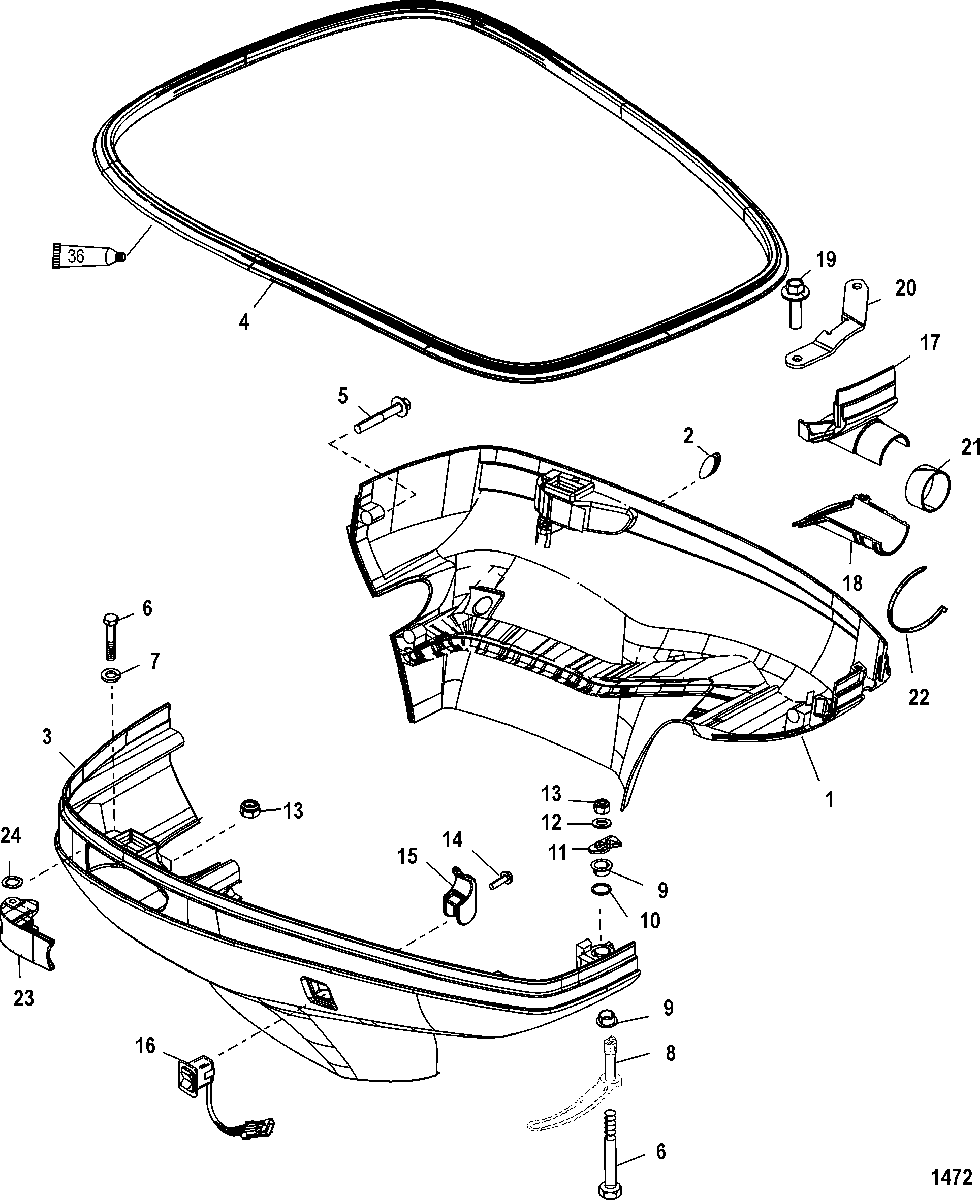

BOTTOM COWL для Mariner - 225 (DFI) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
1100-8M0122314 BOTTOM COWL, PortBOTTOM COWL, Port
-
2854367001 PLUGPLUG
-
3100-8M0122313 BOTTOM COWL, StarboardBOTTOM COWL, Starboard
-
48M0109218 SEAL, (44.00 Inches)SEAL, (44.00 Inches)
-
510-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
610-824868 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
88M0053903 FRONT HANDLEFRONT HANDLE
-
923-335891 BUSHINGBUSHING
-
1025-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
118219423 PAWLPAWL
-
1212-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
1311-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1410-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1554-822873 CLIPCLIP
-
1687-8M0042300 SWITCH, TrimSWITCH, Trim
-
178M8027677 RIGGING KIT (UPPER)RIGGING KIT (UPPER)
-
18NSS NOT SOLD SEPARATE, CLAMP (LOWER)NOT SOLD SEPARATE, CLAMP (LOWER)
-
1910-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
20NSS NOT SOLD SEPARATE, STRAPNOT SOLD SEPARATE, STRAP
-
21859343 FOAMFOAM
-
2254-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
23850682A06 HANDLE, CowlHANDLE, Cowl
-
2413-29402 WAVE WASHERWAVE WASHER
