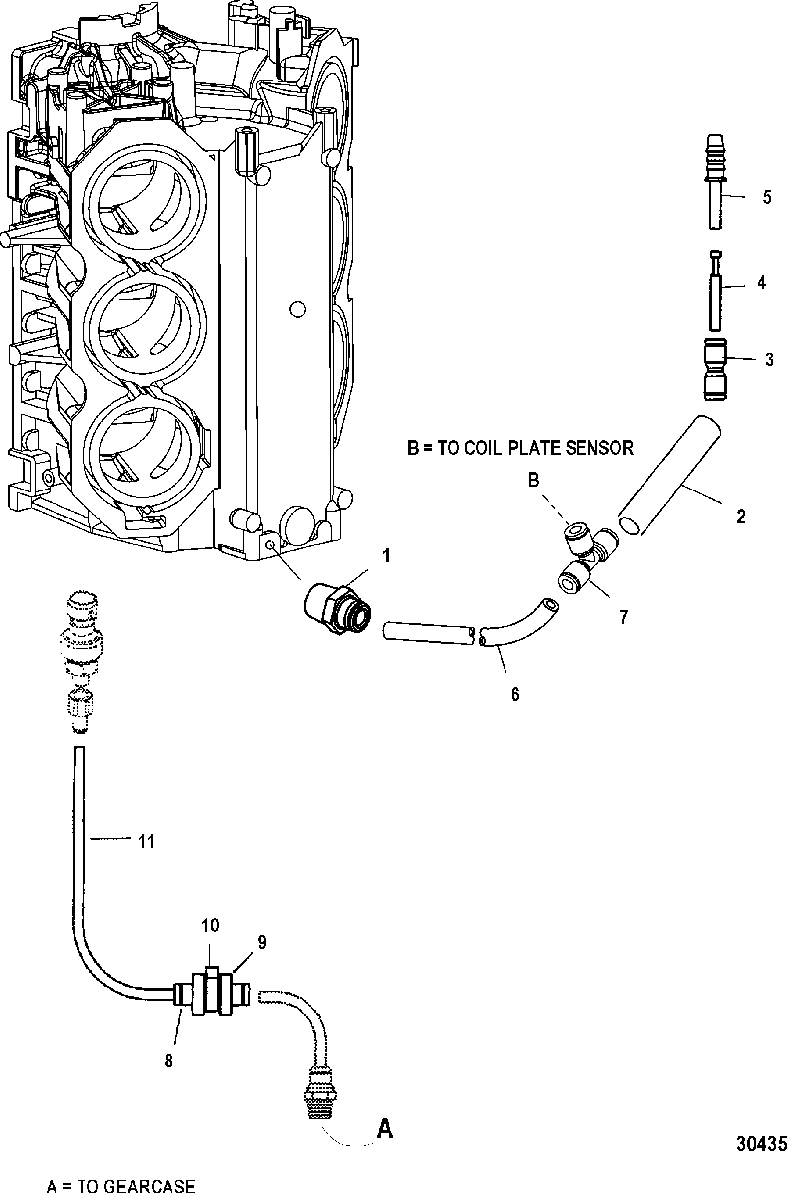

SPEEDO/BLOCK PRESSURE SYSTEM(S/N-0T409000 & UP) для Mariner - 225 (DFI) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
122-881866 FITTINGFITTING
-
232-85978571 TUBING, (44.00 Inches Bulk), Cut to 44 IN.TUBING, (44.00 Inches Bulk), Cut to 44 IN.
-
322-859747 COUPLERCOUPLER
-
422-859732 PLUGPLUG
-
522-859731 FITTING, AdapterFITTING, Adapter
-
632-85978571 TUBING, (44.00 Inches Bulk), Cut to 5 IN.TUBING, (44.00 Inches Bulk), Cut to 5 IN.
-
722-875207 TEE, FittingTEE, Fitting
-
822-859448T FITTINGFITTING
-
925-821555001 GROMMETGROMMET
-
1054-850181 TIE STRAP, (11.750 Inches), Cut to 11-1/2 IN.TIE STRAP, (11.750 Inches), Cut to 11-1/2 IN.
-
1132-85944975 TUBING, (72.00 Inches Bulk), Cut to 46 IN.TUBING, (72.00 Inches Bulk), Cut to 46 IN.
