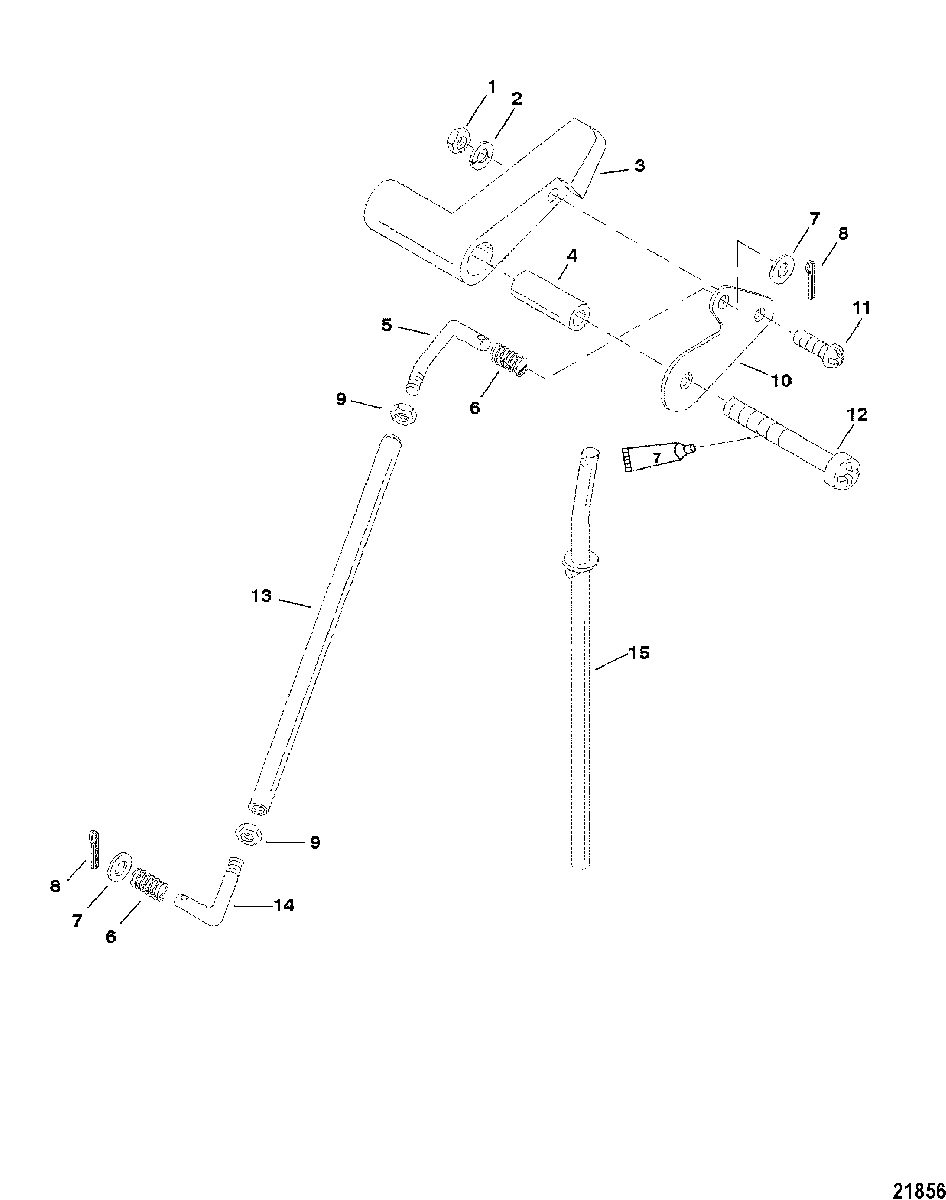

Jet Linkage(S/N 0G157846 & Up) для Mariner - 25, 25 MARATHON, SUPER 15 (2 CYL.) 9807909 THRU 0P016999
-
№АртикулНазвание
-
111-87599 NUTNUT
-
213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
38239521 SHIFT HANDLE (USE WITHOUT REF. #4)SHIFT HANDLE (USE WITHOUT REF. #4)
-
38239522 SHIFT HANDLE (USE WITH REF. #4)SHIFT HANDLE (USE WITH REF. #4)
-
423-809473 SPACER, SleeveSPACER, Sleeve
-
5828251 ROD ENDROD END
-
624-828252 SPRINGSPRING
-
712-846673 WASHER, (.265 x .500 x .060) Stainless SteelWASHER, (.265 x .500 x .060) Stainless Steel
-
818-56206 COTTER PINCOTTER PIN
-
911-29598 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
10828253 LEVER, ShiftLEVER, Shift
-
1110-828254 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
1210-828255 SCREW, (#10-32 x 2.50)SCREW, (#10-32 x 2.50)
-
13828256 SHIFT RODSHIFT ROD
-
14828257 ROD ENDROD END
-
15828258 TILT LATCH RODTILT LATCH ROD
