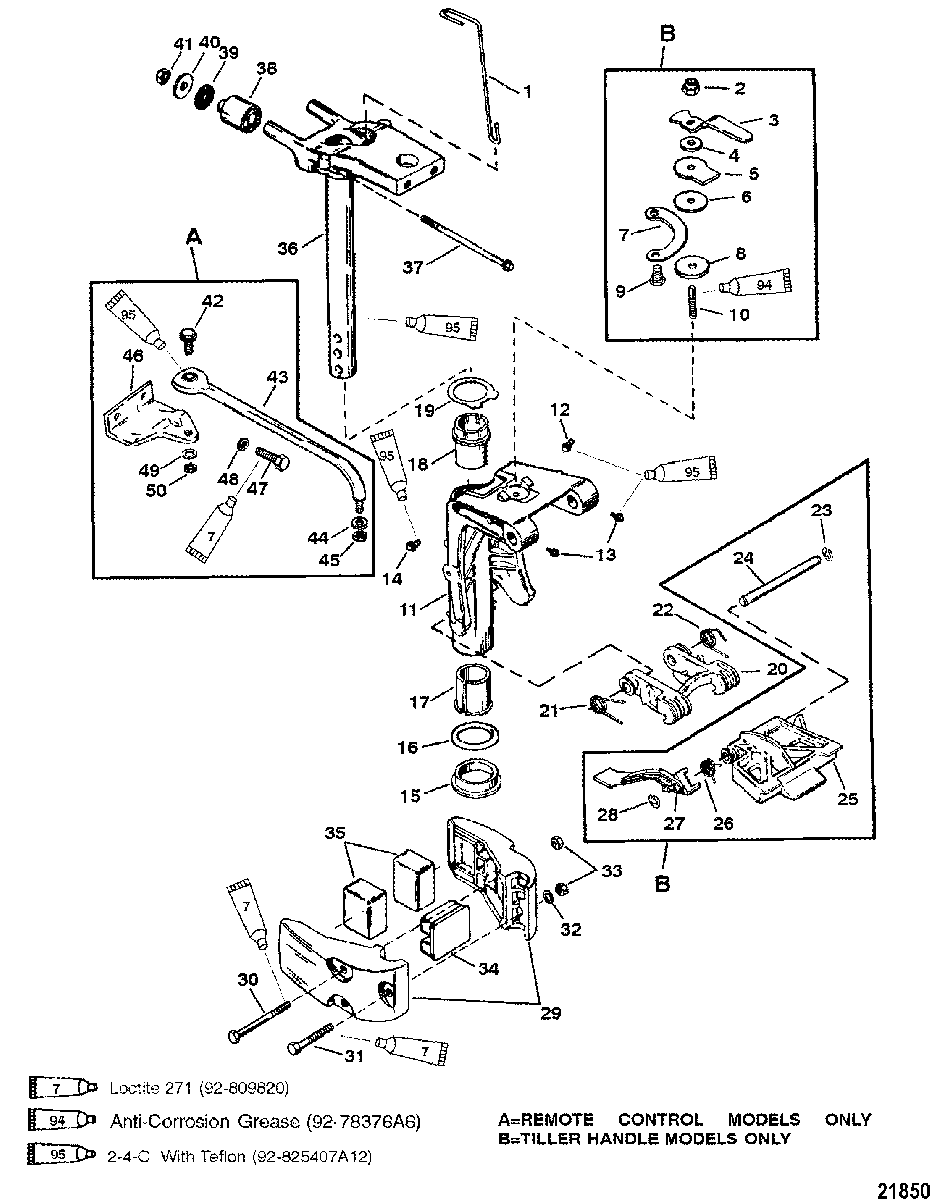

Swivel Bracket Assembly для Mariner - 25, 25 MARATHON, SUPER 15 (2 CYL.) 9807909 THRU 0P016999
-
№АртикулНазвание
-
1165541 ROD, Reverse HookROD, Reverse Hook
-
211-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
3821959 HANDLEHANDLE
-
412-29330 WASHERWASHER
-
5821957 BRAKE PLATEBRAKE PLATE
-
68165621 DISCDISC
-
7821958A1 PLATE KIT (INCLUDED W/REF. #36)PLATE KIT (INCLUDED W/REF. #36)
-
88165621 DISCDISC
-
910-82130014 SCREW, (M6 x 14) (INCLUDED W/REF. #36)SCREW, (M6 x 14) (INCLUDED W/REF. #36)
-
10821961 RODROD
-
113415-822237A3 SWIVEL BRACKET
(BLACK)SWIVEL BRACKET
(BLACK) -
113415-822237A3 SWIVEL BRACKET
(GRAY)SWIVEL BRACKET
(GRAY) -
113415-822237A3 SWIVEL BRACKET
(TRACKER GRAPHITE GRAY)SWIVEL BRACKET
(TRACKER GRAPHITE GRAY) -
1222-74036 FITTING, GreaseFITTING, Grease
-
1322-74036 FITTING, GreaseFITTING, Grease
-
1422-74036 FITTING, GreaseFITTING, Grease
-
1523-85154A1 BUSHING KITBUSHING KIT
-
1625-86993 O-RINGO-RING
-
17NSS NOT SOLD SEPARATE, BushingNOT SOLD SEPARATE, Bushing
-
18NSS NOT SOLD SEPARATE, BushingNOT SOLD SEPARATE, Bushing
-
19NSS NOT SOLD SEPARATE, WasherNOT SOLD SEPARATE, Washer
-
2098830A3 HOOK ASSEMBLY, Reverse LockHOOK ASSEMBLY, Reverse Lock
-
2124-97427 SPRING
(REMOTE CONTROL MODELS)SPRING
(REMOTE CONTROL MODELS) -
2124-879894 SPRING
(ALL OTHER MODELS)SPRING
(ALL OTHER MODELS) -
2224-96018 SPRINGSPRING
-
2353-13194 RING, RetainingRING, Retaining
-
2417-13195 PINPIN
-
2512756 BRACKETBRACKET
-
2624-12754 SPRINGSPRING
-
2712758 LEVERLEVER
-
2853-13194 RING, RetainingRING, Retaining
-
2917232A1 COVER
(BLACK)COVER
(BLACK) -
2917232A1 COVER
(GRAY)COVER
(GRAY) -
2917232A3 COVER
(TRACKER GRAPHITE GRAY)COVER
(TRACKER GRAPHITE GRAY) -
3010-19943100 SCREW, (M8 x 100)SCREW, (M8 x 100)
-
3110-1994360 SCREW, (M8 x 60)SCREW, (M8 x 60)
-
3212-36001 WASHERWASHER
-
3311-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
3485123001 BUMPER, FrontBUMPER, Front
-
3585122001 MOUNTMOUNT
-
36822238A9 SWIVEL HEAD
(BLACK)SWIVEL HEAD
(BLACK) -
36822238A9 SWIVEL HEAD
(GRAY)SWIVEL HEAD
(GRAY) -
36822238A9 SWIVEL HEAD
(TRACKER GRAPHITE GRAY)SWIVEL HEAD
(TRACKER GRAPHITE GRAY) -
3710-125161 SCREW, (M8 x 133.35) Upper MountSCREW, (M8 x 133.35) Upper Mount
-
3814894 MOUNTMOUNT
-
3912-85172 WASHER, UPPER MOUNT SCREWWASHER, UPPER MOUNT SCREW
-
4012-43430 WASHERWASHER
-
4111-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
4210-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
4341323A03 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
4412-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
4511-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
4696186A2 BRACKET ASSEMBLY
(BLACK)BRACKET ASSEMBLY
(BLACK) -
4696186A2 BRACKET, Ride Guide
(GRAY)BRACKET, Ride Guide
(GRAY) -
4710-1993325 SCREW, (M10 x 25 MM)SCREW, (M10 x 25 MM)
-
4813-400248 LOCKWASHER, (M10)LOCKWASHER, (M10)
-
4912-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
5011-8M0042636 NUT, (.375-24)NUT, (.375-24)
