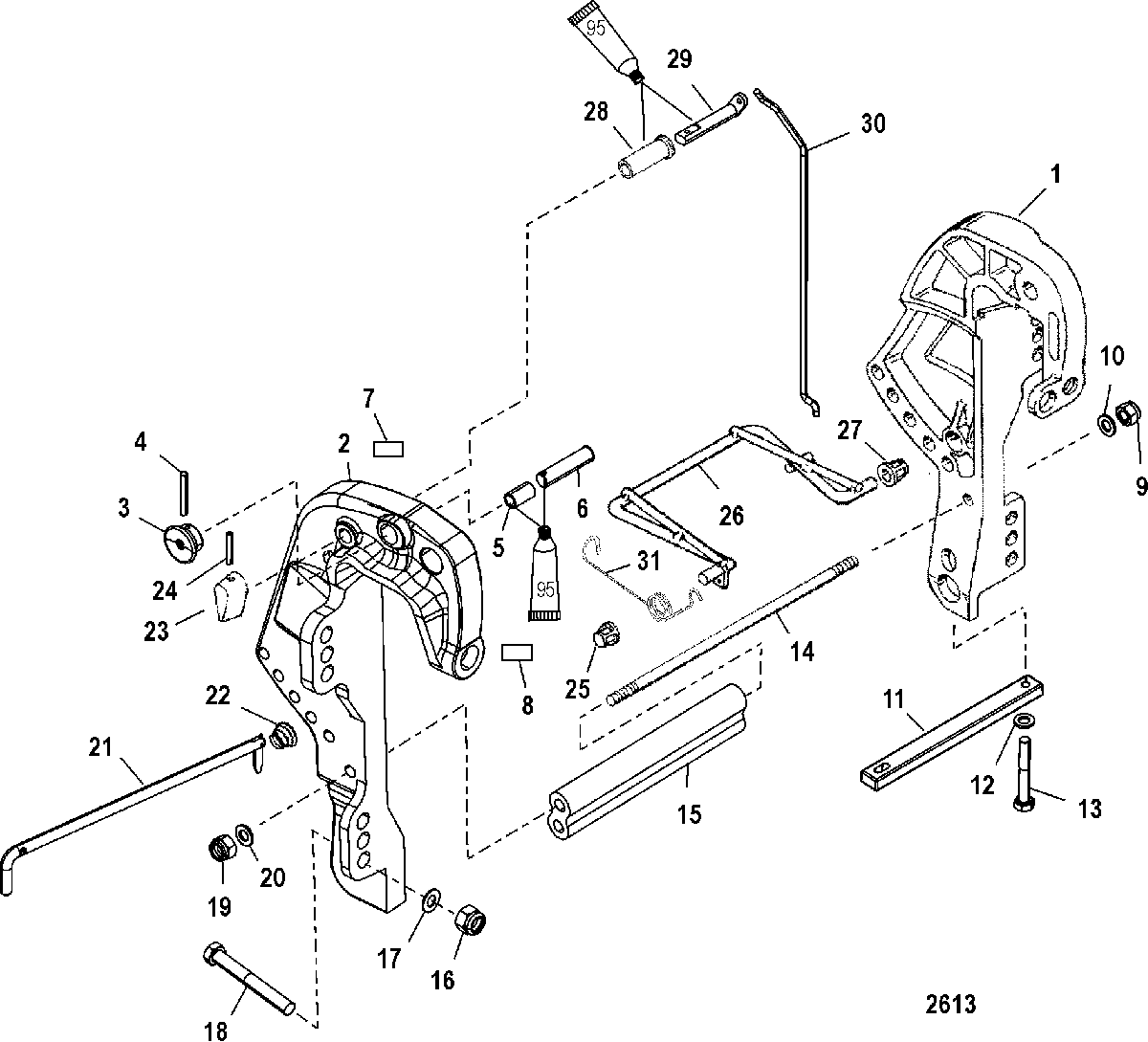

Clamp Bracket(Remote Control) для Mariner - 25 (4-STROKE) 0P153500 THRU 0P388282
-
№АртикулНазвание
-
13411-821773T1 CLAMP BRACKET
(PORT)CLAMP BRACKET
(PORT) -
23412-821774T8 CLAMP BRACKET
(STARBOARD)CLAMP BRACKET
(STARBOARD) -
38224011 CAPCAP
-
417-25810 PINPIN
-
523-86637 BEARINGBEARING
-
617-8224002 PINPIN
-
7NSS NOT SOLD SEPARATE, Decal-Shallow WaterNOT SOLD SEPARATE, Decal-Shallow Water
-
837-830253 DECAL, Tilt LockDECAL, Tilt Lock
-
911-40140 NUT, (M10)NUT, (M10)
-
1012-4002319 WASHERWASHER
-
1197-8252711 ANODEANODE
-
1212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1310-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1416-8M0034459 STUD, (M10 x 277)STUD, (M10 x 277)
-
1523-824952 SPACERSPACER
-
1611-82671117 NUT, (.500-20)NUT, (.500-20)
-
1712-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1810-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
1911-40140 NUT, (M10)NUT, (M10)
-
2012-4002319 WASHERWASHER
-
2117-8M0026103 PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
2224-821461 SPRINGSPRING
-
23822409 LEVERLEVER
-
2417-25319 PIN, (.125 x 0.75 Inches)PIN, (.125 x 0.75 Inches)
-
2523-824858 BUSHING (PLASTIC)BUSHING (PLASTIC)
-
26878580 ROD, PlasticROD, Plastic
-
2723-824858 BUSHING (PLASTIC)BUSHING (PLASTIC)
-
2823-823812 BUSHINGBUSHING
-
29822411 ARMARM
-
30878563 LINK ROD
SN# USA-0T459022 & BelowLINK ROD
SN# USA-0T459022 & Below -
30878563 LINK ROD
SN# USA-0T459023 & UpLINK ROD
SN# USA-0T459023 & Up -
30878563 LINK ROD
SN# Belgium-0P268000 & UpLINK ROD
SN# Belgium-0P268000 & Up -
3124-832085A1 SPRINGSPRING
