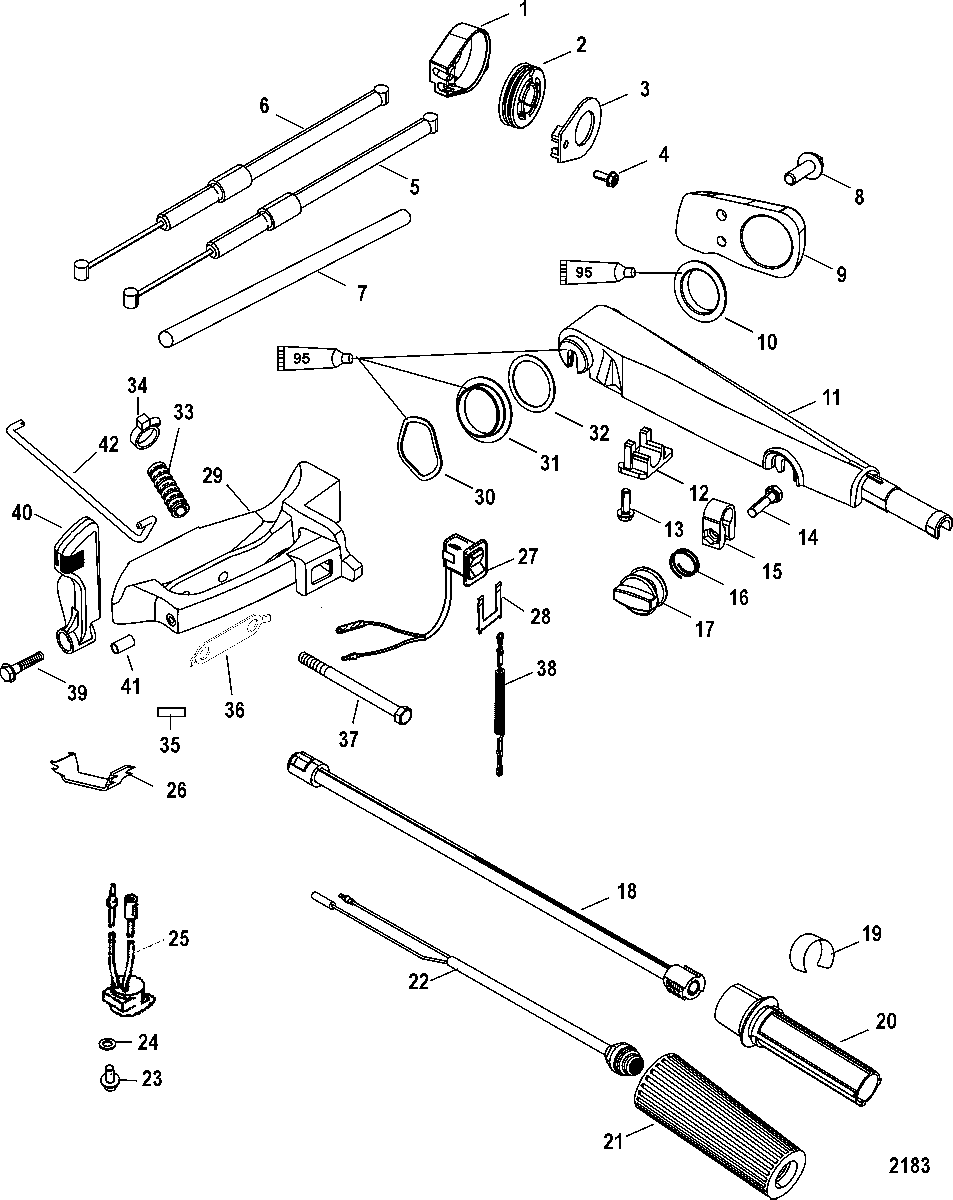

Tiller Handle для Mariner - 25 (4-STROKE) 0P153500 THRU 0P388282
-
№АртикулНазвание
-
1822148A8 COVER KITCOVER KIT
-
2822150 PULLEYPULLEY
-
3NSS NOT SOLD SEPARATE, CaseNOT SOLD SEPARATE, Case
-
410-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
54324214 CABLE ASSEMBLY, Throttle (26.50 Inches)
(26-1/2 IN.)CABLE ASSEMBLY, Throttle (26.50 Inches)
(26-1/2 IN.) -
64324215 CABLE ASSEMBLY, Throttle (27.50 Inches)
(27-1/2 IN.)CABLE ASSEMBLY, Throttle (27.50 Inches)
(27-1/2 IN.) -
785-960099 SLEEVE, (12.00 Inches)SLEEVE, (12.00 Inches)
-
810-82526225 SCREW, (M8 x 25 MM)SCREW, (M8 x 25 MM)
-
98M0072298 COVERCOVER
-
1023-821477 BUSHINGBUSHING
-
11822325T1 ARM, Steering HandleARM, Steering Handle
-
-37-8M0032728 DECAL, Lanyard, BlackDECAL, Lanyard, Black
-
12822441 RETAINERRETAINER
-
1310-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
15892995 LOCK, Throttle
SN# USA-0T979999/BEL-0P325499 & BelowLOCK, Throttle
SN# USA-0T979999/BEL-0P325499 & Below -
15892995 LOCK, Throttle
SN# USA-0T980000/BEL-0P325500 & UpLOCK, Throttle
SN# USA-0T980000/BEL-0P325500 & Up -
1624-96203 SPRINGSPRING
-
17821972T KNOB, ThrottleKNOB, Throttle
-
18821463T01 TILLER TUBETILLER TUBE
-
1937-8242004 DECALDECAL
-
20821465 HANDLE, ThrottleHANDLE, Throttle
-
2199589003 GRIPGRIP
-
2287-8M0104611 SWITCH, Stop
(STOP)SWITCH, Stop
(STOP) -
2310-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
2412-4002316 WASHERWASHER
-
2584-8M0088388 ALARMALARM
-
26823687 CLIPCLIP
-
2787-11083A31 SWITCH, Stop
(STOP)SWITCH, Stop
(STOP) -
288M0032846 RETAINER, BrassRETAINER, Brass
-
29821455A4 BRACKET, TillerBRACKET, Tiller
-
3013-826792 WAVE WASHERWAVE WASHER
-
3123-821477 BUSHINGBUSHING
-
3212-827314 WASHERWASHER
-
3332-828547633 CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk)CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk)
-
3454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3537-82409316 DECAL, F-N-R ShiftDECAL, F-N-R Shift
-
3614-8M0009820 TAB WASHERTAB WASHER
-
3710-82484890 SCREW, (M10 x 90)SCREW, (M10 x 90)
-
388M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
3910-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
40830180A01 HANDLEHANDLE
-
4123-830181 BUSHINGBUSHING
-
428301821 SHIFT RODSHIFT ROD
