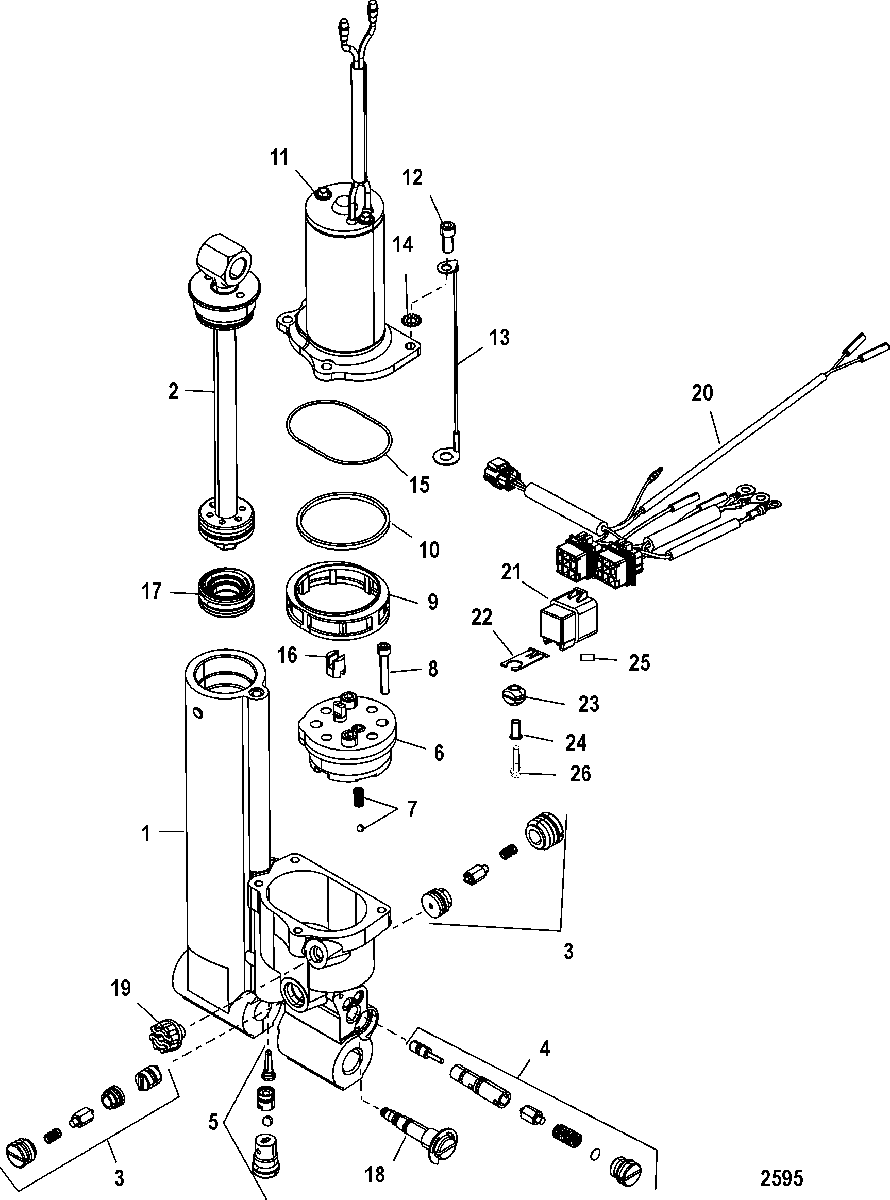

Power Trim для Mariner - 25 (4-STROKE) 0T409000 THRU 1B344298

№

Артикул

Название
1

822344T14 POWER TRIM ASSEMBLY

POWER TRIM ASSEMBLY

159 850 ₽
-

25-827668A1 O-RING KIT

O-RING KIT

11 540 ₽
2

893931A01 SHOCK ROD ASSEMBLY

SHOCK ROD ASSEMBLY

60 310 ₽
3

827671A1 PILOT CHECK ASSEMBLY

PILOT CHECK ASSEMBLY

11 930 ₽
4

827672A1 TILT RELIEF VALVE ASSEMBLY

TILT RELIEF VALVE ASSEMBLY

18 210 ₽
5

827673A1 SEAT ASSEMBLY, Suction

SEAT ASSEMBLY, Suction

14 350 ₽
6

827674A1 PUMP ASSEMBLY

PUMP ASSEMBLY

30 430 ₽
7

NSS NOT SOLD SEPARATE, Spring/down Relief Ball

NOT SOLD SEPARATE, Spring/down Relief Ball

0 ₽
8

NSS NOT SOLD SEPARATE, Screw (10-32 x 1-1/4 Inches)

NOT SOLD SEPARATE, Screw (10-32 x 1-1/4 Inches)

0 ₽
9

NSS NOT SOLD SEPARATE, Filter

NOT SOLD SEPARATE, Filter

0 ₽
10

NSS NOT SOLD SEPARATE, Seal Ring

NOT SOLD SEPARATE, Seal Ring

0 ₽
11

827675A1 MOTOR ASSEMBLY

MOTOR ASSEMBLY

56 170 ₽
12

NSS NOT SOLD SEPARATE, Screw (1/4-28 x 5/8 Inch)

NOT SOLD SEPARATE, Screw (1/4-28 x 5/8 Inch)

0 ₽
13

88238A15 CABLE ASSEMBLY

CABLE ASSEMBLY

510 ₽
14

NSS NOT SOLD SEPARATE, Lockwasher

NOT SOLD SEPARATE, Lockwasher

0 ₽
15

NSS NOT SOLD SEPARATE, O Ring

NOT SOLD SEPARATE, O Ring

0 ₽
16

NSS NOT SOLD SEPARATE, Coupler

NOT SOLD SEPARATE, Coupler

0 ₽
17

827676 PISTON, Memory

PISTON, Memory

5 360 ₽
18

893929A01 MANUAL RELEASE ASSEMBLY

MANUAL RELEASE ASSEMBLY

11 030 ₽
19

19-811613 PLUG ASSEMBLY

PLUG ASSEMBLY

1 710 ₽
-

84-826802T28 HARNESS ASSEMBLY, Trim

HARNESS ASSEMBLY, Trim

11 450 ₽
20

84-826802T20 HARNESS ASSEMBLY, Trim

HARNESS ASSEMBLY, Trim

12 530 ₽
21

882751A1 RELAY ASSEMBLY

RELAY ASSEMBLY

1 520 ₽
22

828102 BRACKET

BRACKET

330 ₽
23

25-818967 GROMMET

GROMMET

130 ₽
24

23-818968 BUSHING

BUSHING

140 ₽
25

NSS NOT SOLD SEPARATE, Decal-Trim Relay

NOT SOLD SEPARATE, Decal-Trim Relay

0 ₽
26

10-82684430 SCREW, (M6 x 30)

SCREW, (M6 x 30)

210 ₽
