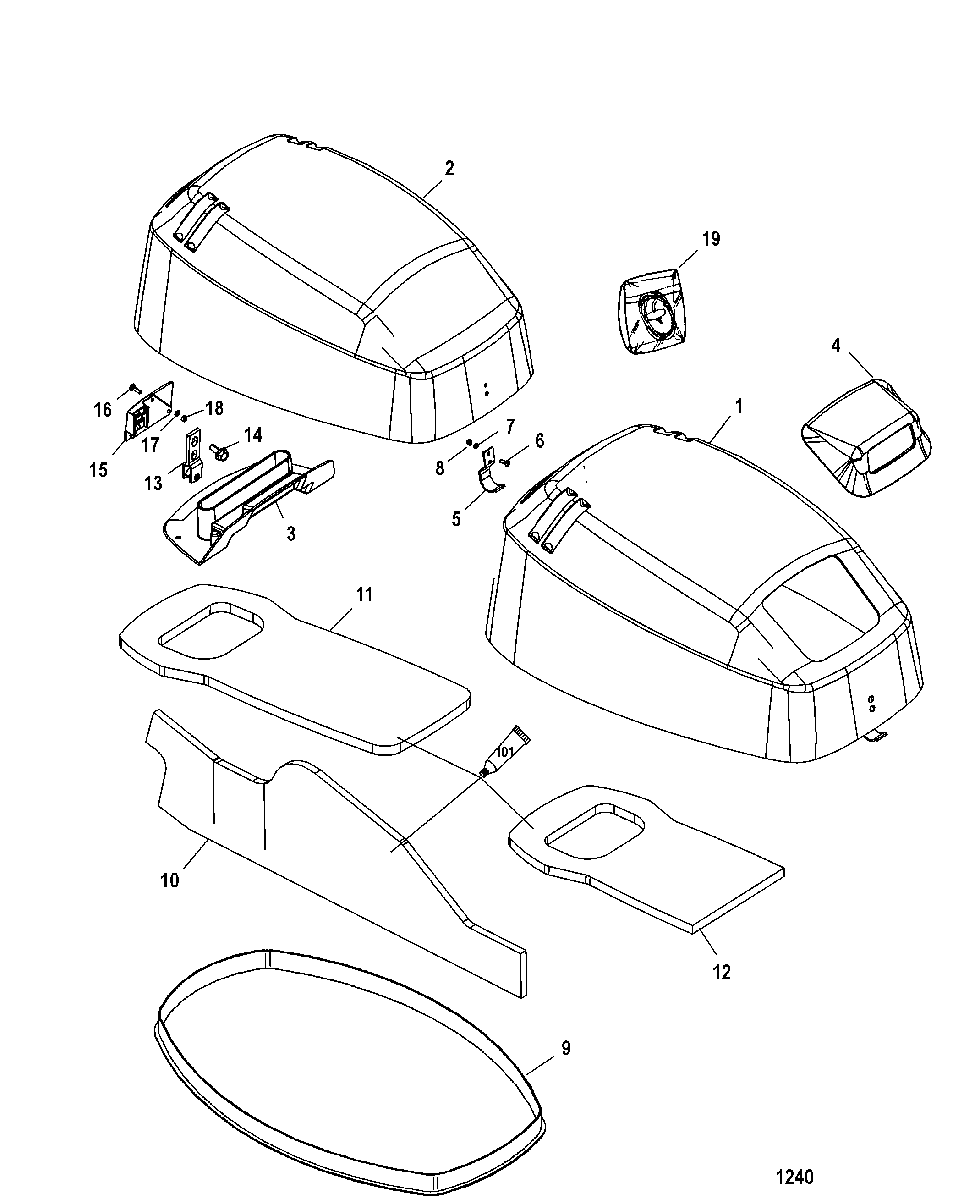

Top Cowl для Mariner - 25 (4-STROKE) 0T409000 THRU 1B344298
-
№АртикулНазвание
-
14027-830562T5 TOP COWL ASSEMBLY
(MANUAL) (BLACK)TOP COWL ASSEMBLY
(MANUAL) (BLACK) -
14027-830562T6 TOP COWL ASSEMBLY
(MANUAL) (SILVER)TOP COWL ASSEMBLY
(MANUAL) (SILVER) -
24027-830562T7 TOP COWL ASSEMBLY
(ELECTRIC) (BLACK)TOP COWL ASSEMBLY
(ELECTRIC) (BLACK) -
24027-830562T8 TOP COWL ASSEMBLY
(ELECTRIC) (SILVER)TOP COWL ASSEMBLY
(ELECTRIC) (SILVER) -
3NSS NOT SOLD SEPARATE, Induction InsertNOT SOLD SEPARATE, Induction Insert
-
4854318 INSERT, Cowl
(MANUAL)INSERT, Cowl
(MANUAL) -
5826291F1 LATCH
(BLACK)LATCH
(BLACK) -
5826291F1 LATCH
(SILVER)LATCH
(SILVER) -
610-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
811-8237515 NUT, (M4)NUT, (M4)
-
98M0043388 SEALSEAL
-
10852556A02 SOUND BLANKET KIT
SN# 1B226999 & BelowSOUND BLANKET KIT
SN# 1B226999 & Below -
10852556A02 SOUND BLANKET KIT
SN# 0P400999 & BelowSOUND BLANKET KIT
SN# 0P400999 & Below -
10852556A02 SOUND BLANKET KIT
SN# 1B227000 & UpSOUND BLANKET KIT
SN# 1B227000 & Up -
11NSS NOT SOLD SEPARATE, Sound Blanket-Top
ELECTRICNOT SOLD SEPARATE, Sound Blanket-Top
ELECTRIC -
12NSS NOT SOLD SEPARATE, Sound Blanket-Top
MANUALNOT SOLD SEPARATE, Sound Blanket-Top
MANUAL -
13893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
1410-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
158M0038412 BRACKETBRACKET
-
1610-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
1713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1811-8237515 NUT, (M4)NUT, (M4)
-
1947341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
