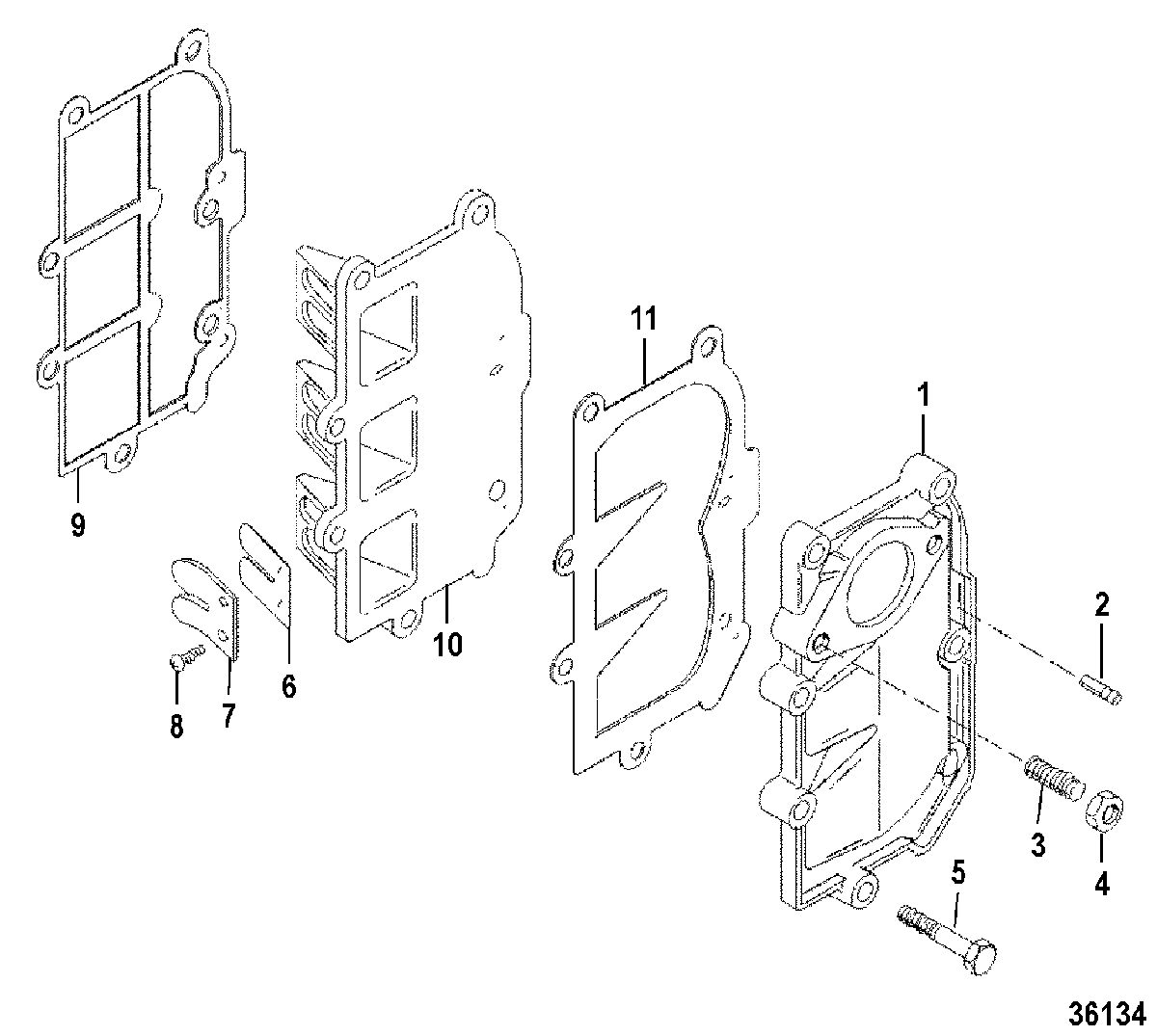

REED PLATE/MANIFOLD ASSEMBLY для Mariner - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999
-
№АртикулНазвание
-
1819150A4 MANIFOLD ASSEMBLY, IntakeMANIFOLD ASSEMBLY, Intake
-
221-426982 CHECK VALVECHECK VALVE
-
316-826622 STUD, (.250-20 x .910) (.250-20 X .910) WITH DRI LOKSTUD, (.250-20 x .910) (.250-20 X .910) WITH DRI LOK
-
411-20890 NUT, (.250-20), CARBURETOR MOUNTNUT, (.250-20), CARBURETOR MOUNT
-
510-819110125 SCREW, (.250-20 X 1.250) (.250-20 X 1.250)SCREW, (.250-20 X 1.250) (.250-20 X 1.250)
-
634-827308 REEDREED
-
734-827307 STOP, ReedSTOP, Reed
-
810-819074 SCREW WITH LOCKWASHER, (#6-32 X .312) (#6-32 X .312)SCREW WITH LOCKWASHER, (#6-32 X .312) (#6-32 X .312)
-
927-819142 GASKET, Reed PlateGASKET, Reed Plate
-
10819153T PLATE, ReedPLATE, Reed
-
1127-819141 GASKET, Intake ManifoldGASKET, Intake Manifold
-
-27-809516A1 GASKET SET, PowerheadGASKET SET, Powerhead
-
-800-819240A6 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
Все узлы модели:
- CARBURETOR
- CLAMP BRACKETS
- COWL ASSEMBLY, TOP AND BOTTOM
- CRANKSHAFT AND PISTON
- CYLINDER BLOCK ASSEMBLY
- FUEL SYSTEM
- FUEL TANK & LINE ASSEMBLY(6.6 GALLON)
- GEAR HOUSING ASSEMBLY(DRIVESHAFT)
- GEAR HOUSING ASSEMBLY(PROPELLER SHAFT)
- IGNITION SYSTEM
- PAINT
- • REED PLATE/MANIFOLD ASSEMBLY
- REMOTE CONTROL LINKAGE
- SHIFT LINKAGE
- STARTER REWIND COMPONENTS
- SWIVEL BRACKET AND DRIVESHAFT HOUSING
- TILLER HANDLE/LINKAGE
- TOOLS, SPECIAL
