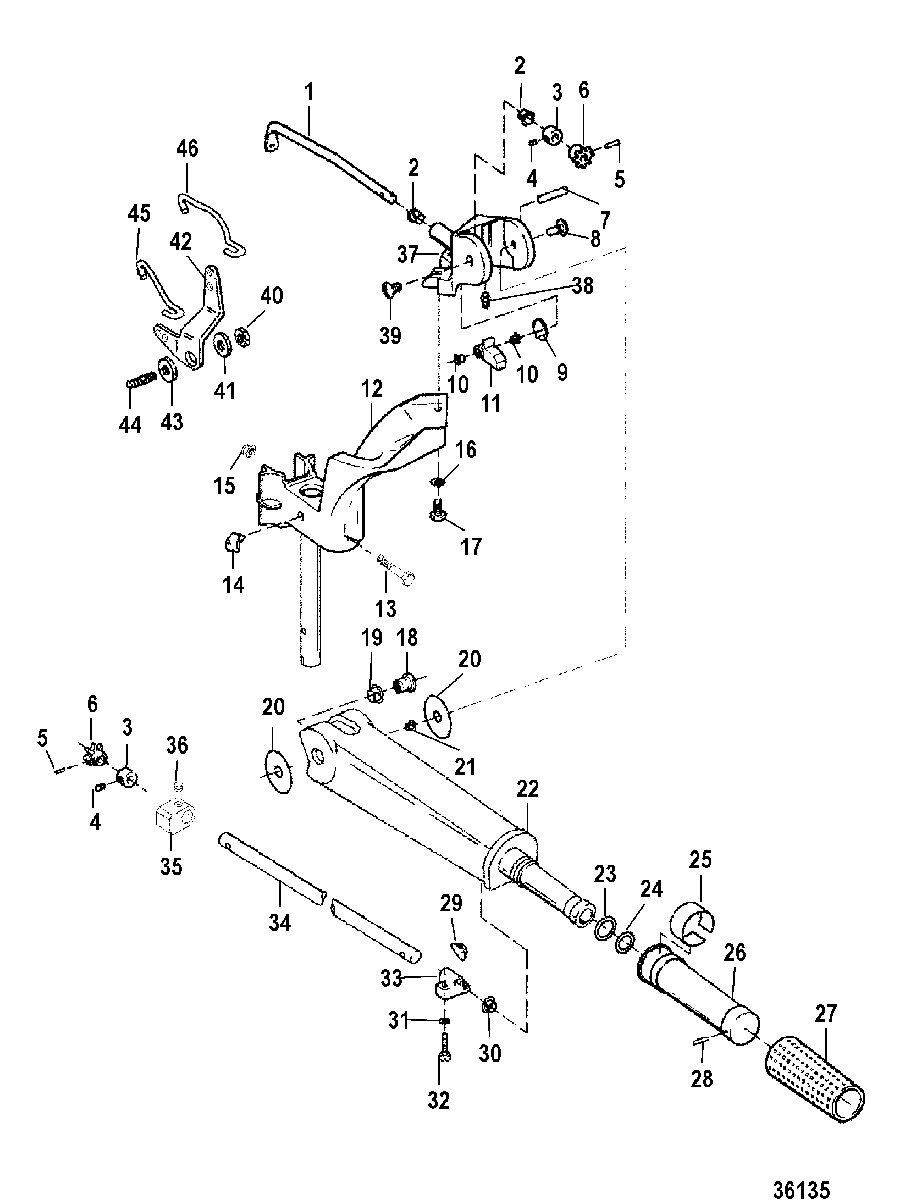

TILLER HANDLE/LINKAGE для Mariner - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999
-
№АртикулНазвание
-
1851928 SHAFT, Throttle ControlSHAFT, Throttle Control
-
223-26841 BUSHINGBUSHING
-
3FA343178 RETAINER KIT, Steering ShaftRETAINER KIT, Steering Shaft
-
410-832794 SET SCREW, (.250-28 X .250) (.250-28 X .250)SET SCREW, (.250-28 X .250) (.250-28 X .250)
-
517-29908 PINPIN
-
643-8180091 GEAR, Steering ShaftGEAR, Steering Shaft
-
717-F1807 PIN, GroovePIN, Groove
-
810-823595 SCREW (SPECIAL)SCREW (SPECIAL)
-
924-F286868 SPRING, Steering Handle StopSPRING, Steering Handle Stop
-
1023-26856 BUSHINGBUSHING
-
11F286490T STOP, Steering HandleSTOP, Steering Handle
-
12835373A6 BRACKET ASSEMBLY, Steering Arm
(MERCURY)BRACKET ASSEMBLY, Steering Arm
(MERCURY) -
12835373A7 BRACKET ASSEMBLY, Steering Arm
(MARINER)BRACKET ASSEMBLY, Steering Arm
(MARINER) -
1310-828815 SCREW, (.250-20 x 1.750) (.250-20 X 1.750)SCREW, (.250-20 x 1.750) (.250-20 X 1.750)
-
1419-F286539 BUMPERBUMPER
-
1511-814101 NUT, (.250-20) Stainless SteelNUT, (.250-20) Stainless Steel
-
1613-72521 LOCKWASHER, Internal ToothLOCKWASHER, Internal Tooth
-
1710-38837 SCREW, (.312-18 x 1.12)SCREW, (.312-18 x 1.12)
-
18F2862241 INSERT, Steering Handle PivotINSERT, Steering Handle Pivot
-
1923-812707 BUSHINGBUSHING
-
2012-F286220 WASHER, Steering HandleWASHER, Steering Handle
-
2123-26856 BUSHINGBUSHING
-
22819279T1 HANDLE, Steering
(MERCURY)HANDLE, Steering
(MERCURY) -
22819279T2 HANDLE, Steering
(MARINER)HANDLE, Steering
(MARINER) -
2325-21836 O-RING, (.796 x .139) (LARGE)O-RING, (.796 x .139) (LARGE)
-
2425-38101 O-RING, (.674 x .103) (SMALL)O-RING, (.674 x .103) (SMALL)
-
2537-F712894 DECAL, Speed/Shift IndicatorDECAL, Speed/Shift Indicator
-
26828406A1 HANDLE/GRIP ASSEMBLY, ThrottleHANDLE/GRIP ASSEMBLY, Throttle
-
27828406 GRIP, Throttle/Steering HandleGRIP, Throttle/Steering Handle
-
2817-72255 PIN, RollPIN, Roll
-
29819227 WEDGE, Steering HandleWEDGE, Steering Handle
-
3023-97896 BUSHINGBUSHING
-
3113-F8058 LOCKWASHER, Internal (#10)LOCKWASHER, Internal (#10)
-
3210-F1829 SCREW, (#10-24 x .875)SCREW, (#10-24 x .875)
-
33F4878161 BEARINGBEARING
-
34819160 SHAFT, Steering HandleSHAFT, Steering Handle
-
35832759 STOP, ThrottleSTOP, Throttle
-
3610-832794 SET SCREW, (.250-28 X .250) (.250-28 X .250)SET SCREW, (.250-28 X .250) (.250-28 X .250)
-
37817751A7 BRACKET ASSEMBLY, Steering
(MERCURY)BRACKET ASSEMBLY, Steering
(MERCURY) -
37817751A8 BRACKET ASSEMBLY, Steering
(MARINER)BRACKET ASSEMBLY, Steering
(MARINER) -
3822-F523274 FITTING, GreaseFITTING, Grease
-
3910-823594 SCREW (SPECIAL)-PIVOTSCREW (SPECIAL)-PIVOT
-
4011-82670911 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
-
4112-F286282 WASHER (SPECIAL)WASHER (SPECIAL)
-
42819148 LEVER, Magneto ControlLEVER, Magneto Control
-
4323-F183813 BEARING, Control LeverBEARING, Control Lever
-
4416-834759 STUD, (.312-24 X 1.14) Special (.312-24 X 1.140)STUD, (.312-24 X 1.14) Special (.312-24 X 1.140)
-
45826846 LINK, Throttle ShaftLINK, Throttle Shaft
-
46824142T LINK, Throttle CamLINK, Throttle Cam
-
-800-819240A6 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
