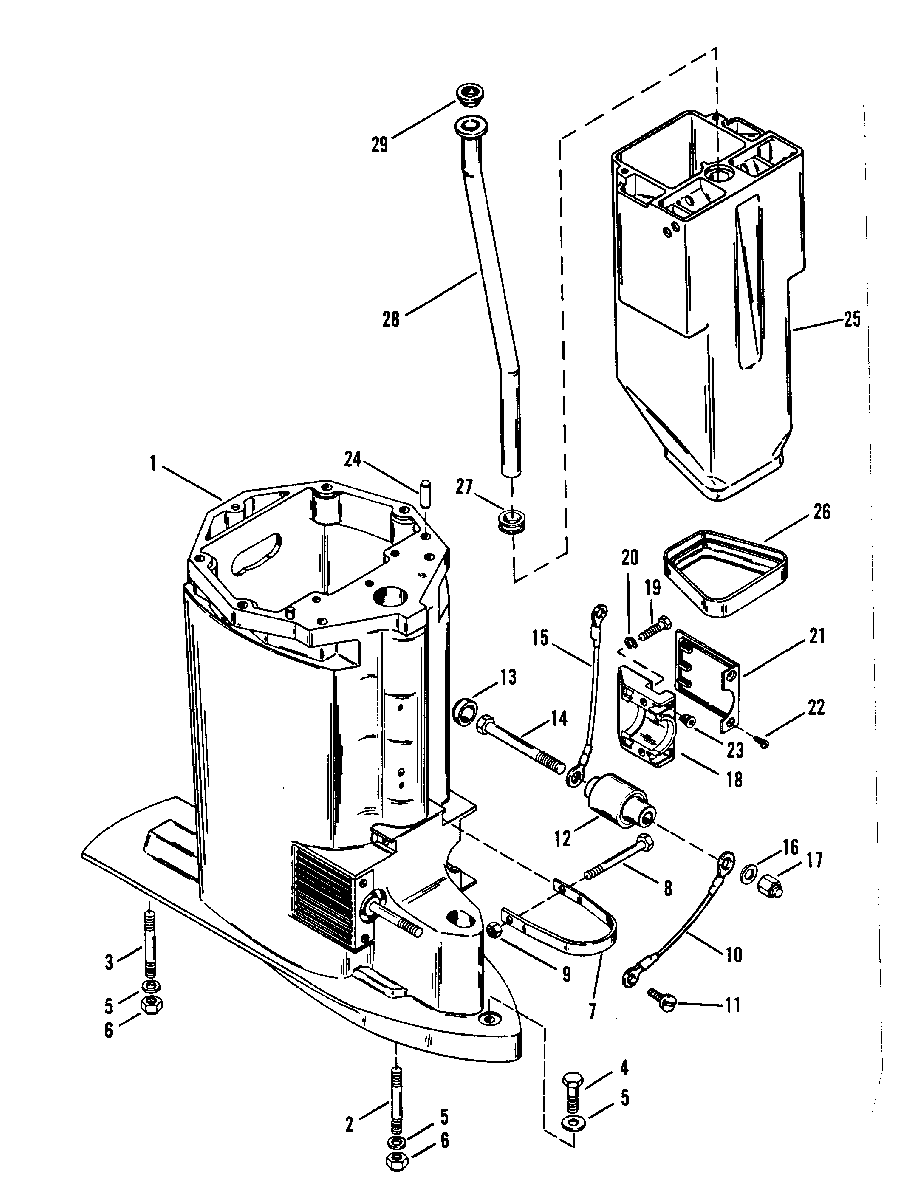

DRIVE SHAFT HOUSING AND EXHAUST TUBE для Mariner - 250/275 0C101891 AND UP
-
№АртикулНазвание
-
11594-8437A2 DRIVE SHAFT HOUSING (LONG) (BLACK)DRIVE SHAFT HOUSING (LONG) (BLACK)
-
11594-9099A2 DRIVE SHAFT HOUSING (X-LONG) (BLACK)DRIVE SHAFT HOUSING (X-LONG) (BLACK)
-
11594-9673A3 DRIVE SHAFT HOUSING (XX-LONG) (BLACK)DRIVE SHAFT HOUSING (XX-LONG) (BLACK)
-
11594-8437A3 DRIVE SHAFT HOUSING (LONG) (GRAY)DRIVE SHAFT HOUSING (LONG) (GRAY)
-
11594-9099A3 DRIVE SHAFT HOUSING (X-LONG) (GRAY)DRIVE SHAFT HOUSING (X-LONG) (GRAY)
-
11594-9673A4 DRIVE SHAFT HOUSING (XX-LONG) (GRAY)DRIVE SHAFT HOUSING (XX-LONG) (GRAY)
-
216-8M0034453 STUD (2-3/16")STUD (2-3/16")
-
316-57984 STUD (2-3/8")STUD (2-3/8")
-
410-54493 SCREWSCREW
-
512-45176 WASHERWASHER
-
611-34933 NUTNUT
-
788758T STRAP (BLACK)STRAP (BLACK)
-
788758T6 STRAP (GRAY)STRAP (GRAY)
-
810-67769 SCREWSCREW
-
911-25269 NUTNUT
-
1088238A10 GROUND WIRE ASSEMBLYGROUND WIRE ASSEMBLY
-
1110-41508 SCREWSCREW
-
1277327 MOUNTMOUNT
-
1325067 BUMPERBUMPER
-
1410-96853 SCREWSCREW
-
1588238A10 GROUND WIRE ASSEMBLYGROUND WIRE ASSEMBLY
-
1612-49339 WASHERWASHER
-
1711-25096 NUTNUT
-
1854-8M0036782 CLAMPCLAMP
-
1910-82127335 SCREWSCREW
-
2013-400247 LOCKWASHERLOCKWASHER
-
21100-8M4500752 COVER (BLACK)COVER (BLACK)
-
21100-8M4500752 COVER (GRAY)COVER (GRAY)
-
2210-88417 SCREW (5/8")SCREW (5/8")
-
2311-35521 NUTNUT
-
2417-20433 DOWEL PINDOWEL PIN
-
25888874 EXHAUST TUBEEXHAUST TUBE
-
2688883 SEALSEAL
-
2725-89417 GROMMETGROMMET
-
2832-88884 WATER TUBE (LONG)WATER TUBE (LONG)
-
2832-89098 WATER TUBE (X-LONG)WATER TUBE (X-LONG)
-
2832-96128 WATER TUBE (XX-LONG)WATER TUBE (XX-LONG)
-
2926-89419 SEALSEAL
