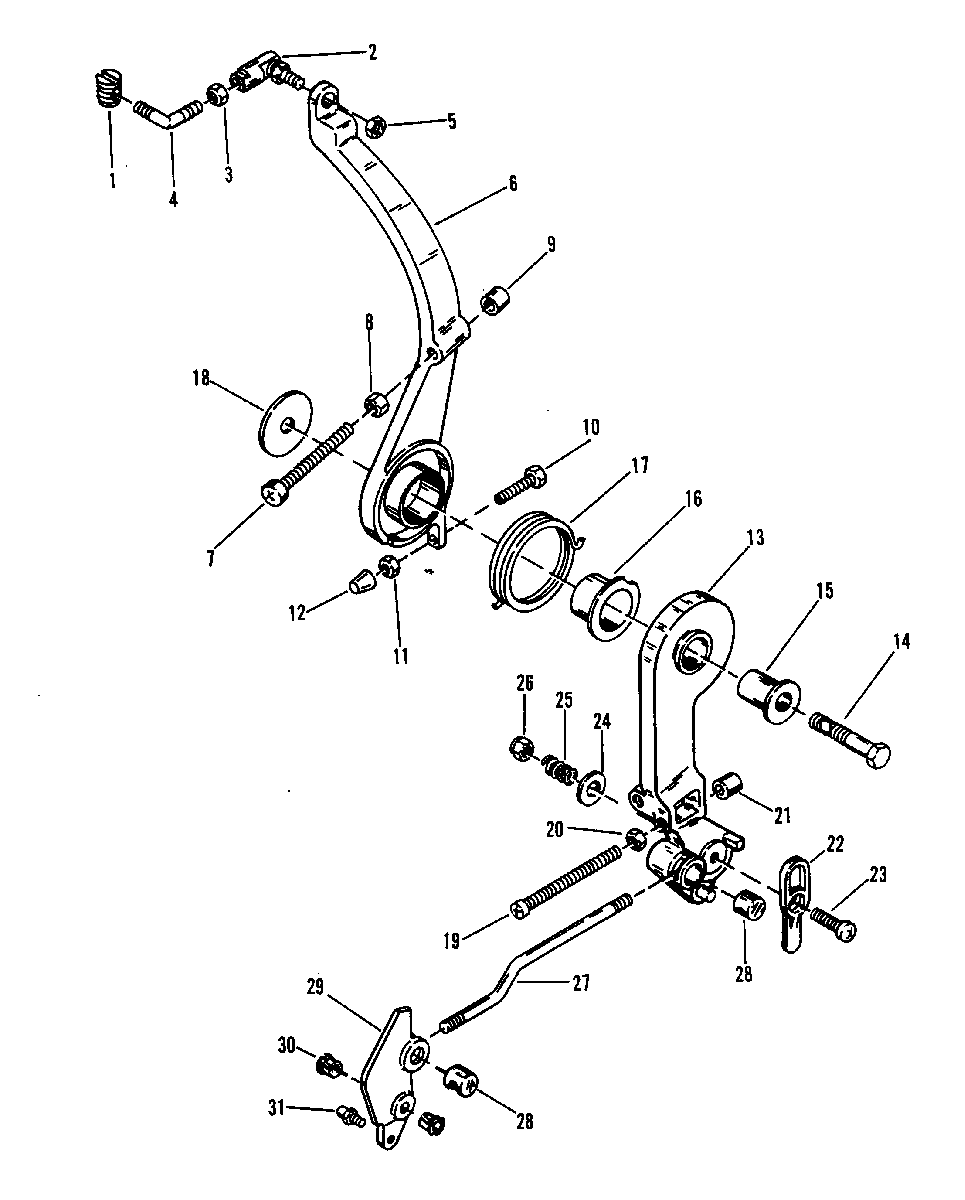

THROTTLE LEVER для Mariner - 250/275 0C101891 AND UP
-
№АртикулНазвание
-
174897T PIVOTPIVOT
-
262459T BALL JOINTBALL JOINT
-
311-45076 NUTNUT
-
476035 LINK RODLINK ROD
-
511-46438 NUTNUT
-
689811 SPARK ADVANCE LEVERSPARK ADVANCE LEVER
-
710-75168 SCREWSCREW
-
811-29598 NUTNUT
-
952023 CAPCAP
-
1010-12405 SCREW (1-1/4")SCREW (1-1/4")
-
1111-68219 NUTNUT
-
1248039 CAPCAP
-
1394818 THROTTLE CONTROL LEVERTHROTTLE CONTROL LEVER
-
1410-818165 SCREW (1-3/4")SCREW (1-3/4")
-
1523-55164 BUSHINGBUSHING
-
1623-55171 BUSHINGBUSHING
-
1724-55162 SPRINGSPRING
-
1812-46765 WASHERWASHER
-
1910-75168 SCREWSCREW
-
2011-29598 NUTNUT
-
2152023 CAPCAP
-
2239483 LATCHLATCH
-
2310-69026 SCREWSCREW
-
2412-69057 WASHERWASHER
-
2524-20099 SPRINGSPRING
-
2611-826709109 NUTNUT
-
2793259 THROTTLE CONTROL RODTHROTTLE CONTROL ROD
-
2860572 BARRELBARREL
-
298130011 THROTTLE CAMTHROTTLE CAM
-
3023-26856 BUSHINGBUSHING
-
3110-41122 BALL SCREWBALL SCREW
Все узлы модели:
- CARBURETOR ASSEMBLY
- CARBURETOR HOSES AND FITTINGS (SERIAL #D000750 AND ABOVE)
- CARBURETOR PLATE AND REED BLOCK (SERIAL #D000749 AND BELOW)
- CARBURETOR PLATE AND REED BLOCK (SERIAL #D000750 AND ABOVE)
- COWLS AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND END CAPS
- DRIVE SHAFT HOUSING AND EXHAUST TUBE
- DUAL ENGINE EXTENSION KIT (COUNTER ROTATION DESIGN I)
- DUAL ENGINE EXTENSION KIT (COUNTER ROTATION DESIGN II)
- ENRICHNER VALVE AND HOSES (SERIAL #D000749 AND BELOW)
- EXHAUST MANIFOLD AND CYLINDER HEAD
- EXHAUST PLATE
- FLYWHEEL/STATOR
- FUEL PUMP (FUEL PUMP BODY IS BLACK)
- FUEL PUMP (SERIAL #D000749 AND BELOW)
- FUEL PUMP(SERIAL #D000750 AND ABOVE)FUEL PUMP BODY WHITE/RED
- GEAR HOUSING (DRIVE SHAFT) (COUNTER ROTATION)
- GEAR HOUSING (DRIVE SHAFT) (STANDARD ROTATION)
- GEAR HOUSING (PROPELLER SHAFT) (COUNTER ROTATION)
- GEAR HOUSING (PROPELLER SHAFT) (STANDARD ROTATION)
- HYDRAULIC PUMP
- HYDRAULIC PUMP (DESIGN I)
- HYDRAULIC PUMP AND MOUNTING BRACKETS
- INSTRUMENTATION
- KEY SWITCH ASSEMBLY
- MISCELLANEOUS PARTS/ACCESSORIES
- OIL INJECTION COMPONENTS
- SOUND ATTENUATOR AND COWL BRACKET
- STARTER MOTOR AND IGNITION COILS
- STARTER MOTOR ASSEMBLY
- SWIVEL BRACKET AND STEERING ARM
- • THROTTLE LEVER
- TRANSOM BRACKETS
- WIRING HARNESS, STARTER SOLENOID AND RECTIFIER
