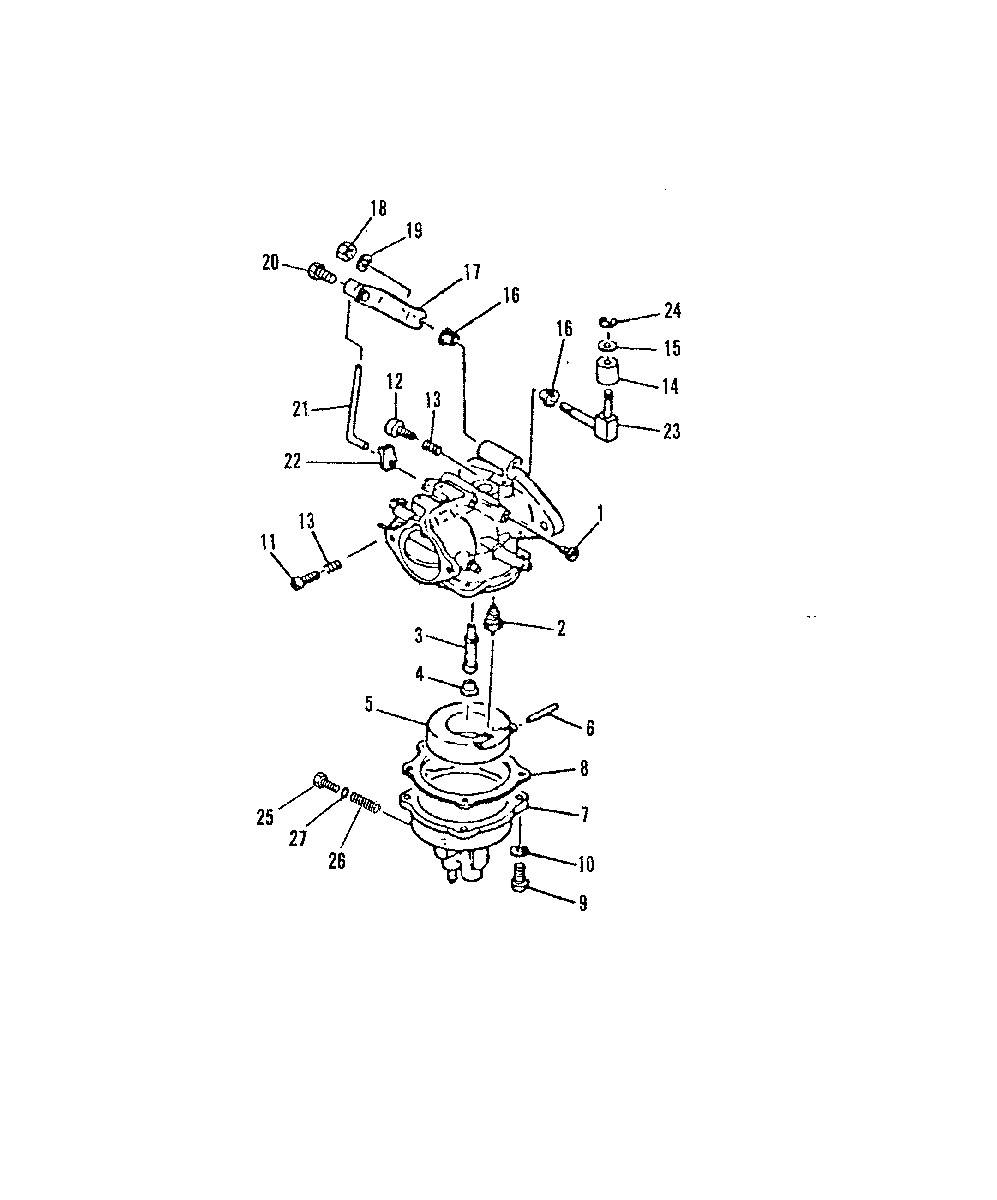

CARBURETOR для Mariner - 25C (THRU PROP. EXHAUST) 695-023896 AND UP
-
№АртикулНазвание
-
0-11383-6850M CARBURETOR ASS'Y
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999CARBURETOR ASS'Y
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999 -
0-11383-6850M CARBURETOR ASS'Y
(EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731CARBURETOR ASS'Y
(EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731 -
180578M JET, LOW SPEED (#60)JET, LOW SPEED (#60)
-
280593M INLET VALVE & SEATINLET VALVE & SEAT
-
380576M NOZZLE, MAINNOZZLE, MAIN
-
492580M JET, MAIN (#146)
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999JET, MAIN (#146)
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999 -
480582M JET, MAIN (#140)
(EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731JET, MAIN (#140)
(EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731 -
580591M FLOATFLOAT
-
617-80592M PIN, FLOATPIN, FLOAT
-
714234M FLOAT, BOWL
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999FLOAT, BOWL
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999 -
783200M FLOAT BOWL
(EL-254328 EUL-650245) AND BELOW SERIAL 00000000-00026731FLOAT BOWL
(EL-254328 EUL-650245) AND BELOW SERIAL 00000000-00026731 -
827-80590M GASKET, FLOAT BOWLGASKET, FLOAT BOWL
-
910-82515M SCREWSCREW
-
1013-82206M LOCKWASHERLOCKWASHER
-
1110-83509M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
1210-80573M SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
1324-80575M SPRINGSPRING
-
1423-84454M BUSHING, THROTTLE SHAFTBUSHING, THROTTLE SHAFT
-
1512-82209M WASHERWASHER
-
1623-81941M BUSHING, THROTTLE SHAFTBUSHING, THROTTLE SHAFT
-
1780622M LEVER, THROTTLELEVER, THROTTLE
-
1811-83763M NUTNUT
-
1913-82186M LOCKWASHERLOCKWASHER
-
2010-83112M SET SCREW, THROTTLE LEVERSET SCREW, THROTTLE LEVER
-
2183160M LINK ROD, THROTTLE LEVERLINK ROD, THROTTLE LEVER
-
2216333 JOINTJOINT
-
23811037M SHAFT, THROTTLESHAFT, THROTTLE
-
2453-82328M SNAP RINGSNAP RING
-
2510-80349M VALVE, DRAIN
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999VALVE, DRAIN
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999 -
2624-80331M SPRING, DRAIN VALVE
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999SPRING, DRAIN VALVE
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999 -
2725-80350M O-RING
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999O-RING
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999 -
27811038M REPAIR KIT, CARBURATOR
REPLACEMENT PARTSREPAIR KIT, CARBURATOR
REPLACEMENT PARTS -
-27-92575M POWERHEAD GASKET SETPOWERHEAD GASKET SET
