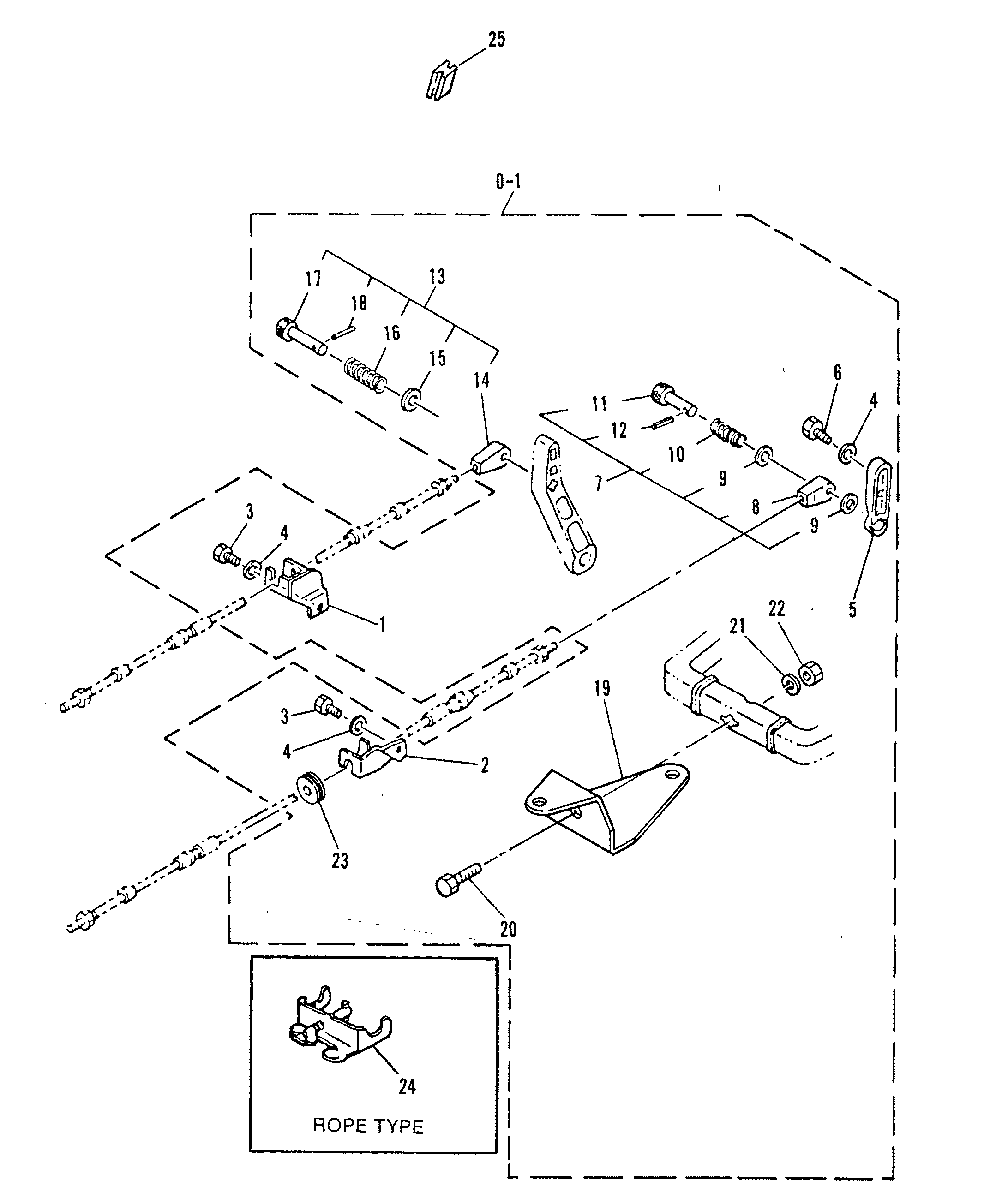

REMOTE CONTROL ATTACHING KIT для Mariner - 25C (THRU PROP. EXHAUST) 695-023896 AND UP
-
№АртикулНазвание
-
0-143991A1 ATTACHING KIT (BALL POST TYPE)ATTACHING KIT (BALL POST TYPE)
-
184221M BRACKET, GEAR SHIFTBRACKET, GEAR SHIFT
-
283717M BRACKET, THROTTLEBRACKET, THROTTLE
-
310-826957M BOLTBOLT
-
412-82214M WASHERWASHER
-
584222M THROTTLE LEVERTHROTTLE LEVER
-
610-91772M BOLTBOLT
-
783723M CABLE END ASS'Y (THROTTLE)CABLE END ASS'Y (THROTTLE)
-
883724M CABLE ENDCABLE END
-
912-82216M WASHERWASHER
-
1024-83725M SPRINGSPRING
-
1117-814499M HOOKHOOK
-
1217-82146M PIN, ROLLPIN, ROLL
-
1383719M CABLE END ASS'Y (SHIFT)CABLE END ASS'Y (SHIFT)
-
1483720M CABLE ENDCABLE END
-
1512-82216M WASHERWASHER
-
1624-83721M SPRINGSPRING
-
1717-814500M HOOKHOOK
-
1817-82146M PIN, ROLLPIN, ROLL
-
1991635M BRACKET, STEERINGBRACKET, STEERING
-
2010-91636M BOLTBOLT
-
2112-82220M WASHERWASHER
-
2211-81785M LOCKNUTLOCKNUT
-
2325-97031M GROMMETGROMMET
-
2483727M BRACKET, STEERING (ROPE TYPE)BRACKET, STEERING (ROPE TYPE)
-
2525-83728M GROMMET, (OPT)GROMMET, (OPT)
