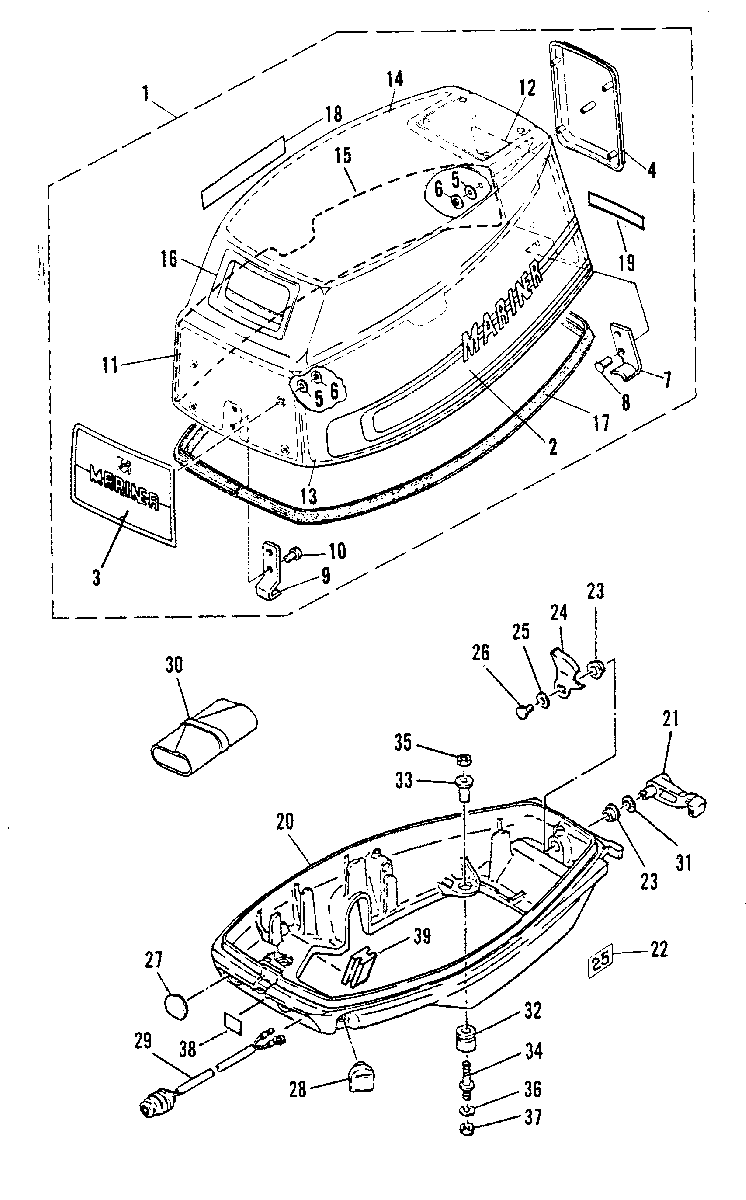

COWLING для Mariner - 25C (THRU PROP. EXHAUST) 695-300101 THRU 318173
-
№АртикулНазвание
-
12168-9387M TOP COWL ASS'Y
(SERIAL 00009375-09999999)TOP COWL ASS'Y
(SERIAL 00009375-09999999) -
12168-9387M TOP COWL ASS'Y
(SERIAL 00000000-00009375)TOP COWL ASS'Y
(SERIAL 00000000-00009375) -
237-95670M DECAL, SIDE AND REAR SET
(SERIAL 00009376-09999999)DECAL, SIDE AND REAR SET
(SERIAL 00009376-09999999) -
237-81114M DECAL, SIDE SET
(SERIAL 00000000-00009375)DECAL, SIDE SET
(SERIAL 00000000-00009375) -
337-95641M EMBLEM, FRONT
(SERIAL 00009376-09999999)EMBLEM, FRONT
(SERIAL 00009376-09999999) -
382898M APPLIQUE, FRONT
(SERIAL 00000000-00009375)APPLIQUE, FRONT
(SERIAL 00000000-00009375) -
482899M APPLIQUE, REAR
(SERIAL 00000000-00019910)APPLIQUE, REAR
(SERIAL 00000000-00019910) -
512-80884M WASHER, APPLIQUE NUT
(SERIAL 00000000-00009375)WASHER, APPLIQUE NUT
(SERIAL 00000000-00009375) -
611-82927M NUT, APPLIQUE ATTACHING
(SERIAL 00000000-00009375)NUT, APPLIQUE ATTACHING
(SERIAL 00000000-00009375) -
783212M HOLDER, CLAMP BANDHOLDER, CLAMP BAND
-
817-84903M RIVETRIVET
-
983137M HOOKHOOK
-
1017-83140M RIVETRIVET
-
1184323M SOUND BLANKET FRONTSOUND BLANKET FRONT
-
1284323M SOUND BLANKET, REARSOUND BLANKET, REAR
-
1383125M SOUND BLANKET, STARBOARDSOUND BLANKET, STARBOARD
-
1483232M SOUND BLANKET, TOPSOUND BLANKET, TOP
-
1583125M SOUND BLANKET, PORTSOUND BLANKET, PORT
-
1680601M SEAL, RUBBER-STARTERSEAL, RUBBER-STARTER
-
1784901M SEAL, TOP COWLSEAL, TOP COWL
-
1837-81202M INDICATOR, SHIFTINDICATOR, SHIFT
-
1937-95547M DECAL, ELECTRIC MODELS
(SERIAL 00252996-09999999)DECAL, ELECTRIC MODELS
(SERIAL 00252996-09999999) -
202168-9349M BOTTOM COWLBOTTOM COWL
-
2184913M LEVER, COWL CLAMPLEVER, COWL CLAMP
-
2237-82900M GRAPHIC, SIDE (HP)GRAPHIC, SIDE (HP)
-
2323-81949M BUSHING, COWL CLAMP LEVERBUSHING, COWL CLAMP LEVER
-
2454-84914M CLAMP, COWLCLAMP, COWL
-
2512-81794M WASHERWASHER
-
2610-84088M BOLTBOLT
-
2725-83988M GROMMET, BOTTOM COWL (MANUAL)GROMMET, BOTTOM COWL (MANUAL)
-
2825-826981M GROMMET, BOTTOM COWLGROMMET, BOTTOM COWL
-
2987-93102M STOP SWITCH (MANUAL)
(SERIAL 00009376-09999999)STOP SWITCH (MANUAL)
(SERIAL 00009376-09999999) -
2987-91622M STOP SWITCH (MANUAL) (M-009375 ML-308480 E-251700 EL-552630)
(SERIAL 00000000-00009375)STOP SWITCH (MANUAL) (M-009375 ML-308480 E-251700 EL-552630)
(SERIAL 00000000-00009375) -
3091-803581 TOOL KITTOOL KIT
-
3113-81869M WASHER, WAVEWASHER, WAVE
-
3225-84910M GROMMETGROMMET
-
3323-84911M COLARCOLAR
-
3416-95505M BOLT, SPECIALBOLT, SPECIAL
-
3511-82383M NUTNUT
-
3612-82217M WASHERWASHER
-
3711-82383M NUTNUT
-
3837-95570M DECAL
SERIAL 00019911-09999999DECAL
SERIAL 00019911-09999999 -
3925-83728M GROMMET, OPT. (FOR ENGINE WITHOUT MANUAL STEERING)
(SERIAL 00019911-09999999)GROMMET, OPT. (FOR ENGINE WITHOUT MANUAL STEERING)
(SERIAL 00019911-09999999)
