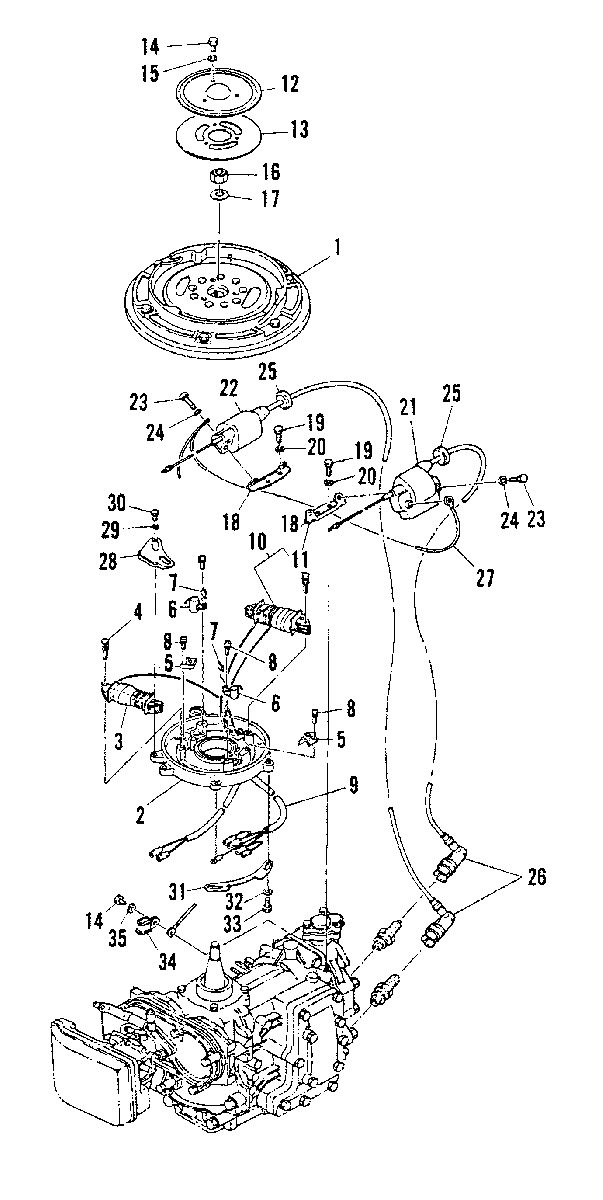

FLYWHEEL MAGNETO для Mariner - 25C (THRU PROP. EXHAUST) 695-300101 THRU 318173
-
№АртикулНазвание
-
0-1253-7953M FLYWHEEL MAG ASS'Y (MANUAL START MODEL)FLYWHEEL MAG ASS'Y (MANUAL START MODEL)
-
0-1253-7954M FLYWHEEL MAG ASS'Y (ELECTRIC START MODEL)FLYWHEEL MAG ASS'Y (ELECTRIC START MODEL)
-
1253-7955M FLYWHEEL ASS'Y (MANUAL START MODEL)FLYWHEEL ASS'Y (MANUAL START MODEL)
-
1253-7956M FLYWHEEL ASS'Y (ELECTRIC START MODEL)FLYWHEEL ASS'Y (ELECTRIC START MODEL)
-
292592M BASE, MAGNETOBASE, MAGNETO
-
383281T PRIMARY IGNITION COILPRIMARY IGNITION COIL
-
410-83108M SCREW W/WASHERSCREW W/WASHER
-
580930M BREAKER ASS'YBREAKER ASS'Y
-
680558M CONDENSERCONDENSER
-
780025M LUBRICATORLUBRICATOR
-
810-82500M SCREW W/WASHERSCREW W/WASHER
-
984-92594M LEAD WIRELEAD WIRE
-
1083315M LIGHTING COILLIGHTING COIL
-
1110-83108M SCREW W/WASHERSCREW W/WASHER
-
1280688M COVER, FLYWHEELCOVER, FLYWHEEL
-
1327-80690M GASKET, FLYWHEEL COVERGASKET, FLYWHEEL COVER
-
1410-91772M BOLTBOLT
-
1512-82213M WASHERWASHER
-
1611-81770M NUTNUT
-
1712-81814M WASHERWASHER
-
1881657M BRACKET, SECONDARY COILBRACKET, SECONDARY COIL
-
1910-84211M BOLTBOLT
-
2012-82214M WASHER, LOCKWASHER, LOCK
-
2192596M SECONDARY IGNITION COIL ASS'Y #1 CYLSECONDARY IGNITION COIL ASS'Y #1 CYL
-
2292595M SECONDARY IGNITION COIL ASS'Y #2 CYLSECONDARY IGNITION COIL ASS'Y #2 CYL
-
2310-82405M BOLTBOLT
-
2413-82212M WASHER, LOCKWASHER, LOCK
-
2525-82069M GROMMETGROMMET
-
2685-815119M PLUG CAP ASS'Y (NOISE SUPPRESSOR) STDPLUG CAP ASS'Y (NOISE SUPPRESSOR) STD
-
2685-63709A1 PLUG CAP ASS'YPLUG CAP ASS'Y
-
2784-96585M WIREWIRE
-
2892591M CAMCAM
-
2912-82211M WASHERWASHER
-
3010-84313M BOLTBOLT
-
3199951M STOP, MAGNETO BASESTOP, MAGNETO BASE
-
3212-82213M WASHERWASHER
-
3310-91772M BOLTBOLT
-
3454-96348M CLAMPCLAMP
-
3513-82212M WASHERWASHER
