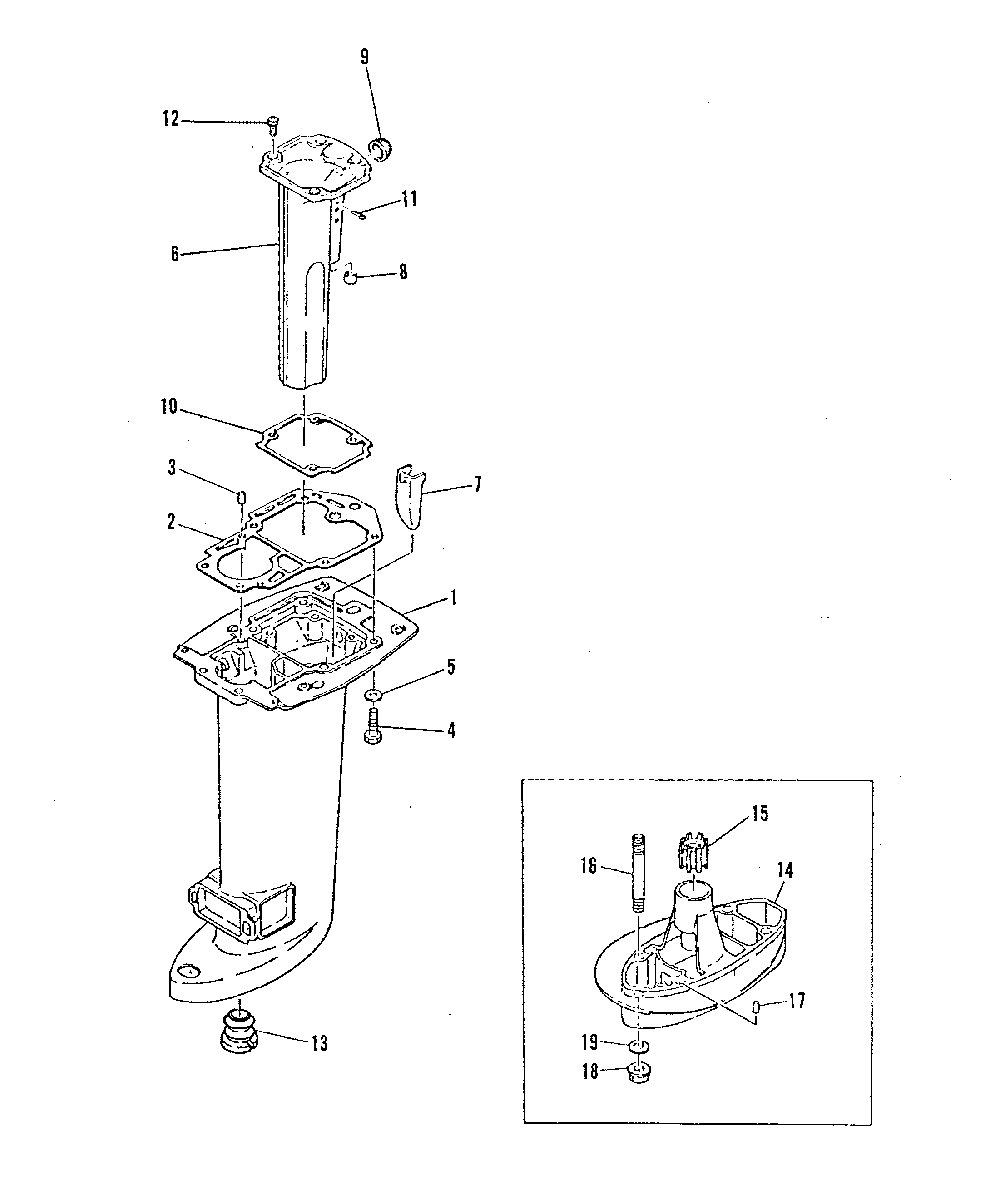

DRIVESHAFT HOUSING для Mariner - 25C (THRU PROP. EXHAUST) 695-555960 AND UP
-
№АртикулНазвание
-
11587-9244M DRIVESHAFT HOUSING (SHORT SHAFT)DRIVESHAFT HOUSING (SHORT SHAFT)
-
11587-7843M DRIVESHAFT HOUSING (LONG AND ULTRA LONG SHAFT)DRIVESHAFT HOUSING (LONG AND ULTRA LONG SHAFT)
-
227-84775 GASKETGASKET
-
317-82364M PIN, DOWELPIN, DOWEL
-
410-95416M BOLTBOLT
-
512-82217M WASHERWASHER
-
683306M MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
784776M EXHAUST GUIDE (SHORT SHAFT)EXHAUST GUIDE (SHORT SHAFT)
-
784777M EXHAUST GUIDE (LONG AND ULTRA LONG SHAFT)EXHAUST GUIDE (LONG AND ULTRA LONG SHAFT)
-
826-81574M GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
926-81572M GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
1027-826991M GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
1118-82132M PIN, COTTERPIN, COTTER
-
1210-83870M SCREWSCREW
-
1326-43114M SEALSEAL
-
1484783M EXTENSION (ULTRA LONG SHAFT)
EXTENSION MAY BE ADDED TO LONG SHAFT ONLY OPTIONAL PARTSEXTENSION (ULTRA LONG SHAFT)
EXTENSION MAY BE ADDED TO LONG SHAFT ONLY OPTIONAL PARTS -
1523-84784M BUSHING
OPTIONAL PARTSBUSHING
OPTIONAL PARTS -
1616-84785M STUD
OPTIONAL PARTSSTUD
OPTIONAL PARTS -
1717-82364M PIN, DOWEL
OPTIONAL PARTSPIN, DOWEL
OPTIONAL PARTS -
1811-84786M NUT
OPTIONAL PARTSNUT
OPTIONAL PARTS -
1912-82220M WASHER
OPTIONAL PARTSWASHER
OPTIONAL PARTS
Все узлы модели:
- C.D.I. MAGNETO
- CARBURETOR
- CLAMP AND SWIVEL BRACKET/REVERSE LOCK
- COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- • DRIVESHAFT HOUSING
- ELECTRIC START COMPONENTS
- ELECTRIC STARTER MOTOR
- FUEL LINES AND FILTER
- FUEL PUMP
- FUEL TANK - REPLACEMENT OR ADDITIONAL
- FUEL TANK AND FUEL LINE ASSEMBLY
- GEAR SHIFT LINKAGE
- GEARHOUSING ASSEMBLY
- INTAKE MANIFOLD
- MOUNTING SYSTEM
- OPTIONAL PARTS
- PROP CHART
- RECOIL STARTER
- REMOTE CONTROL ATTACHING KIT
- STEERING HANDLE
- THROTTLE CONTROL
