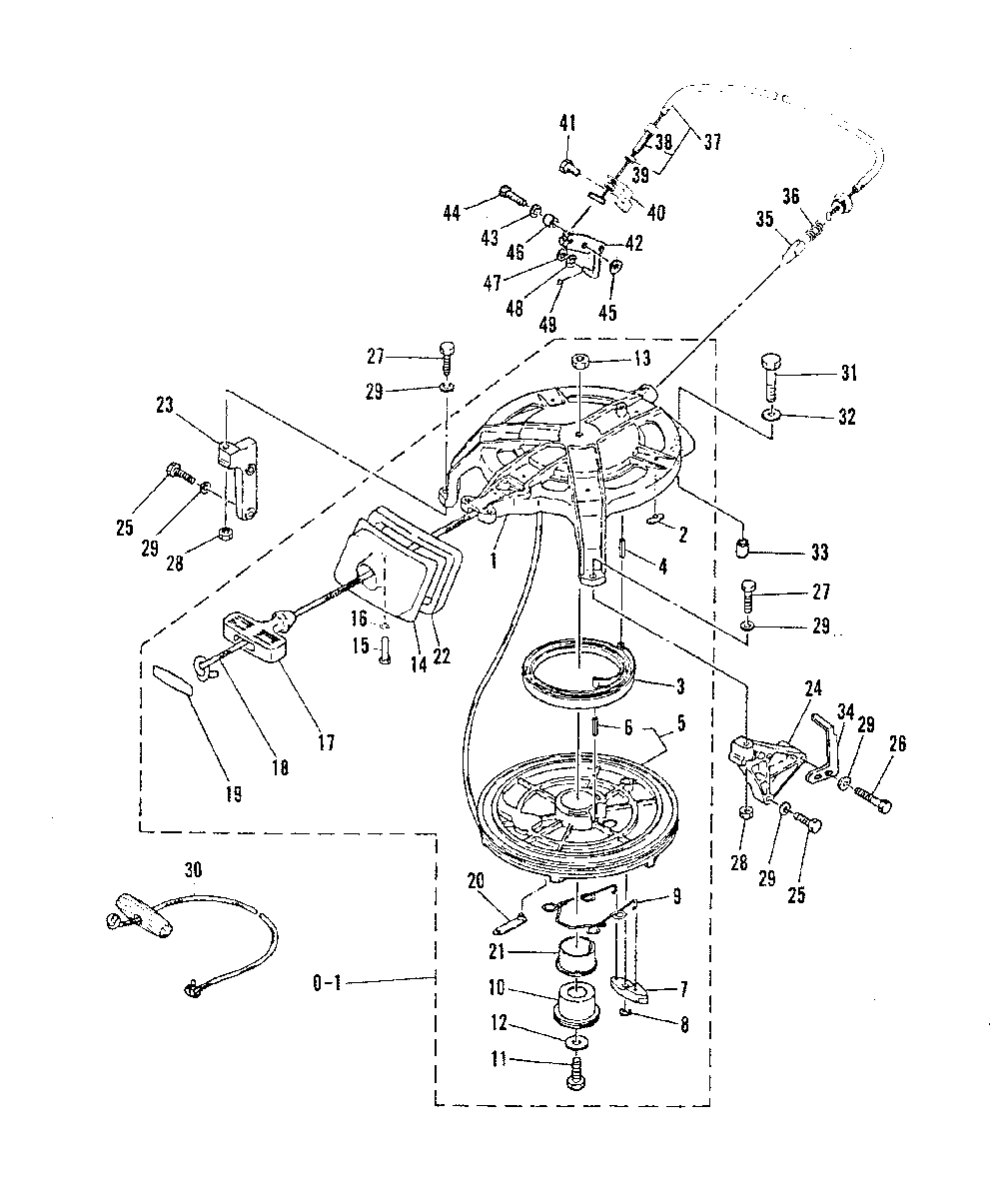

RECOIL STARTER для Mariner - 25C (THRU PROP. EXHAUST) 695-555960 AND UP
-
№АртикулНазвание
-
0-150-18967M STARTER ASS'Y
SERIAL 00031675-09999999STARTER ASS'Y
SERIAL 00031675-09999999 -
0-150-92597M STARTER ASS'Y
SERIAL 00000000-00031674STARTER ASS'Y
SERIAL 00000000-00031674 -
12169-811912M HOUSING, STARTERHOUSING, STARTER
-
223-83585M PLUG, STARTER HOUSINGPLUG, STARTER HOUSING
-
324-83588M SPRING, STARTERSPRING, STARTER
-
417-82157M PINPIN
-
550-83587M STARTER SHEAVESTARTER SHEAVE
-
617-82157M PIN, ROLLPIN, ROLL
-
784894M PAWL, STARTERPAWL, STARTER
-
853-84895M SNAP RINGSNAP RING
-
924-83591M SPRING, PAWLSPRING, PAWL
-
1023-83590M SHAFT, SHEAVESHAFT, SHEAVE
-
1110-84342M BOLTBOLT
-
1212-81801M WASHERWASHER
-
1311-82382M NUTNUT
-
1480600M GUIDE, STARTER ROPEGUIDE, STARTER ROPE
-
1510-826957M BOLTBOLT
-
1612-82214M WASHERWASHER
-
17814491A1 HANDLE, STARTER
SERIAL 00000000-09999999HANDLE, STARTER
SERIAL 00000000-09999999 -
17814491A1 HANDLE, STARTER
SERIAL 00031674-09999999HANDLE, STARTER
SERIAL 00031674-09999999 -
1850-12066Q10 STARTER ROPESTARTER ROPE
-
1918929M COVER
SERIAL 00000000-09999999COVER
SERIAL 00000000-09999999 -
19814491A1 COVER
SERIAL 00031674-09999999COVER
SERIAL 00031674-09999999 -
2054-84893M CLIPCLIP
-
2123-83589M BUSHINGBUSHING
-
2293107M SEALSEAL
-
23811135M BRACKET, STARTER HOUSING (STARBOARD)
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999BRACKET, STARTER HOUSING (STARBOARD)
(EL-556544 EUL-650246) AND ABOVE SERIAL 00026732-09999999 -
2384465M BRACKET, STARTER HOUSING (STARBOARD)
(EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731BRACKET, STARTER HOUSING (STARBOARD)
(EL-556543 EUL-650245) AND BELOW SERIAL 00000000-00026731 -
2484466M BRACKET, STARTER HOUSING (PORT - MANUAL)BRACKET, STARTER HOUSING (PORT - MANUAL)
-
2510-82405M BOLTBOLT
-
2610-84657M BOLTBOLT
-
2710-83285M BOLTBOLT
-
2811-82389M NUTNUT
-
2912-82214M WASHERWASHER
-
3047341A11 EMERGENCY STARTER ROPEEMERGENCY STARTER ROPE
-
3110-82442M BOLTBOLT
-
3212-82217M WASHERWASHER
-
3317-14229M PIN, DOWELPIN, DOWEL
-
3496341M PLATE, TIMINGPLATE, TIMING
-
3581106M PLUNGER, STARTER LOCKOUTPLUNGER, STARTER LOCKOUT
-
3624-82079M SPRING, STARTER LOCKOUTSPRING, STARTER LOCKOUT
-
3781108M CABLE, STARTER LOCKOUTCABLE, STARTER LOCKOUT
-
3810-81746M BOLTBOLT
-
3911-82389M NUTNUT
-
4092599M BRACKET, STARTER LOCKOUT (MANUAL)BRACKET, STARTER LOCKOUT (MANUAL)
-
4110-84088M BOLTBOLT
-
4281107M LINK, STARTER STOP
FOR ELECTRIC MODELS ONLYLINK, STARTER STOP
FOR ELECTRIC MODELS ONLY -
4313-81867M WASHER, WAVE
FOR ELECTRIC MODELS ONLYWASHER, WAVE
FOR ELECTRIC MODELS ONLY -
4410-84058M BOLT
FOR ELECTRIC MODELS ONLYBOLT
FOR ELECTRIC MODELS ONLY -
4512-82214M WASHER
FOR ELECTRIC MODELS ONLYWASHER
FOR ELECTRIC MODELS ONLY -
4623-82929M COLLAR
FOR ELECTRIC MODELS ONLYCOLLAR
FOR ELECTRIC MODELS ONLY -
4712-82211M WASHER
FOR ELECTRIC MODELS ONLYWASHER
FOR ELECTRIC MODELS ONLY -
4813-81865M WASHER, WAVE
FOR ELECTRIC MODELS ONLYWASHER, WAVE
FOR ELECTRIC MODELS ONLY -
4918-82125M PIN, COTTER
FOR ELECTRIC MODELS ONLYPIN, COTTER
FOR ELECTRIC MODELS ONLY
