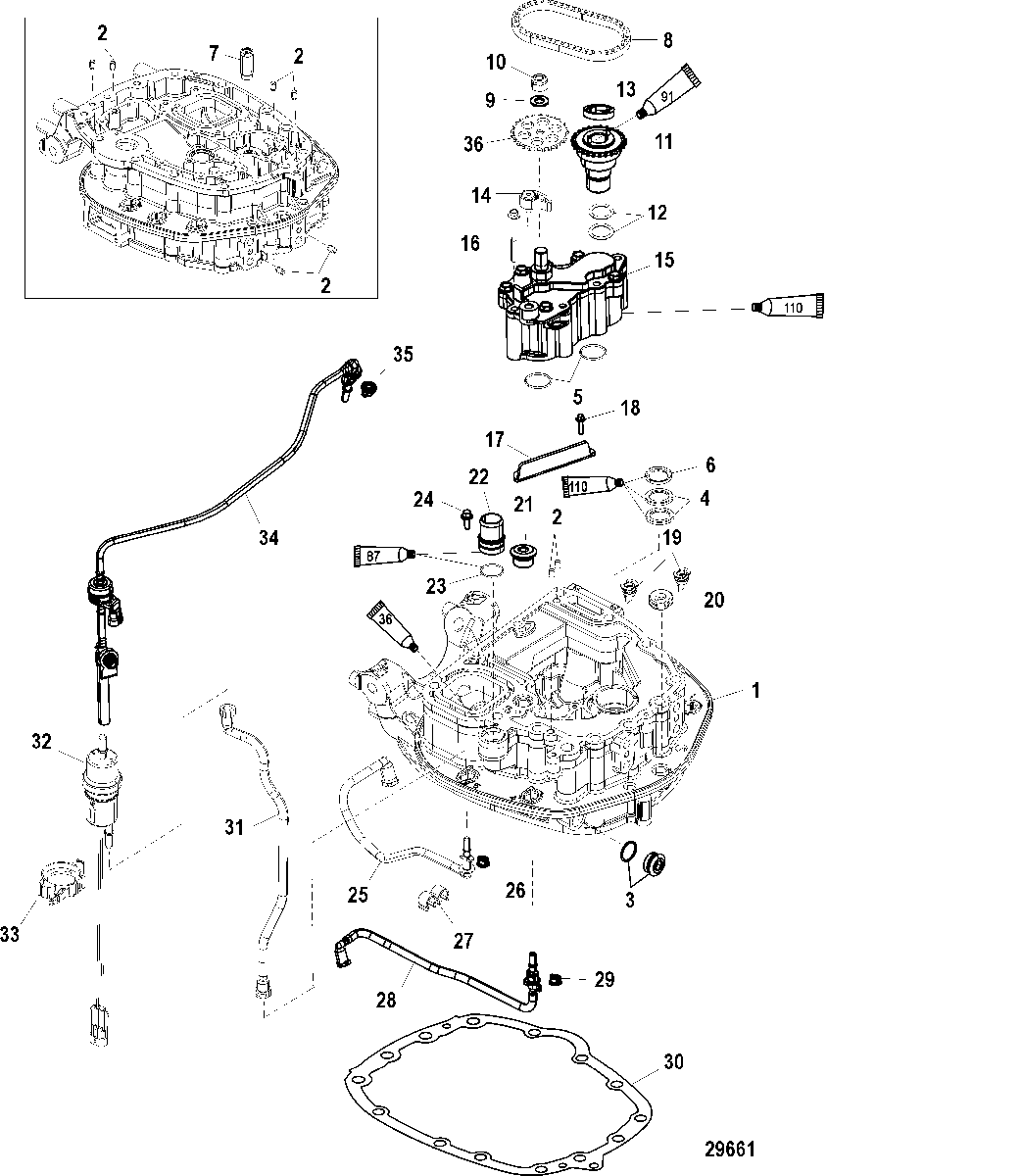

Oil Pump/Adaptor Plate-Upper для Mariner - 275 VERADO (4-STROKE)(6 CYL.) 0P520553 THRU 2B144122
-
№АртикулНазвание
-
1892126A03 ADAPTOR PLATE KITADAPTOR PLATE KIT
-
217-892228 PIN, DowelPIN, Dowel
-
319-896951 PLUG, (24 mm)PLUG, (24 mm)
-
426-884462 SEAL, WaterSEAL, Water
-
525-887930 O-RINGO-RING
-
626-8M0033928 SEAL, OilSEAL, Oil
-
721-8M0034048 VALVE ASSEMBLY, Oil PumpVALVE ASSEMBLY, Oil Pump
-
88M6002692 CHAIN, Oil Pump DriveCHAIN, Oil Pump Drive
-
912-892491 WASHERWASHER
-
1011-892165 NUTNUT
-
11884458T07 DRIVESHAFT, Oil PumpDRIVESHAFT, Oil Pump
-
1225-8M0034912 O-RINGO-RING
-
13895063001 INSERT, PlasticINSERT, Plastic
-
14884418A1 TENSIONER ASSEMBLY, Oil Pump DriveTENSIONER ASSEMBLY, Oil Pump Drive
-
15884446T04 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
1610-892455065 SCREWSCREW
-
17892335001 DEFLECTOR, OilDEFLECTOR, Oil
-
1810-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
19888819002 DRAIN, CowlDRAIN, Cowl
-
2025-888163 GROMMETGROMMET
-
2119-8M0027347 PLUG, (M18 x 1.5)PLUG, (M18 x 1.5)
-
2222-8M0092321 FITTING, DumpFITTING, Dump
-
2325-8M0092943 O-RING, (1.239 x .070)O-RING, (1.239 x .070)
-
2410-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
2532-8M0087108 HOSE, Vent-LowerHOSE, Vent-Lower
-
2625-884546 GROMMETGROMMET
-
27888523001 CLIPCLIP
-
2832-8M0087118 HOSE, Fuel into Fuel Supply Module
SN# 1B792493 & BelowHOSE, Fuel into Fuel Supply Module
SN# 1B792493 & Below -
2832-8M0087118 HOSE, Fuel into Fuel Supply Module
SN# 1B792494 & UpHOSE, Fuel into Fuel Supply Module
SN# 1B792494 & Up -
2925-884546 GROMMETGROMMET
-
3027-889617001 GASKETGASKET
-
3132-8M0087121 HOSE, Fuel-VentHOSE, Fuel-Vent
-
32884545T01 VENT CANISTER ASSEMBLYVENT CANISTER ASSEMBLY
-
3354-853947 CLIPCLIP
-
348M0126303 VALVE ASSEMBLY, Fuel Line PurgeVALVE ASSEMBLY, Fuel Line Purge
-
3525-884546 GROMMETGROMMET
-
36884456 SPROCKET, DrivenSPROCKET, Driven
-
-27-880552A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-895247A07 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
