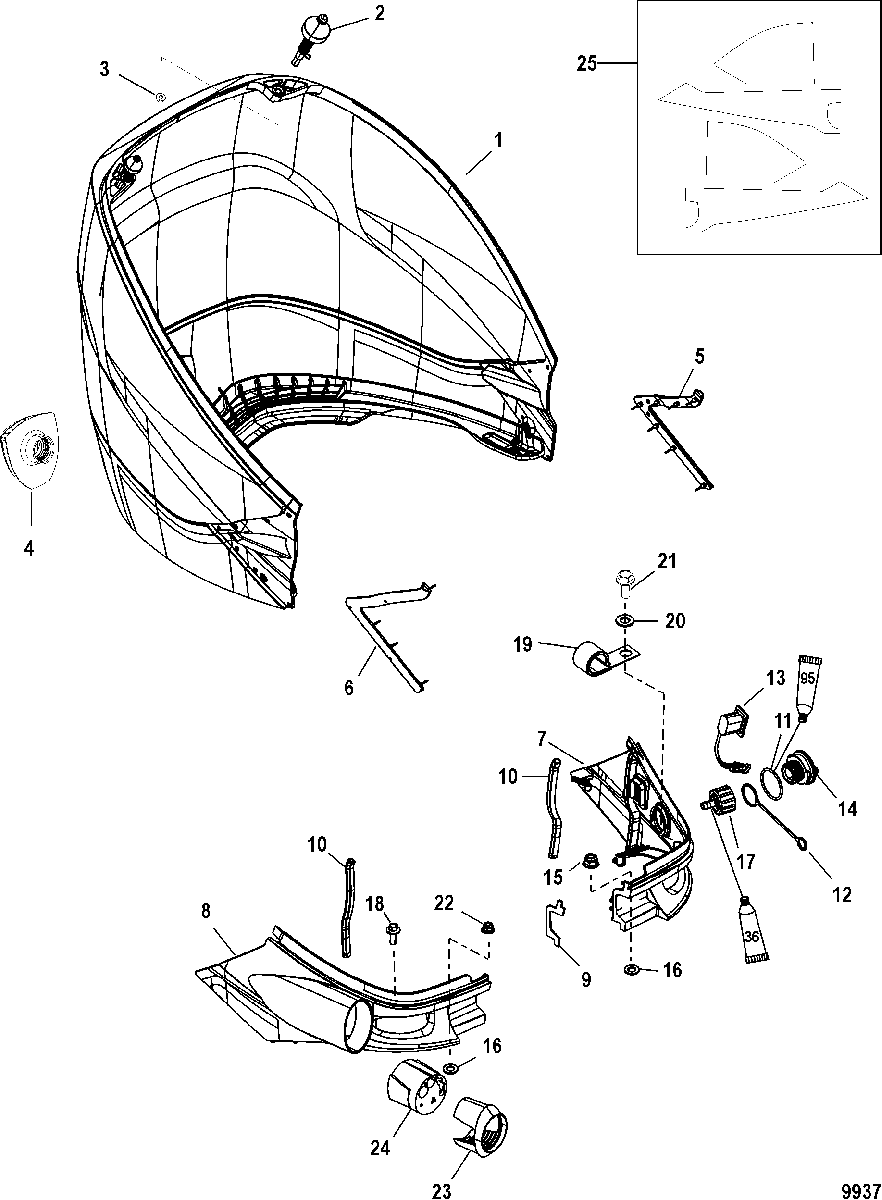

Rear Cowl для Mariner - 275 VERADO (4-STROKE)(6 CYL.) 0P520553 THRU 2B144122
-
№АртикулНазвание
-
1100-8M0100175 COWL ASSEMBLY, Rear, Black (WITHOUT DECALS)COWL ASSEMBLY, Rear, Black (WITHOUT DECALS)
-
1100-8M0100176 COWL ASSEMBLY, Rear, Cool WhiteCOWL ASSEMBLY, Rear, Cool White
-
1100-8M0100177 COWL ASSEMBLY, Rear, Warm WhiteCOWL ASSEMBLY, Rear, Warm White
-
217-888961A01 PIN ASSEMBLYPIN ASSEMBLY
-
311-892233 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
4885360 IDLE RELIEFIDLE RELIEF
-
5893343001 SEAL, PortSEAL, Port
-
6893344001 SEAL, StarboardSEAL, Starboard
-
-100-8M0100172 FRONT COWL KIT, Port and Starboard, BlackFRONT COWL KIT, Port and Starboard, Black
-
-100-8M0100173 FRONT COWL KIT, Port and Starboard, Cool WhiteFRONT COWL KIT, Port and Starboard, Cool White
-
-100-8M0100174 FRONT COWL KIT, Port and Starboard, Warm WhiteFRONT COWL KIT, Port and Starboard, Warm White
-
7NSS NOT SOLD SEPARATE, FRONT COWL, Port, Order Front CowlNOT SOLD SEPARATE, FRONT COWL, Port, Order Front Cowl
-
8NSS NOT SOLD SEPARATE, FRONT COWL, Stbd, Order Front CowlNOT SOLD SEPARATE, FRONT COWL, Stbd, Order Front Cowl
-
927-892315 GASKETGASKET
-
108M0043266 SEALSEAL
-
1125-888957 O-RINGO-RING
-
12889823001 TETHERTETHER
-
1387-8M0042300 SWITCH, TrimSWITCH, Trim
-
1422-888958001 PLUG, FlushPLUG, Flush
-
1511-892233 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1612-4002316 WASHERWASHER
-
1722-885361A01 FITTING ASSEMBLY, FlushFITTING ASSEMBLY, Flush
-
1810-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1954-858951A01 CLAMP KITCLAMP KIT
-
2012-4002316 WASHERWASHER
-
2110-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2211-892233 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
238M0043519 ADAPTORADAPTOR
-
2425-897169 GROMMETGROMMET
-
258M4501634 SOUND BLANKET KIT, Component of 885358T04SOUND BLANKET KIT, Component of 885358T04
-
-37-8M0075217 DECAL, Joystick PilotingDECAL, Joystick Piloting
