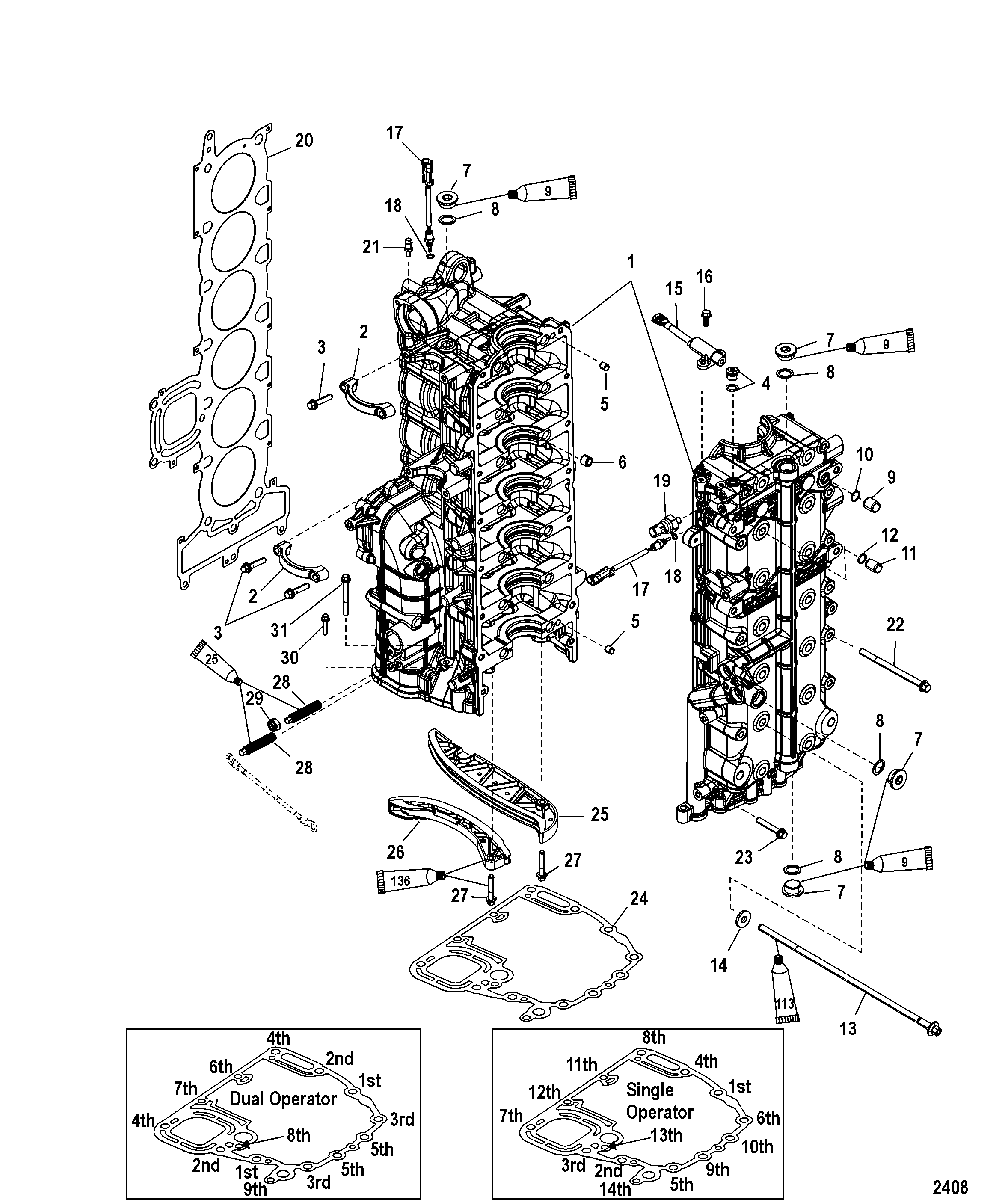

Cylinder Block для Mariner - 275 VERADO (4-STROKE)(6 CYL.) 0T980000 THRU 1B226999
-
№АртикулНазвание
-
1800-880506A11 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
28M0111325 BRACKET, Mounting-Starter MotorBRACKET, Mounting-Starter Motor
-
310-8M0103815 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
419-889767 PLUG, (12 mm)PLUG, (12 mm)
-
517-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
623-893392001 DAMPERDAMPER
-
719-881855001 PLUGPLUG
-
812-881856001 WASHERWASHER
-
917-880524 PIN, Dowel (14 mm)PIN, Dowel (14 mm)
-
1025-884409 O-RINGO-RING
-
1117-884424 PIN, Dowel (11 mm)PIN, Dowel (11 mm)
-
1225-884423 O-RINGO-RING
-
1310-8M4501000 SCREW, (M10 x 342)SCREW, (M10 x 342)
-
1412-892573001 WASHERWASHER
-
158M0082988 SENSORSENSOR
-
1610-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
17885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1825-896699 O-RING, (.351 x .072)O-RING, (.351 x .072)
-
198M6000634 SENSOR, Oil PressureSENSOR, Oil Pressure
-
2027-8M0033476 GASKET, HeadGASKET, Head
-
2117-888517 PINPIN
-
2210-895810115 SCREW, (M8 x 115)SCREW, (M8 x 115)
-
2310-895810050 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
2427-880624003 GASKET, Block to AdaptorGASKET, Block to Adaptor
-
25880559 GUIDE, FixedGUIDE, Fixed
-
26880557 GUIDE, MoveableGUIDE, Moveable
-
2710-892456045 SCREWSCREW
-
2816-8M0022160 STUDSTUD
-
2911-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
3010-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
3110-8M0103818 SCREW, (M8 x 75)SCREW, (M8 x 75)
-
-27-880552A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-895247R06 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
