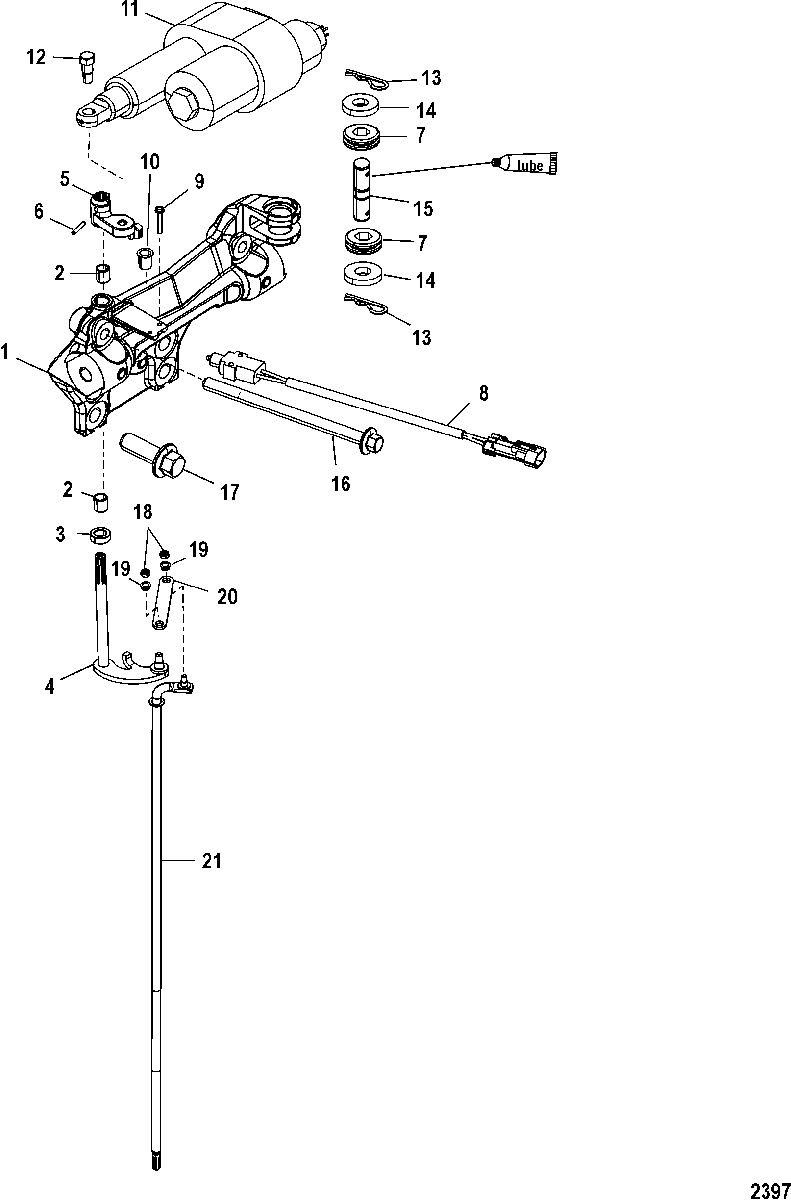

Upper Shift Components для Mariner - 275 VERADO (4-STROKE)(6 CYL.) 0T980000 THRU 1B226999
-
№АртикулНазвание
-
-8M0103311 BRACKET ASSEMBLY, Front MountBRACKET ASSEMBLY, Front Mount
-
1NSS NOT SOLD SEPARATE, BracketNOT SOLD SEPARATE, Bracket
-
223-892417 BUSHINGBUSHING
-
323-8M0047763 SPACERSPACER
-
48M0047949 SHIFT SHAFTSHIFT SHAFT
-
5889727001 BELL CRANKBELL CRANK
-
617-25319 PIN, (.125 x 0.75 Inches)PIN, (.125 x 0.75 Inches)
-
725-833155 GROMMETGROMMET
-
887-8M0052939 SWITCHSWITCH
-
910-88075020 SCREW, (M3 x 20)SCREW, (M3 x 20)
-
1023-85999 BUSHINGBUSHING
-
118M0124413 SHIFT ACTUATORSHIFT ACTUATOR
-
1210-8855091 SCREWSCREW
-
1318-885512 COTTER PINCOTTER PIN
-
1412-885511003 WASHERWASHER
-
1517-895770 Pin, PivotPin, Pivot
-
1610-895811155 SCREW, (M10 x 155)SCREW, (M10 x 155)
-
1710-8M0103802 SCREW, (M14)SCREW, (M14)
-
1811-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1923-97896 BUSHINGBUSHING
-
20885505 LINKLINK
-
218M0048178 SHAFT, Shift (Long)
(Long)SHAFT, Shift (Long)
(Long) -
218M0048179 SHIFT SHAFT, (X-Long)
(X-Long)SHIFT SHAFT, (X-Long)
(X-Long) -
218M0048180 SHIFT SHAFT, (XX-Long)
(XX-Long)SHIFT SHAFT, (XX-Long)
(XX-Long)
