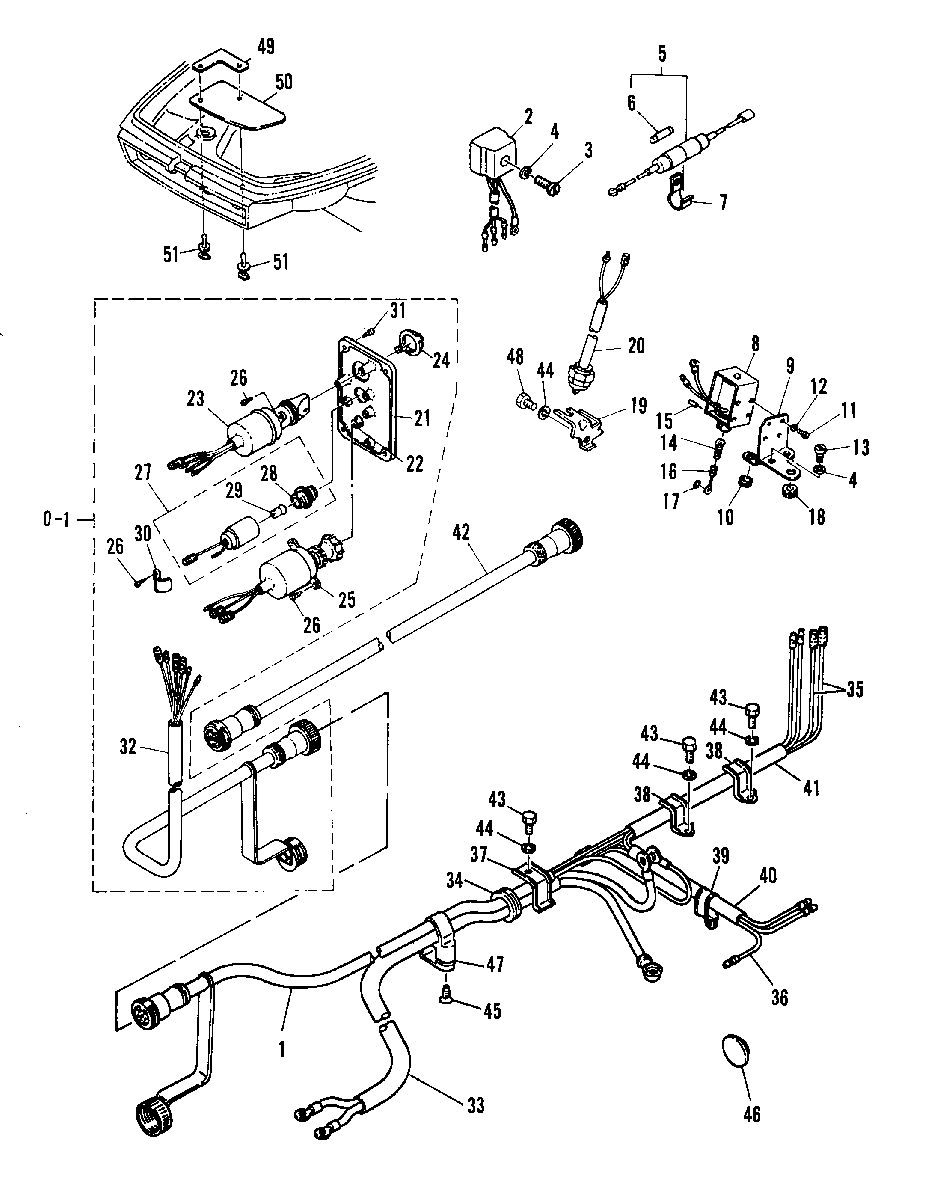

ELECTRIC START COMPONENTS для Mariner - 28 664-25801 AND UP
-
№АртикулНазвание
-
184-81664M WIRE HARNESS ASS'Y, ENGINEWIRE HARNESS ASS'Y, ENGINE
-
28M0091976 RECTIFIERRECTIFIER
-
310-83108M SCREWSCREW
-
413-82186M WASHER, LOCKWASHER, LOCK
-
588-81655M FUSE HOLDER ASS'YFUSE HOLDER ASS'Y
-
688-81522M FUSEFUSE
-
754-82036M CLAMP, FUSE HOLDERCLAMP, FUSE HOLDER
-
889-81665M SOLENOID ASS'Y, CHOKESOLENOID ASS'Y, CHOKE
-
981666M BRACKET, SOLENOIDBRACKET, SOLENOID
-
1025-80726M GROMMET, SOLENOID BRACKETGROMMET, SOLENOID BRACKET
-
1110-813484M SCREWSCREW
-
1310-82491M SCREWSCREW
-
1213-82191M WASHER, LOCKWASHER, LOCK
-
1481553M HOOK, SOLENOID PULL WIREHOOK, SOLENOID PULL WIRE
-
1517-82145M PINPIN
-
1624-81667M WIRE, SOLENOID PULLWIRE, SOLENOID PULL
-
1725-82258M O-RING, PULL WIREO-RING, PULL WIRE
-
1825-82060M GROMMETGROMMET
-
1981110M BRACKET, NEUTRAL START SWITCHBRACKET, NEUTRAL START SWITCH
-
2087-81168M NEUTRAL START SWITCH ASS'YNEUTRAL START SWITCH ASS'Y
-
0-183303M SWITCH PANEL ASS'YSWITCH PANEL ASS'Y
-
2181170M PANEL, SWITCHPANEL, SWITCH
-
2237-83058M DECAL, WITCH PANELDECAL, WITCH PANEL
-
2387-80716M KEY SWITCH ASS'YKEY SWITCH ASS'Y
-
2480721M CAP, SWITCH KEYCAP, SWITCH KEY
-
2587-80715M IGNITION SWITCH ASS'YIGNITION SWITCH ASS'Y
-
2610-84272M SCREWSCREW
-
2780725M CHOKE LAMP ASS'YCHOKE LAMP ASS'Y
-
2880724M LENS, CHOKE LAMPLENS, CHOKE LAMP
-
2988-80007M B, CHOKE LAMP (12V-3W)B, CHOKE LAMP (12V-3W)
-
3054-80722M CLAMP, WIRE HARNESSCLAMP, WIRE HARNESS
-
3110-80719M SCREWSCREW
-
3284-80720M WIRE HARNESS ASS'Y, SWITCH PANELWIRE HARNESS ASS'Y, SWITCH PANEL
-
3384-81654M LEAD WIRE ASS'Y, CHOKE SOLENOIDLEAD WIRE ASS'Y, CHOKE SOLENOID
-
3425-81590M GROMMET, LEAD WIREGROMMET, LEAD WIRE
-
3584-81660M WIRE, LEADWIRE, LEAD
-
3684-81661M WIRE, LEADWIRE, LEAD
-
3782044M CLAMPCLAMP
-
3854-82035M CLAMPCLAMP
-
3954-96348M CLAMPCLAMP
-
4032-82032M HOSE, WIRE HARNESSHOSE, WIRE HARNESS
-
4132-82031M HOSE, WIRE HARNESSHOSE, WIRE HARNESS
-
4284-81171M EXTENSION, WIRE HARN 2.9M (9.5 FT, OPT)EXTENSION, WIRE HARN 2.9M (9.5 FT, OPT)
-
4310-84211M BOLTBOLT
-
4413-82212M WASHER, LOCKWASHER, LOCK
-
4510-81759M TAP SCREWTAP SCREW
-
4682066M GROMMET, BOTTOM COWLGROMMET, BOTTOM COWL
-
4782039M CLAMPCLAMP
-
4810-91772M BOLTBOLT
-
4984467M PLATE, FITTING ( ) AND AB
SERIAL 00154806-09999999PLATE, FITTING ( ) AND AB
SERIAL 00154806-09999999 -
5084468M PLATE
SERIAL 00154806-09999999PLATE
SERIAL 00154806-09999999 -
5117-84469M RIVET
SERIAL 00154806-09999999RIVET
SERIAL 00154806-09999999
