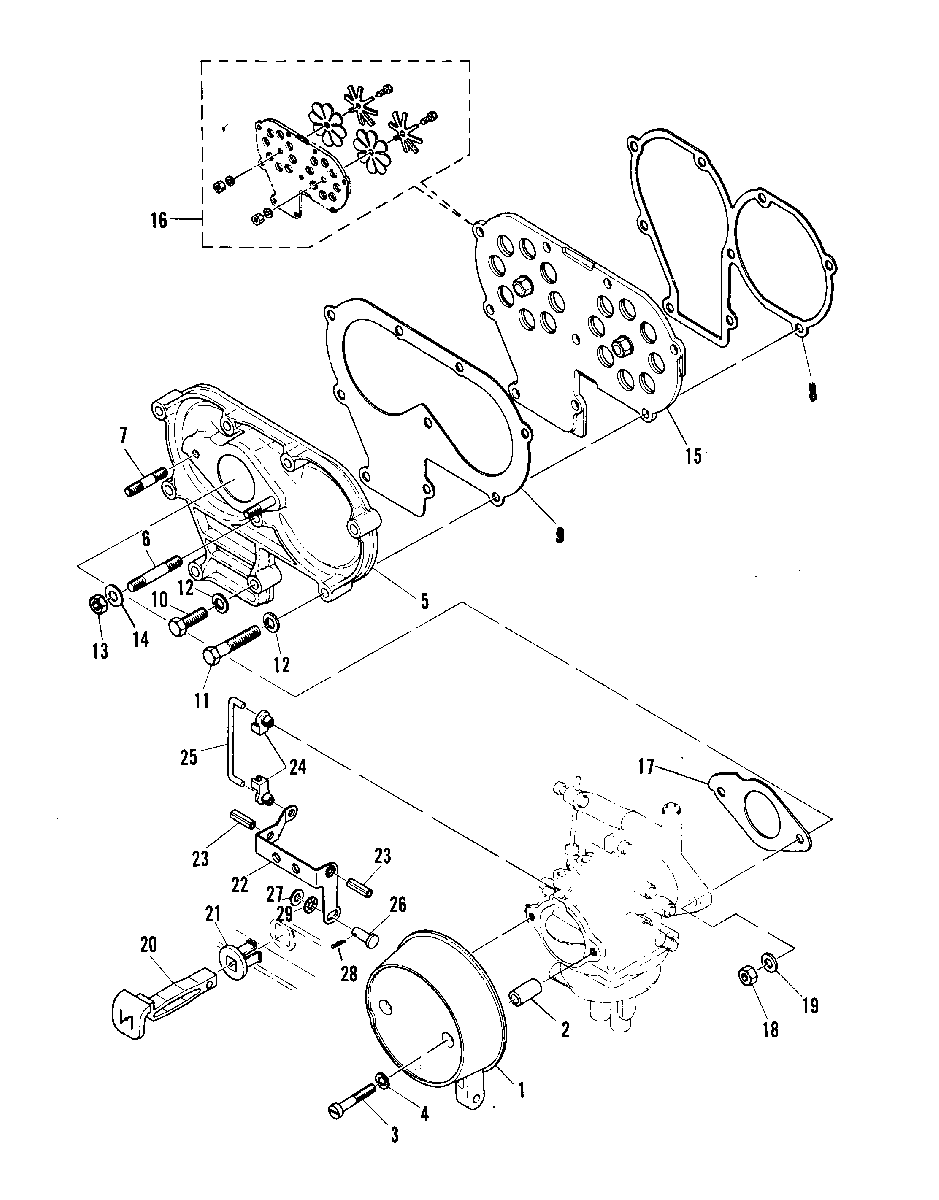

INTAKE MANIFOLD для Mariner - 28 664-25801 AND UP
-
№АртикулНазвание
-
181562M COVER, AIR INITAKECOVER, AIR INITAKE
-
223-81972M SPACER, INTAKE COVER TO BASESPACER, INTAKE COVER TO BASE
-
310-82522M SCREWSCREW
-
412-82195M WASHERWASHER
-
580570002 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
616-81733M STUD, MANIFOLD ATTACHINGSTUD, MANIFOLD ATTACHING
-
716-811028M STUD, CARBURETOR ATTACHINGSTUD, CARBURETOR ATTACHING
-
827-80569M GASKET, REED VALVEGASKET, REED VALVE
-
927-80571M GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
1010-82405M BOLTBOLT
-
1110-83285M BOLT (MANUAL)BOLT (MANUAL)
-
1110-83285M BOLT (ELECTRIC)BOLT (ELECTRIC)
-
1213-82212M WASHER, LOCKWASHER, LOCK
-
1311-82389M NUTNUT
-
1412-82213M WASHERWASHER
-
15811027M REED VALVEREED VALVE
-
1634-84759M REED SETREED SET
-
1727-80572 GASKET, CARBURETOR MANIFOLDGASKET, CARBURETOR MANIFOLD
-
1811-82389M NUTNUT
-
1912-82214M WASHERWASHER
-
2081578M KNOB, CHOKEKNOB, CHOKE
-
2182063M GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
2281576M LEVER, CHOKELEVER, CHOKE
-
2317-82155M PIN, ROLLPIN, ROLL
-
2416333 SWIVEL, LINK RODSWIVEL, LINK ROD
-
2581577M LINK ROD, CHOKE LEVERLINK ROD, CHOKE LEVER
-
2617-81880M PIN, CLEVISPIN, CLEVIS
-
2712-81790M WASHERWASHER
-
2818-82051M PINPIN
-
2913-81865M WASHER, WAVEWASHER, WAVE
Все узлы модели:
- CARBURETOR
- CLAMP AND SWIVEL BRACKET
- COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- ELECTRIC START COMPONENTS
- ELECTRIC STARTER MOTOR
- FLYWHEEL MAGNETO
- FUEL LINES AND FILTER
- FUEL PUMP
- FUEL PUMP
- FUEL TANK-INTERNATIONAL AND USA (ORIGINAL EQUIP) 24 LITRE
- FUEL TANK-INTERNATIONAL ONLY (ORIGINAL EQUIP) 24 LITRE (6.3)
- FUEL TANK-REPLACEMENT OR ADDITIONAL 22.7 LITRE (6.0 GALLONS)
- GEAR SHIFT LINKAGE
- GEAR SHIFT LINKAGE
- • INTAKE MANIFOLD
- MOUNTING SYSTEM
- OPTIONAL PARTS
- RECOIL STARTER
- REMOTE CONTROL ATTACHING KIT
- REVERSE LOCK
- STEERING HANDLE
- THROTTLE CONTROL
