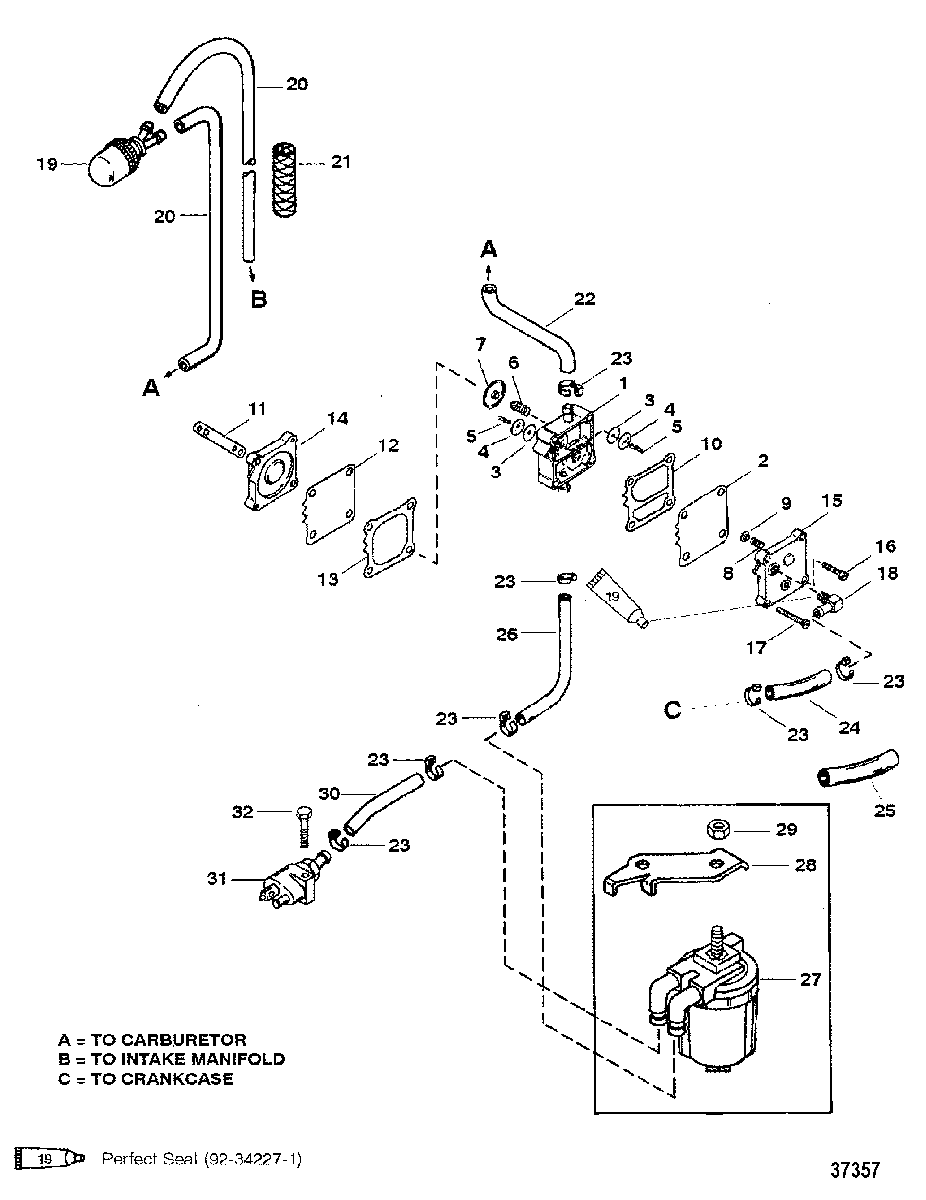

FUEL PUMP(MANUAL) для Mariner - 30 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
114360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-857005A1 DIAPHAGM KITDIAPHAGM KIT
-
3NSS NOT SOLD SEPARATE, RUBBER CHECK VALVENOT SOLD SEPARATE, RUBBER CHECK VALVE
-
4NSS NOT SOLD SEPARATE, CHECK VALVENOT SOLD SEPARATE, CHECK VALVE
-
5NSS NOT SOLD SEPARATE, RETAINERNOT SOLD SEPARATE, RETAINER
-
6NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
7NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
8NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
9NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
10NSS NOT SOLD SEPARATE, GASKET, BoostNOT SOLD SEPARATE, GASKET, Boost
-
1127-987691 GASKETGASKET
-
12NSS NOT SOLD SEPARATE, DIAPHRAGMNOT SOLD SEPARATE, DIAPHRAGM
-
13NSS NOT SOLD SEPARATE, GASKET, PulseNOT SOLD SEPARATE, GASKET, Pulse
-
14144303 BASEBASE
-
15987752 PLATEPLATE
-
1610-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
1710-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1822-433351 CONNECTOR, 90 Degree (.125-27) NylonCONNECTOR, 90 Degree (.125-27) Nylon
-
19858763 PRIMER BULBPRIMER BULB
-
2032-892024122 TUBING, (20.00 Feet Bulk) (Cut to 9-1/2 IN.)TUBING, (20.00 Feet Bulk) (Cut to 9-1/2 IN.)
-
2123-82538115 SLEEVE, (.500 x 5.00)SLEEVE, (.500 x 5.00)
-
2232-830764 HOSEHOSE
-
2354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2432-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 3-1/4 IN.)HOSE, (.187) (26.00 Inches Bulk) (Cut to 3-1/4 IN.)
-
258507051 INSULATORINSULATOR
-
2632-830765 HOSE (MOLDED)HOSE (MOLDED)
-
2735-8M0063726 FILTER ASSEMBLY, FuelFILTER ASSEMBLY, Fuel
-
28822387 BRACKETBRACKET
-
2911-401196 NUT, (M6)NUT, (M6)
-
3032-8M0108349 TUBING, (28.00 Inches Bulk) (Cut to 14-1/4 IN.)TUBING, (28.00 Inches Bulk) (Cut to 14-1/4 IN.)
-
3122-816856T01 CONNECTOR ASSEMBLY, FuelCONNECTOR ASSEMBLY, Fuel
-
3210-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
-27-822420A94 GASKET SETGASKET SET
-
-808569T02 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
