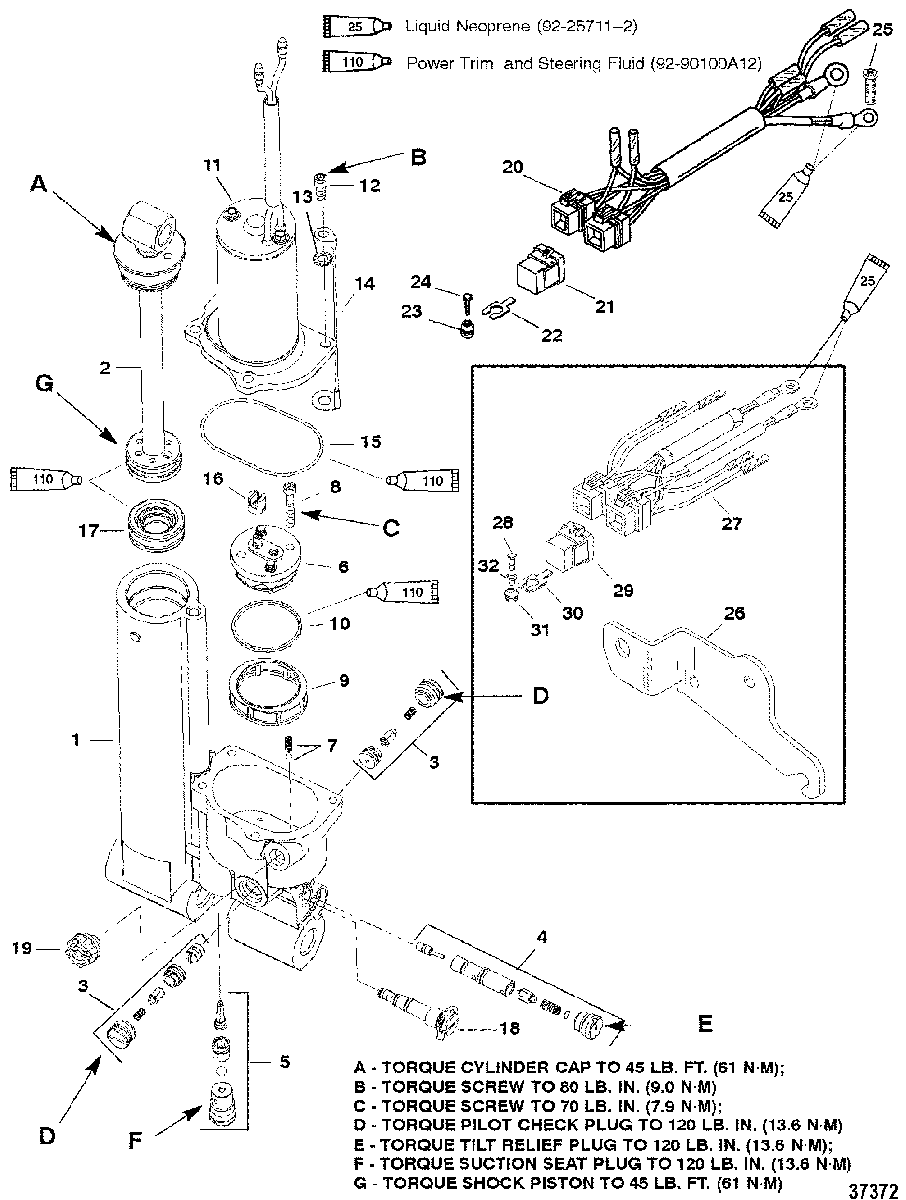

POWER TRIM для Mariner - 30 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
1822344T14 POWER TRIM
SN# USA 0G124404, BEL 9948794 & BelowPOWER TRIM
SN# USA 0G124404, BEL 9948794 & Below -
1822344T14 POWER TRIM
SN# USA 0G124405, BEL 9948795 & UpPOWER TRIM
SN# USA 0G124405, BEL 9948795 & Up -
-25-827668A1 O-RING KITO-RING KIT
-
2893931A01 SHOCK ROD ASSEMBLYSHOCK ROD ASSEMBLY
-
3827671A1 PILOT CHECK ASSEMBLYPILOT CHECK ASSEMBLY
-
4827672A1 TILT RELIEF VALVE ASSEMBLYTILT RELIEF VALVE ASSEMBLY
-
5827673A1 SEAT ASSEMBLY, SuctionSEAT ASSEMBLY, Suction
-
6827674A1 PUMP ASSEMBLYPUMP ASSEMBLY
-
7NSS NOT SOLD SEPARATE, BALL AND SPRINGNOT SOLD SEPARATE, BALL AND SPRING
-
8NSS NOT SOLD SEPARATE, SCREWNOT SOLD SEPARATE, SCREW
-
9NSS NOT SOLD SEPARATE, FILTERNOT SOLD SEPARATE, FILTER
-
10NSS NOT SOLD SEPARATE, O-RINGNOT SOLD SEPARATE, O-RING
-
11827675A1 MOTOR ASSEMBLYMOTOR ASSEMBLY
-
12NSS NOT SOLD SEPARATE, SCREWNOT SOLD SEPARATE, SCREW
-
13NSS NOT SOLD SEPARATE, WASHERNOT SOLD SEPARATE, WASHER
-
1488238A15 CABLE ASSEMBLYCABLE ASSEMBLY
-
15NSS NOT SOLD SEPARATE, O-RINGNOT SOLD SEPARATE, O-RING
-
16NSS NOT SOLD SEPARATE, COUPLERNOT SOLD SEPARATE, COUPLER
-
17827676 PISTON, MemoryPISTON, Memory
-
18893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
1919-811613 PLUG ASSEMBLYPLUG ASSEMBLY
-
-84-819514A57 HARNESS ASSEMBLY, Trim
DESIGN IHARNESS ASSEMBLY, Trim
DESIGN I -
2084-819514A58 HARNESS ASSEMBLY, Trim
DESIGN IHARNESS ASSEMBLY, Trim
DESIGN I -
21821509T01 RELAY
DESIGN IRELAY
DESIGN I -
22882751A1 BRACKET
DESIGN IBRACKET
DESIGN I -
2325-818967 GROMMET
DESIGN IGROMMET
DESIGN I -
2410-40011129 SCREW, (M6 x 25) Stainless Steel
DESIGN ISCREW, (M6 x 25) Stainless Steel
DESIGN I -
2510-878609 SCREW, (#10-16 x .600) (SELF-TAP)
DESIGN ISCREW, (#10-16 x .600) (SELF-TAP)
DESIGN I -
26830238T BRACKET
DESIGN IIBRACKET
DESIGN II -
2784-826802A9 HARNESS ASSEMBLY, Trim
DESIGN IIHARNESS ASSEMBLY, Trim
DESIGN II -
2810-82129125 SCREW, (M6 x 25 MM)
DESIGN IISCREW, (M6 x 25 MM)
DESIGN II -
29882751A1 RELAY ASSEMBLY
DESIGN IIRELAY ASSEMBLY
DESIGN II -
30828102 BRACKET
DESIGN IIBRACKET
DESIGN II -
3125-818967 GROMMET
DESIGN IIGROMMET
DESIGN II -
3223-818968 BUSHING
DESIGN IIBUSHING
DESIGN II
