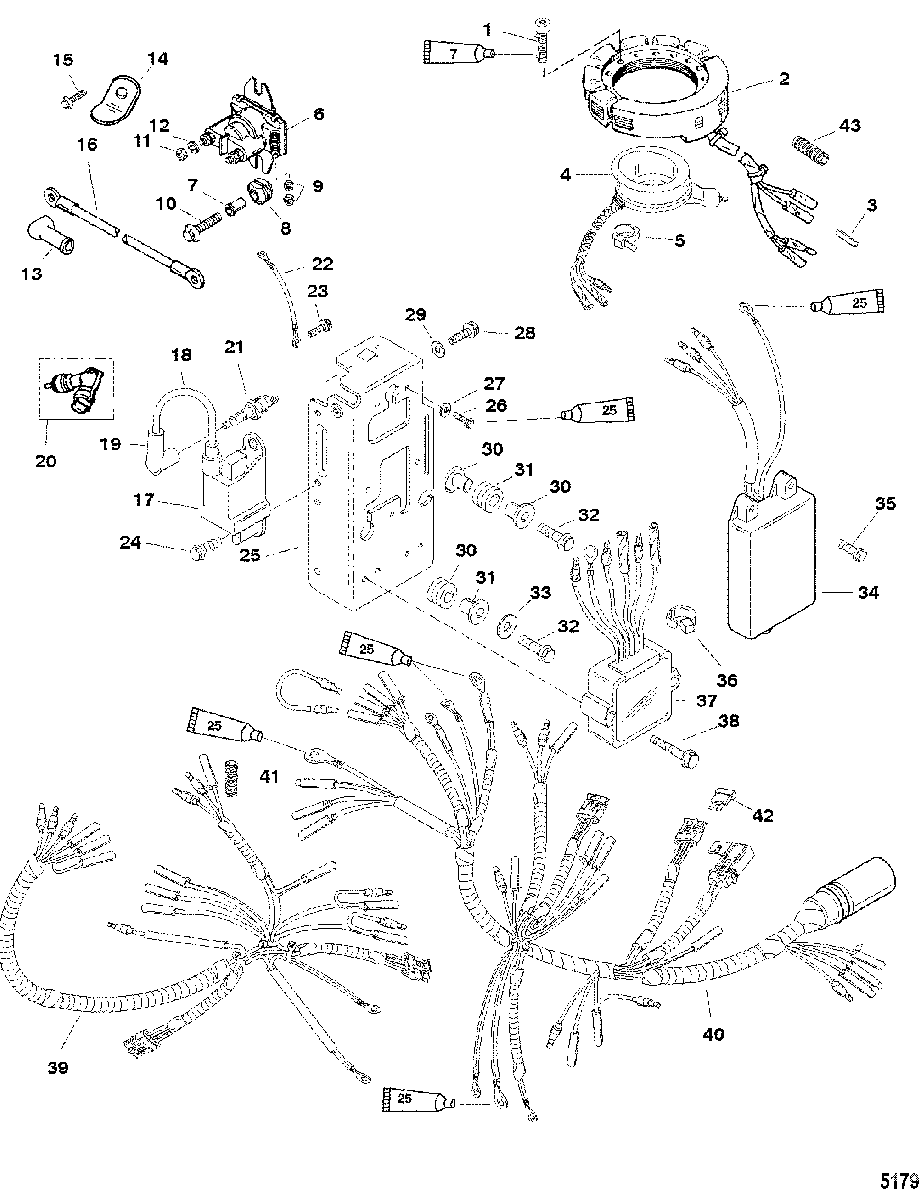

Electrical Components для Mariner - 30 (2 CYL.) 0P325500 & Up

№

Артикул

Название
1

10-4013930 SCREW, (M5 x 30)
(Manual)

SCREW, (M5 x 30)
(Manual)

190 ₽
2

398-832074A11 STATOR ASSEMBLY
(Manual)

STATOR ASSEMBLY
(Manual)

40 300 ₽
-

84-11149A26 CABLE ASSEMBLY, (2 Female Ends)

CABLE ASSEMBLY, (2 Female Ends)

6 720 ₽
-

84-11149A25 CABLE ASSEMBLY, (1 Male/1 Female)

CABLE ASSEMBLY, (1 Male/1 Female)

6 470 ₽
3

13541 PLUG, Male
(Manual)

PLUG, Male
(Manual)

230 ₽
4

853960T TRIGGER
(Manual)

TRIGGER
(Manual)

13 980 ₽
5

56762 TIE STRAP, (4.00 Inches)

TIE STRAP, (4.00 Inches)

30 ₽
6

89-850187T1 SOLENOID ASSEMBLY
(Electric)

SOLENOID ASSEMBLY
(Electric)

3 730 ₽
7

23-818968 BUSHING
(Electric)

BUSHING
(Electric)

140 ₽
8

25-818967 GROMMET
(Electric)

GROMMET
(Electric)

130 ₽
9

11-26419 NUT, (#8-32) Brass
(Electric)

NUT, (#8-32) Brass
(Electric)

120 ₽
10

10-40011129 SCREW, (M6 x 25) Stainless Steel
(Electric)

SCREW, (M6 x 25) Stainless Steel
(Electric)

280 ₽
11

11-64015 NUT, (.250-20)
(Electric)

NUT, (.250-20)
(Electric)

150 ₽
12

13-26992 LOCKWASHER, (.250) Stainless Steel
(Electric)

LOCKWASHER, (.250) Stainless Steel
(Electric)

70 ₽
13

85-830233 BOOT, Insulator - Red
(Electric)

BOOT, Insulator - Red
(Electric)

320 ₽
14

8275101 RETAINER
(30 Electric Handle)

RETAINER
(30 Electric Handle)

970 ₽
15

10-878609 SCREW, (#10-16 x .600)
(30 Electric Handle)

SCREW, (#10-16 x .600)
(30 Electric Handle)

150 ₽
16

84-88439A4 CABLE ASSEMBLY, Battery - Negative
(Electric)

CABLE ASSEMBLY, Battery - Negative
(Electric)

3 540 ₽
17

827509T7 CDM MODULE ASSEMBLY

CDM MODULE ASSEMBLY

11 910 ₽
18

84-857124A1 CABLE ASSEMBLY, Hi-Tension

CABLE ASSEMBLY, Hi-Tension

1 400 ₽
19

85-857074A1 BOOT/TERMINAL KIT

BOOT/TERMINAL KIT

1 270 ₽
20

85-815119M CAP, Spark Plug
(Noise Suppressor) (Use Where Applicable)

CAP, Spark Plug
(Noise Suppressor) (Use Where Applicable)

4 410 ₽
21

33-816737Q SPARK PLUG
(NGK# BP8H-N-10)

SPARK PLUG
(NGK# BP8H-N-10)

510 ₽
21

33-816837Q SPARK PLUG
(NGK#BPZ-8H-N-10)

SPARK PLUG
(NGK#BPZ-8H-N-10)

1 810 ₽
22

84-88807A44 CABLE ASSEMBLY
(Manual)

CABLE ASSEMBLY
(Manual)

1 140 ₽
23

10-81893412 SCREW, (M8 x 12)
(Manual)

SCREW, (M8 x 12)
(Manual)

180 ₽
24

10-82129116 SCREW, (M6 x 16)

SCREW, (M6 x 16)

150 ₽
25

8302361 PLATE, Electrical

PLATE, Electrical

5 250 ₽
26

10-82239312 SCREW, (M5 x 12)

SCREW, (M5 x 12)

70 ₽
27

12-89302 WASHER, (.203 x .406 x .040)

WASHER, (.203 x .406 x .040)

130 ₽
28

10-82129114 SCREW, (M6 x 14)

SCREW, (M6 x 14)

120 ₽
29

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel

120 ₽
30

23-8318701 BUSHING

BUSHING

230 ₽
31

25-822002 GROMMET

GROMMET

570 ₽
32

10-40011130 SCREW, (M6 x 30) Stainless Steel

SCREW, (M6 x 30) Stainless Steel

150 ₽
33

12-4002316 WASHER

WASHER

50 ₽
34

821889A49 REV LIMITER
(Manual)

REV LIMITER
(Manual)

17 610 ₽
34

821889A50 REV LIMITER
(Electric)

REV LIMITER
(Electric)

14 310 ₽
35

10-82129125 SCREW, (M6 x 25 MM)

SCREW, (M6 x 25 MM)

220 ₽
36

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)

40 ₽
37

8M0084173 REGULATOR, Voltage
(Electric)

REGULATOR, Voltage
(Electric)

28 020 ₽
38

10-82129135 SCREW, (M6 x 35)
(Electric)

SCREW, (M6 x 35)
(Electric)

200 ₽
39

84-854323A2 HARNESS ASSEMBLY, Engine
(Manual)

HARNESS ASSEMBLY, Engine
(Manual)

14 120 ₽
40

84-854322A2 HARNESS ASSEMBLY, Engine
(Electric)

HARNESS ASSEMBLY, Engine
(Electric)

21 770 ₽
41

32-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)

CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)

1 630 ₽
42

88-812619 FUSE, Yellow - 20 Ampere
(Electric)

FUSE, Yellow - 20 Ampere
(Electric)

290 ₽
43

32-828547T CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk)

CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk)

4 120 ₽
-

808569T02 POWERHEAD ASSEMBLY
30 HP

POWERHEAD ASSEMBLY
30 HP

417 950 ₽
-

61-8M0063311 POWERHEAD ASSEMBLY
40 HP

POWERHEAD ASSEMBLY
40 HP

355 390 ₽
