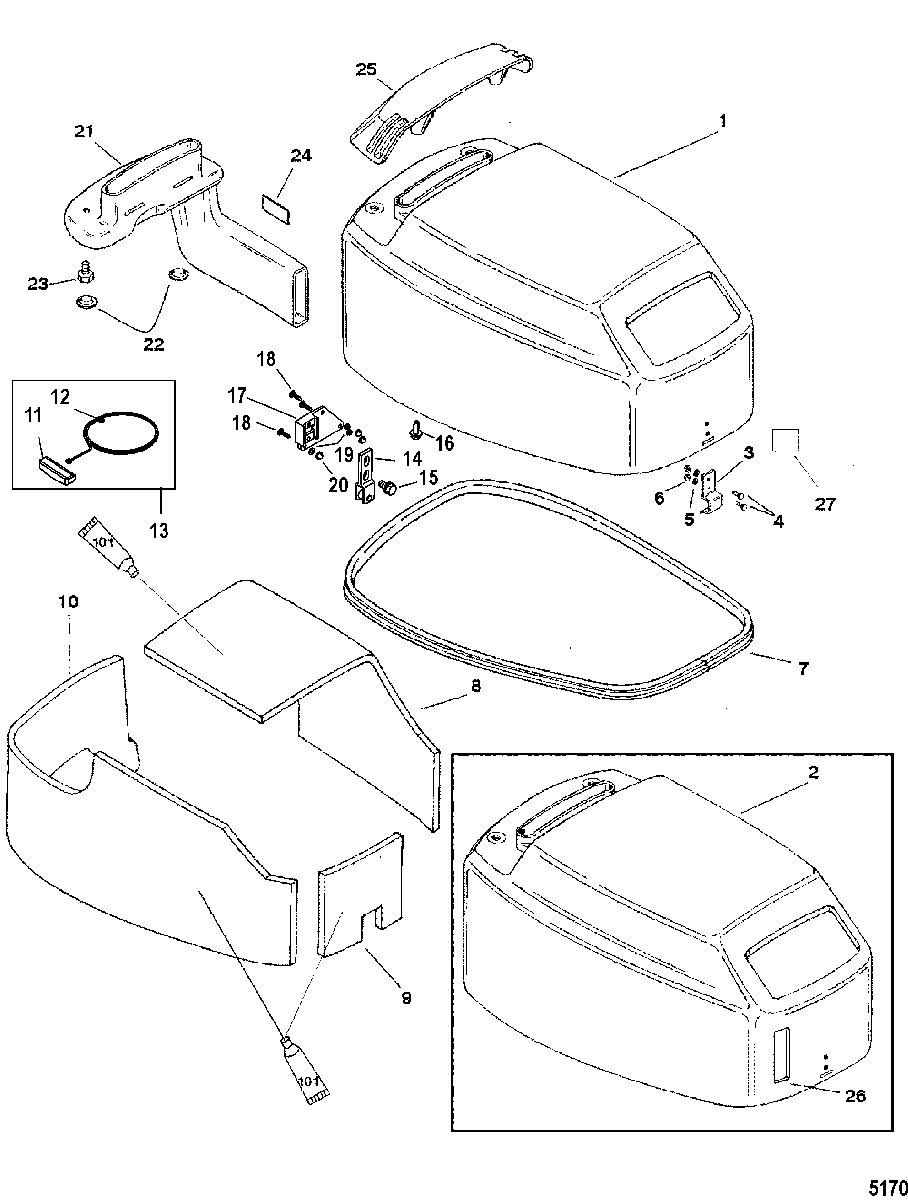

Top Cowl для Mariner - 30 (2 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
14011-821528T5 TOP COWL ASSEMBLY
(Black-Manual)TOP COWL ASSEMBLY
(Black-Manual) -
14011-821528T11 TOP COWL ASSEMBLY
(Silver-Manual)TOP COWL ASSEMBLY
(Silver-Manual) -
24011-821528T7 TOP COWL ASSEMBLY
(Black-Electric)TOP COWL ASSEMBLY
(Black-Electric) -
24011-821528T8 TOP COWL ASSEMBLY
(Silver-Electric)TOP COWL ASSEMBLY
(Silver-Electric) -
3825742F1 LATCH
(Black)LATCH
(Black) -
3825742F1 LATCH
(Silver)LATCH
(Silver) -
410-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
513-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
611-8237515 NUT, (M4)NUT, (M4)
-
78M0043406 SEAL, CowlSEAL, Cowl
-
8821530A02 SOUND BLANKET KIT, (Top/Side)(Hot Glue Adhesive)SOUND BLANKET KIT, (Top/Side)(Hot Glue Adhesive)
-
8821530A02 SOUND BLANKET KIT, (Top/Side)(Pre-Applied Pressure Sensitive Adhesive)SOUND BLANKET KIT, (Top/Side)(Pre-Applied Pressure Sensitive Adhesive)
-
9NSS NOT SOLD SEPARATE, Front Sound BlanketNOT SOLD SEPARATE, Front Sound Blanket
-
10NSS NOT SOLD SEPARATE, Side/Rear Sound BlanketNOT SOLD SEPARATE, Side/Rear Sound Blanket
-
1147341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
-
12NSS NOT SOLD SEPARATE, RopeNOT SOLD SEPARATE, Rope
-
13NSS NOT SOLD SEPARATE, EnvelopeNOT SOLD SEPARATE, Envelope
-
14893763 BRACKET ASSEMBLY, Latch Roller, Roller LatchBRACKET ASSEMBLY, Latch Roller, Roller Latch
-
1510-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1610-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
178M0038412 BRACKETBRACKET
-
1810-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
1913-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
2011-8237515 NUT, (M4)NUT, (M4)
-
21NSS NOT SOLD SEPARATE, Duct-Air InletNOT SOLD SEPARATE, Duct-Air Inlet
-
2219-815784 CAP, PlugCAP, Plug
-
2310-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
24NSS NOT SOLD SEPARATE, Double SidedNOT SOLD SEPARATE, Double Sided
-
25100-8M0053822 SHIELD, Air Inlet
(Black)SHIELD, Air Inlet
(Black) -
25821529T3 SHIELD, Air Inlet
(Silver)SHIELD, Air Inlet
(Silver) -
26NSS NOT SOLD SEPARATE, Window-Oil Sight GaugeNOT SOLD SEPARATE, Window-Oil Sight Gauge
-
2737-82409316 DECAL, F-N-R ShiftDECAL, F-N-R Shift
