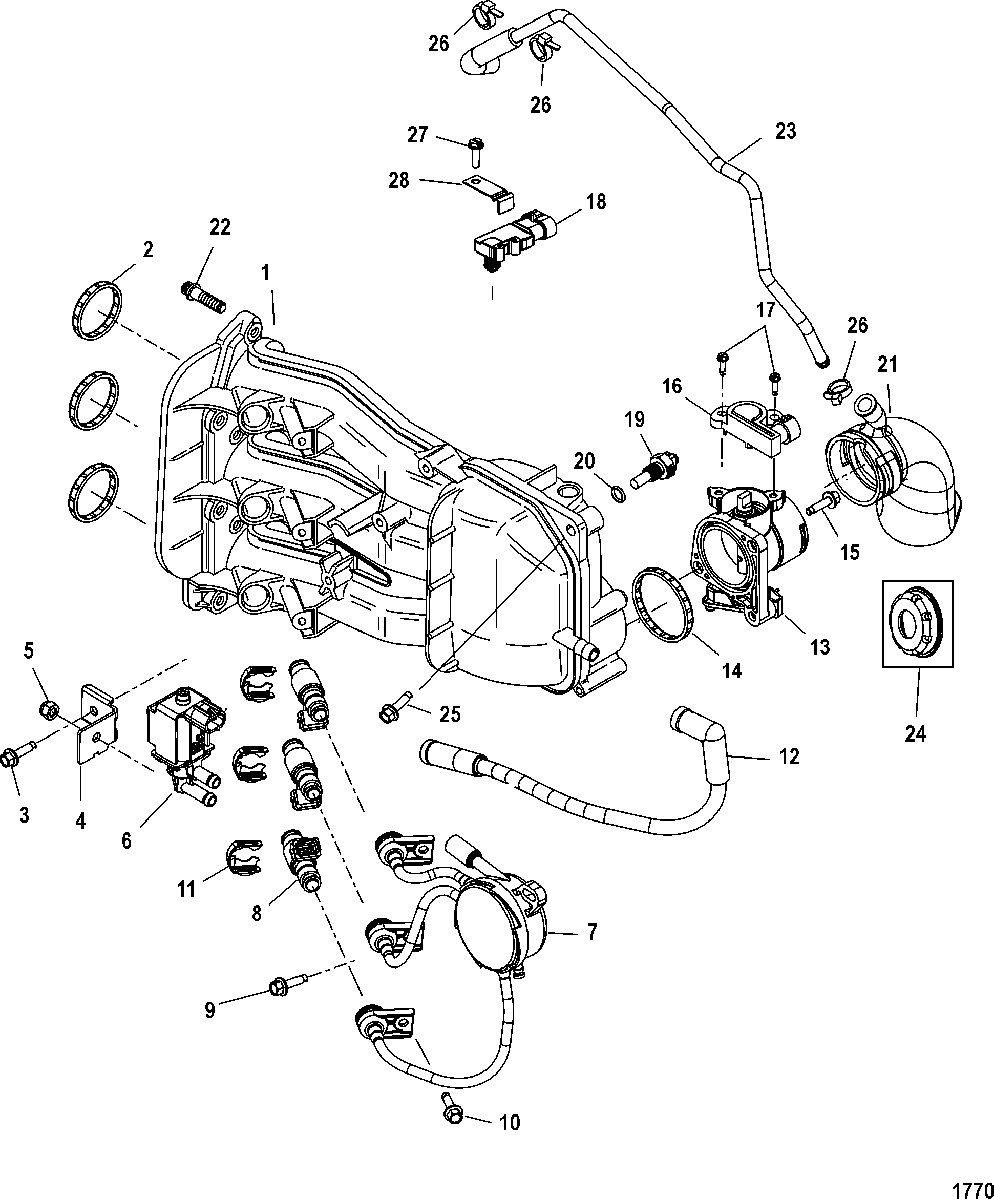

Intake Manifold для Mariner - 30 EFI (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
18M0029463 MANIFOLD, IntakeMANIFOLD, Intake
-
227-879866 GASKET SET
(Contains 4 Gaskets)GASKET SET
(Contains 4 Gaskets) -
310-881059 SCREWSCREW
-
4877834 BRACKETBRACKET
-
511-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
6877805T SOLENOID VALVESOLENOID VALVE
-
7879886T TFI SYSTEMTFI SYSTEM
-
8892123002 INJECTOR
SN# USA-0T979999/BEL-0P325499 & BelowINJECTOR
SN# USA-0T979999/BEL-0P325499 & Below -
8892123002 INJECTOR
SN# USA-0T980000/BEL-0P325500 & UpINJECTOR
SN# USA-0T980000/BEL-0P325500 & Up -
-25-883597 O-RING KIT, Injector
(UPPER)O-RING KIT, Injector
(UPPER) -
-25-883598 O-RING KIT, Injector
(LOWER)O-RING KIT, Injector
(LOWER) -
910-881059 SCREWSCREW
-
1010-881059 SCREWSCREW
-
1154-883460 CLIPCLIP
-
1232-877831A1 HOSEHOSE
-
13877831A03 THROTTLE BODYTHROTTLE BODY
-
1427-879867 GASKETGASKET
-
1510-881059 SCREWSCREW
-
168M0125617 SENSOR, PositionSENSOR, Position
-
1710-881060 SCREWSCREW
-
18854445 SENSOR, MAPSENSOR, MAP
-
19885342002 SENSOR ASSEMBLY
(BRASS HOUSING)SENSOR ASSEMBLY
(BRASS HOUSING) -
19889575 SENSOR ASSEMBLY, Temperature
(PLASTIC)SENSOR ASSEMBLY, Temperature
(PLASTIC) -
2025-896699 O-RING, (.351 x .072)
(Use with Brass Housing)O-RING, (.351 x .072)
(Use with Brass Housing) -
2025-627021 O-RING, (.301 x .070)
(Use with Plastic Housing)O-RING, (.301 x .070)
(Use with Plastic Housing) -
21893521 ATTENUATOR, SoundATTENUATOR, Sound
-
2210-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
2332-8M0115124 BREATHER HOSEBREATHER HOSE
-
248831481 RESTRICTOR
(30)RESTRICTOR
(30) -
2510-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2710-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
288M0007495 RETAINERRETAINER
-
-27-859352A02 GASKET SETGASKET SET
